Summary of Contents for BioFluidix Tek-Matic PipeJet NanoDispenser

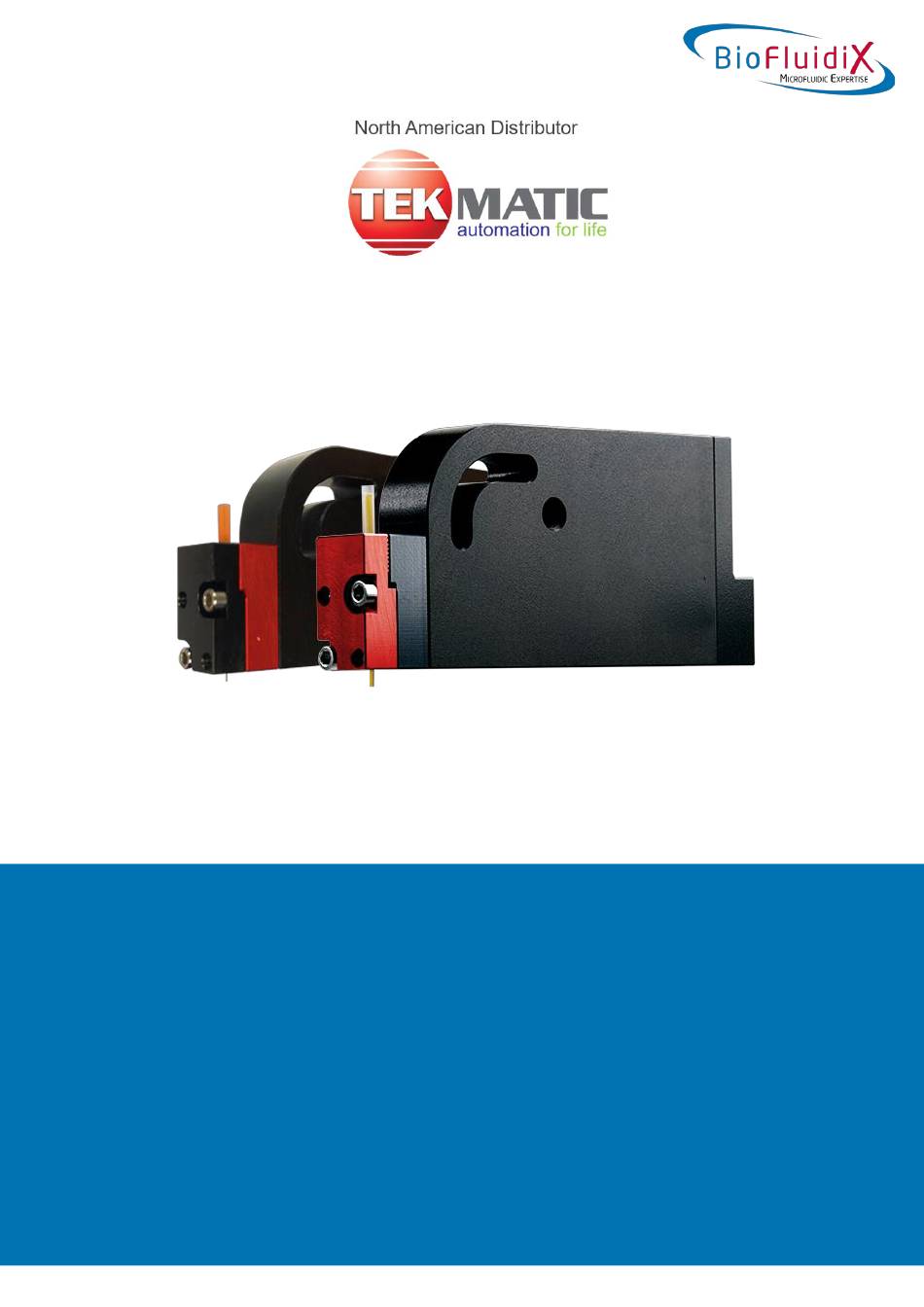

- Page 1 PipeJet ® NanoDispenser Kit HARDWARE MANUAL www.tekmatic.com 815.282.1775 insidesales@tekmatic.com...
- Page 2 Hardware manual PipeJet ® NanoDispenser Kit English Copyright 2021 BioFluidix GmbH, Freiburg. No part of this document may be reproduced without prior permission of the copyright owner. Document Version: 2.4 Publication Date: 22.07.2022 www.tekmatic.com 815.282.1775 insidesales@tekmatic.com...
- Page 3 • Extended warranty Product hands on training Call BioFluidix if you are new to the device and want an interactive product training on-site or via remote. An application specialist will explain all software functions and answer your questions. Warranty and Product Liability ®...
-
Page 4: Table Of Contents
® Nanodispenser ............................10 3.4.2 Dispensing pipes ..............................10 3.4.3 BioFluidix Control ElectroniX 200: Front Panel ..................... 11 3.4.4 BioFluidix Control ElectroniX 200: Connection Panel .................. 12 Installation and operation ........................... 13 Connecting the parts ............................13 Installation of the dispensing pipes ........................14 ®... -
Page 5: User Instructions
Use of a non-proofed medium, a medium hazardous to health, harmful to the environment medium or explosive medium. • Use of the dispenser with an unauthorized control electronic. • Use of the BioFluidix Control ElectroniX 200 for other purposes than driving the PipeJet ® SiJet or ValveJet dispensers. • Changing the original PipeJet ®... -
Page 6: Safety
• Too high environmental temperature (more than 45°C) • Only put the BioFluidix Control ElectroniX 200 in operation if the chassis is safety closed with inserted nuts and there are no visible damages like isolation damages on cables. • Only use parts provided within the shipment or order parts from BioFluidix/ your local supplier. -
Page 7: Warnings And Safety Signs
NanoDispenser Kit English Warnings and safety signs Warning - High voltage hazard! Do not open the dispenser or the BioFluidix Control ElectroniX 200! The device contains circuits which carry power supply voltage. Service and maintenance of the PipeJet ® NanoDispenser Kit is exclusively executed by BioFluidix personnel. -
Page 8: Product Description
Hardware manual PipeJet ® NanoDispenser Kit English Product description Features The PipeJet ® Nanodispenser Kit combines all essentials to get started with the first dispensing trials right after installation. It never was so easy: unbox all items, install the software, connect the control unit, insert a pipe, fill in your liquid and start with the dispensing. -
Page 9: List Of Parts
® NanoDispenser Kit English List of Parts Please make sure that the following items are included in your PipeJet® NanoDispenser Kit. If any items are missing, please contact BioFluidix. 1x PipeJet ® 1x PipeJet ® 1x BioFluidix Control ElectroniX 200... -
Page 10: Hardware Description
Hardware manual PipeJet ® NanoDispenser Kit English Hardware description 3.4.1 PipeJet ® Nanodispenser The PipeJet ® Nanodispenser is a piezo-actuated dispensing unit based on a direct volume displacement. The module is designed for the non-contact dispensing of single droplets in the range from 2 nl to 70 nl. -
Page 11: Biofluidix Control Electronix 200: Front Panel
3.4.3 BioFluidix Control ElectroniX 200: Front Panel Warning - The housing of the BioFluidix Control ElectroniX 200 is floating It can be connected to an existing potential by connecting the grounding screw. -
Page 12: Biofluidix Control Electronix 200: Connection Panel
Channel LED (12x): lights if respective dispensing channel is activated Start Button: initiates dispensing event 3.4.4 BioFluidix Control ElectroniX 200: Connection Panel Figure 5: Control ElectroniX 200 - Connection Panel (see Chapter 0 for detailed description) Power input (for provided AC Adaptor) -
Page 13: Installation And Operation
Start the BioFluidix Control ElectroniX 200 using the toggle switch. • After a flash of the red, then the orange LED at the Front panel, the BioFluidix Control ElectroniX 200 is in standby, indicated by illumination of the green Power LED only. -
Page 14: Installation Of The Dispensing Pipes
Hardware manual PipeJet ® NanoDispenser Kit English Installation of the dispensing pipes Reservoir (e.g. pipette tip) Connection tube (Tygon, approx. 80mm piece) PipeJet pipe pipe guide screw PipeJet body Pipe guide back Pipe guide front Reservoir holder (not shown, can be attached to the M4 thread, see next image) Install the reservoir holder on the side of the Prepare the PipeJet... - Page 15 Hardware manual PipeJet ® NanoDispenser Kit English Remove the dispensing pipe as described in Insert the dispensing pipe into the rear pipe guide. chapter 3.4.2 Use the ‘free space’ area. Close the PipeJet ® NanoDispenser via the front Connect the reservoir to the reservoir holder. pipe guide.
-
Page 16: Priming The Pipejet ® Nanodispenser
Hardware manual PipeJet ® NanoDispenser Kit English Priming the PipeJet ® Nanodispenser 4.3.1 Sample volume up to 1ml • Fill the liquid into the liquid reservoir. The liquid will rise in the tubing without contacting the PipeJet ® Pipe as shown on the picture. •... -
Page 17: Sample Volume < 50 Μl
Pipe cleaning BioFluidix does not guarantee the dispensing performance for manually cleaned pipes. Damage to the pipe during manual cleaning is at high probability. Certain cleaning solutions can change the surface energy of the pipes which leads to different dispensing behavior, non-proper capillary filling or wetting of the pipes. -
Page 18: Storage
10 % to 80 % rel. humidity, non-condensing Storage conditions - 10 °C to + 50 °C 5 % to 95 % rel. humidity, non-condensing Basic Settings and Details Control ElectroniX 200 6.2.1 Basic Settings of the BioFluidix Control ElectroniX 200 LoadCurrent 500 mA Offlevel 42.7 mV... -
Page 19: Connectors Of Control Electronix 200
NanoDispenser Kit English 6.2.2 Connectors of Control ElectroniX 200 RS-232 serial connector: To connect the BioFluidix Control ElectroniX 200 to the computer, a 9-pin to 9-pin null modem cable is needed. The RS232 settings are: • Bits per second: 115200 baud •... -
Page 20: Ordering Information
Hardware manual PipeJet ® NanoDispenser Kit English Ordering information 6.3.1 Dispensing units and Control ElectroniX Order no. Description PJ-30091 PipeJet ® NanoDispenser (single channel) Volume ranges from 2 nl – 70 nl CX200-1800 E ControlElectroniX CX200 Control Electronic for up to 12 dispensers 6.3.2 Dispensing pipes and accessories Order no. -
Page 21: Troubleshooting
PipeJet ® pipe. If air bubbles appear after a certain operating time, use a too small/too large/not different laboratory tubing material (e.g. PTFE, contact BioFluidix for details). reproducible - Change the PipeJet ® pipe and take care that it is correctly inserted into the Dispenser without buckling it.
