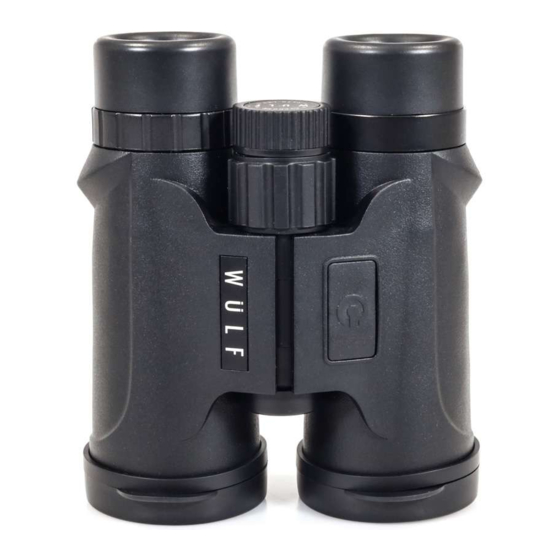

- Page 1 AVENGER 8x42 1200M LASER RANGEFINDING BINOCULAR...
-
Page 2: Table Of Contents
Overview ............3 Specification ...........4 Bino Optics Setting/Adj.........5 Accessories ..........10 Warranty ............12... -
Page 3: Overview
OVERVIEW A: Diopter E: Center Focus B: Battery Cap F: Power / RF / Scan Mode C: Twist-up Eyecup G: Objective Lens D: Strap Attachment H: Tripod Adapter Socket... -
Page 4: Specification
SPECIFICATION Range 5-1,200 meters (tree) Accuracy ±1 M(Y) Wavelength 905nm Display PCLD Body Material ABS plastic and rubber Dimension 153*128*45mm Battery CR2-3V Water Resistant IPX 4 Weight 525g (18.5 oz) Line of Sight Distance, Horizontal Function Distance, Tilt Angle Magnification Objective Lens Effec- 42mm tive Diameter... -
Page 5: Bino Optics Setting/Adj
Field of View 7° Prism Alignment Focus Center focusing adjustment Coating Multi-layer coating Warranty Lifetime WU6500 BINOCULAR OPTICS SETTING/ADJUSTMENT Adjust the Eyecups The eyecups (C) of the binocular come with a twist up and down function, so that any viewer can adjust easily to ensure a comfortable viewing experience. - Page 6 Adjust the Interpupillary Distance The interpupillary distance is the distance between the centers of the left and right eye pupils. Match the interpupillary distance of your eyes to that of the binocular so that you see a single image that is free of any shadows. Rotate the binocular barrels inward or outward to line your eyes up with the ocular lenses.
- Page 7 Properly Focus the Binocular For the best optical performance, follow the two-step process below to properly adjust the center focus and diopter of the binocular. Choose an object that is roughly 20 yards away from you and stay in the same spot until you have adjusted the binocular for your eyes.
- Page 8 2. Adjust the diopter (A) - start by closing your left eye or covering the left objective lens (G) with your hand. Look through your right eye and adjust the diopter right (found on the right eyepiece) until the object is in focus.
- Page 9 Rangefinding Aim the center reticle & press the Power/ RF button again, the line of sight distance and horizontal distance (bow compensated distance will be display on screen). Scan Mode To enter Scan Mode, press and hold the power button. The Rangefinder will continuously display distance readings as you pan across various targets.
-
Page 10: Accessories
ACCESSORIES - Carry Case - Lens Covers - Neck Strap - Bino Harness Neck Strap Attach the padded Neck Strap as shown in the 3 steps below. 1. Push a few inches of the strap through the strap attachment. 2. Hold the buckle and thread the end of the strap through the buckle. - Page 11 Note: There is a Neck Strap connection on the included Bino Harness that uses the same attachment method. Lens Protection Make use of the provided eyepiece and objective lens covers to protect the lenses when not in use. Store the binocular in its carry case for storage.
-
Page 12: Warranty
Our products are designed and manufactured to fulfill and exceed the demands of our users, and to withstand the elements, which is why we ensure each WULF item passes the strictest of quality controls. However, we know that on the rarest of...
