Summary of Contents for ALLIANCE ELEVATOR JOURNEY LULA

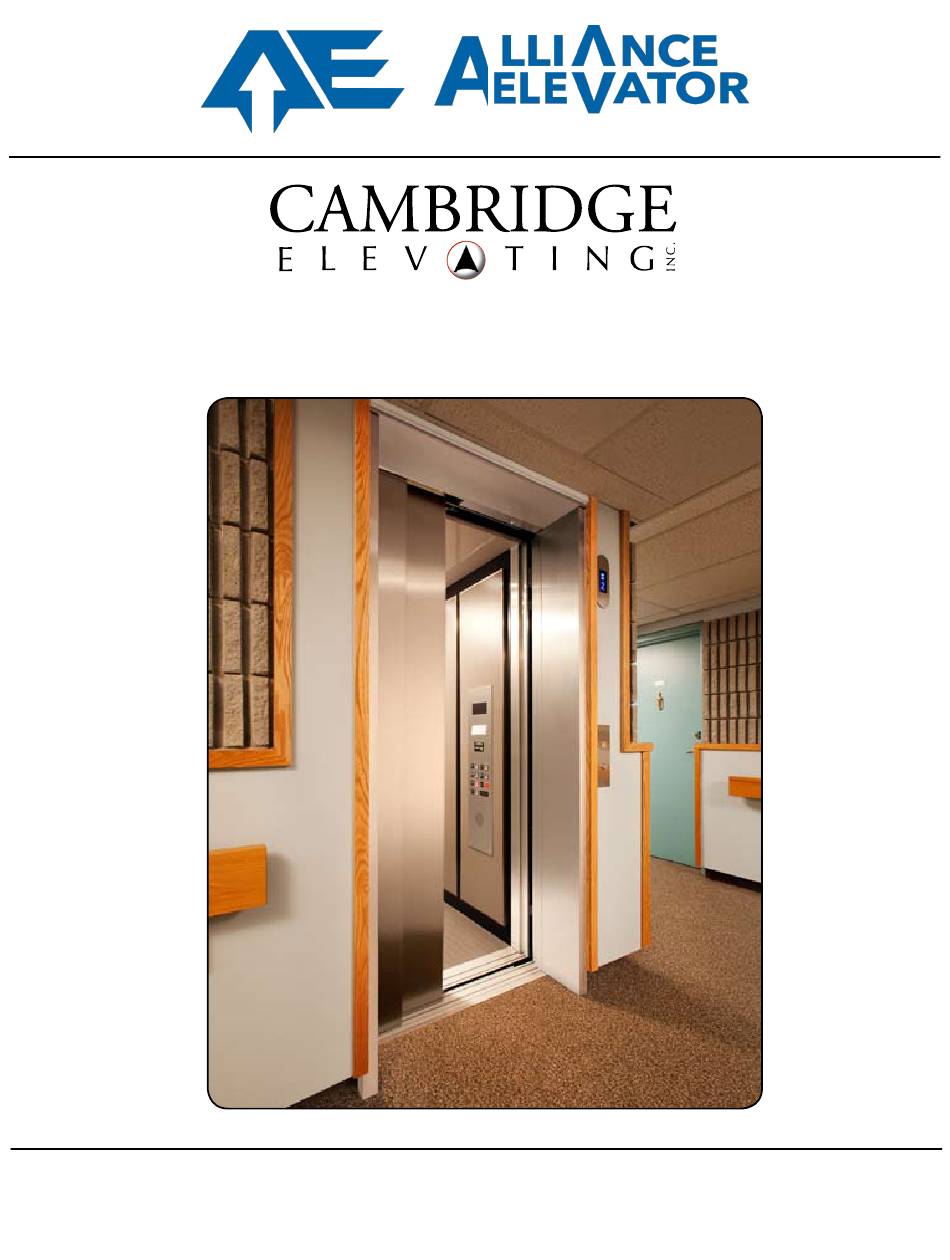

- Page 1 JOURNEY LULA Owner’s Manual (Limited Use/Limited Application) Sales | Service | Installation 80 Hill Avenue | Brantford, Ontario | N3R 4H3 | 1.877.707 5004...
- Page 3 IMPORTANT The Journey Commercial LULA Elevator must be installed, maintained and serviced by an authorized CAMBRIDGE ELEVATING INC. dealer only. Under no circumstances is anyone other than a trained and authorized Cambridge Elevating Inc. dealer to install, adjust, service or modify any mechanical or electrical device on this elevator. As the owner, you must be aware of your local elevator codes and ensuring periodic elevator maintenace.
-
Page 5: Table Of Contents
TABLE OF CONTENTS GENERAL SPECIFICATIONS Page 1 STANDARD FEATURES Page 1 - 4 OPERATING THE ELEVATOR FROM THE LANDING CONTROLS Page 5 OPERATING THE ELEVATOR FROM THE CAB CONTROLS Page 6 DOOR OPEN BUTTON Page 6 EMERGENCY BATTERY LOWERING Page 6 EMERGENCY LIGHT Page 7 EMERGENCY HANDS - FREE TELEPHONE (OPTIONAL) -
Page 7: General Specifications
GENERAL SPECIFICATIONS Load Capacity 1,400 lbs. (635 kg) Rated Speed 30 feet per minute (0.15 m/s) (Nominal) Power Supply 220 volt, 1PH, 30 amps | 208 volt, 3PH, 20 amps Drive System 1:2 Cable Hydraulic Cab Sizes: 42” Wide x 60” Deep | 48” Wide x 54” Deep | 51” Wide x 51” Deep | Custom 2 stops - 5 stops Pit Depth Required 14”... - Page 8 STANDARD FEATURES 1) Phase 2 Fire Service Keyswitch (Optional) The keyswitch in the ON position enables cab controls as per Code A17.1-2007 Section 2.27. The keyswitch in the OFF position allows for normal lift operation. The keyswitch in the HOLD position holds the doors open when the cab is at a landing.
- Page 9 STANDARD FEATURES 5) Alarm Button The button can be pressed at any time to sound the alarm in case of an emergency. 6) Emergency Light | Digital Position Indicator The COP emergency light remains ON to provide cab lighting in the event of a main power failure.
- Page 10 STANDARD FEATURES 9) Emergency Battery Operation In the event of a building power failure, the door/gate system is provided with an temporary power back up system to continue the opening operation for a number of times. On resuming normal building power, the back up system will turn OFF and begin automatic recharging. 10) Car Top Inspection Station (CTIS) The CTIS is installed on all lifts and must be operated by qualified inspectors or Cambridge Elevating Inc.
-
Page 11: Operating The Elevator From The Landing Controls
OPERATING THE ELEVATOR FROM THE LANDING CONTROLS To call Elevator to the Appropriate Level: 1) Press the CALL ELEVATOR button. The cab will automatically stop at your landing. 2) When the cab reaches the landing, the door lock on the landing door will automatically release, then if the elevator is equipped with our Automatic 2-Speed Horizontal Sliding Doors follow this procedure: a) When the elevator reaches the landing, the sliding doors will open automatically. -
Page 12: Operating The Elevator From The Cab Controls
OPERATING THE ELEVATOR FROM THE CAB CONTROLS 1) If sitting in a wheelchair, set the brake on the wheelchair wheels or, if standing, hold on to the handrail. 2) Press the appropriate floor button to “send” the cab to the desired landing. 3) When the cab reaches the landing, the door lock on the landing door will automatically release, then: If the elevator is equipped with our Automatic 2-Speed Horizontal Sliding Doors follow this procedure:... -
Page 13: Emergency Light
EMERGENCY LIGHT In the event of a main power failure, the emergency cab light will light automatically. EMERGENCY HANDS - FREE TELEPHONE 1) If your lift is equipped with an Emergency Hands-Free Telephone, press and hold down the button in the telephone box to activate the phone line. A short time delay (adjustable by the installing technician) will occur. -
Page 14: Manual Lowering Device (Machine Room)
MANUAL LOWERING DEVICE (MACHINE ROOM) 5) Obtain the special door release key and open the lower landing door. Assist the passenger(s) from the cab. 6) After the passenger(s) have exited the cab, make sure hoistway door is closed, reconnect disconnect switch inside the machine room and lock door behind you. 7) Return the key and special door release key to its original storage area. -
Page 15: Maintenance And Inspection Checks
MAINTENANCE AND INSPECTION CHECKS Regular maintenance will keep your elevator in proper operating condition. Please remember local elevator codes, as the owner of this elevator, you are responsible for making sure that maintenance and upkeep are done on a regularly scheduled basis by licensed technicians.
