CradlePoint
CradlePoint has tested and certified that the following antennas provide the best mobile broadband performance with CradlePoint
embedded and integrated modem products. These antennas work with all AER, ARC, and COR models that include an integrated
modem, but in some cases may not be optimized for all frequency bands for a particular model (see individual antenna specs).
In most cases a single antenna connected to the main (primary) antenna port will provide sufficient gain. To see "true" 4G speeds
on LTE – or better performance – 2 external antennas may be used (e.g., 2 antennas may provide 15 Mbps throughput and 1
antenna may only provide 8 Mbps throughput).

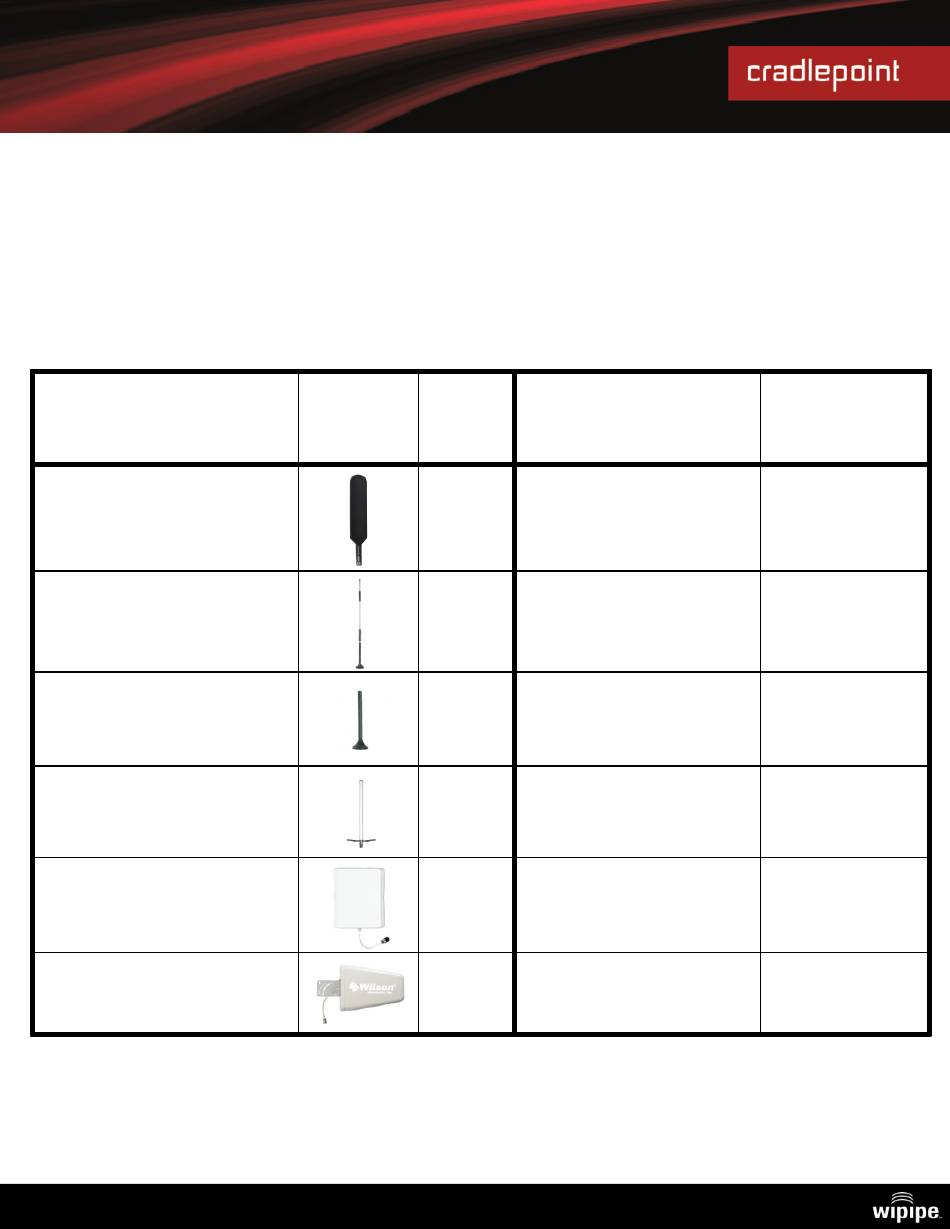

ANTENNA
Universal 3G/4G/LTE replacement
antenna w/ SMA connector
Part # 170649-000
3 dBi gain max
12" Mag-mount antenna, 12.5' cable
Part # 170605-000
6.1 dBi gain max
4" Mini mag-mount antenna, 12.5'
cable
Part # 170606-000
3.1 dBi gain max
Omni-directional Antenna
Part # 170586-000
5.1 dBi gain max
Directional Patch
Part # 170587-000
10.6 dBi gain max
Directional Yagi
Part # 170588-000
10.5 dBi gain max
©2014 CradlePoint Technology. All rights reserved. Information subject to change without notice.
Antenna Ordering and Installation
AER, ARC, and COR
MSRP
Models Supported
$14.99
All, but does not support
$44.99
2600 MHz (Europe models)
All, but does not support
$29.99
2600 MHz (Europe models)
All, but does not support
$99.99
2600 MHz (Europe models), and
poor performance for 2100 MHz
$99.99
$99.99
Guide
Connector Included?
All
(includes 12.5' cable)
(includes 12.5' cable)
No – requires separate
cable/connector
No – requires separate
All
cable/connector
No – requires separate
All
cable/connector
Yes
Yes
Yes
