Summary of Contents for Applied Research and Technology USB Mix Project Series

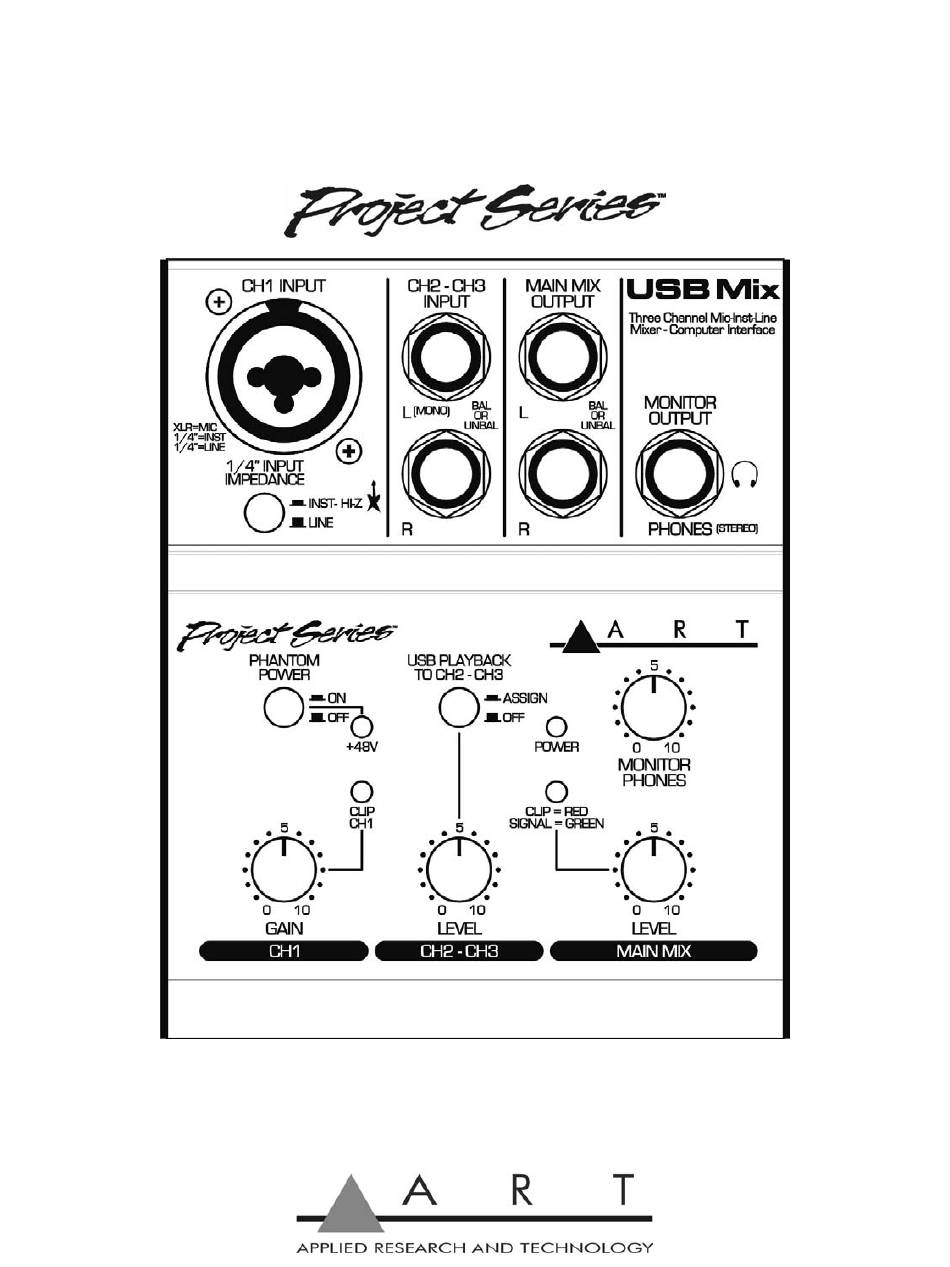

- Page 1 USB Mix Three Channel Mic-Inst-Line Mixer - Computer Interface User's Manual...
-
Page 2: Important Safety Instructions - Read First
IMPORTANT SAFETY INSTRUCTIONS - READ FIRST This symbol, wherever it appears, This symbol, wherever it appears, alerts you alerts you to the presence of uninsulated to important operating and maintenance dangerous voltages inside the enclosure that instructions in the accompanying literature. may be sufficient to constitute a risk of shock. - Page 3 OVERVIEW The ART USB Mix Three Channel Microphone, Instrument, and Line Mixer / Computer Interface is a compact versatile audio interface for your computer that converts analog signals from a variety of audio sources to a digital signal that your computer understands. It can also be used as a standalone mixer through the main mix outputs.
-
Page 4: Installation
INSTALLATION 1) Connect your audio device cables to the XLR or 1/4" TS CH1 INPUT or 1/4" TRS CH2-CH3 INPUT connectors. If you're using the CH1 INPUT with a 1/4" TS plug, next select the INST-Hi-Z or LINE setting. 2) Connect the USB Mix USB TO COMPUTER connection on the back panel to the appropriate USB input on your computer, using the supplied USB cable. -
Page 5: Main Mix Outputs
CONNECTIONS CH1 INPUT The channel one input is a combination XLR or 1/4" TS jack. The XLR input is balanced and has switchable phantom power. It is designed for microphones and other balanced output audio sources. The 1/4" TS jack is unbalanced and has switchable impedance characteristics. It is designed for line- level signals or musical instrument outputs, such as an electric guitar. -
Page 6: Controls And Indicators
CONTROLS and INDICATORS 1/4" INPUT IMPEDANCE (CH1 INPUT) This pushbutton switch controls the impedance a signal sees when connected to the CH1 INPUT 1/4" TS jack. In the LINE (out) position, the signal sees a lower impedance, suitable for line-level signals, including the outputs of keyboards, acoustic guitars with on-board preamps or bass with active pickups. -
Page 7: Usb Computer Settings
USB COMPUTER SETTINGS Once the USB connection is made and your computer is on, your computer will power the USB interfaces circuitry over the USB bus and the unit will automatically connect and try to set your computer “Default Audio Device” to be “USB Audio CODEC”. Usually the computer will do this automatically whenever a USB device is first connected, but it is sometimes necessary to make the selection manually. -
Page 8: Windows Xp
WINDOWS XP Start=>Settings => Control Panel => Sounds and Audio Devices => Audio Choose the Sound playback and recording Default device: “USB Audio CODEC” Or Programs =>Accessories =>Entertainment =>Volume Control=> Options=> Properties Choose the mixer device: “USB Audio CODEC” WINDOWS 98SE Settings =>... -
Page 9: Warranty Information
WARRANTY INFORMATION Limited Warranty Applied Research and Technology will provide warranty and service for this unit in accordance with the following warrants: Applied Research and Technology, (ART) warrants to the original purchaser that this product and the components thereof will be free from defects in workmanship and materials for a period of three years from the date of purchase. - Page 10 SERVICE The following information is provided in the unlikely event that your unit requires service. 1. Be sure that the unit is the cause of the problem. Check to make sure that the unit has power supplied, that all cables are connected correctly, and that the cables themselves are in working condition.
-
Page 11: Specifications
SPECIFICATIONS Input Connections XLR balanced / 1/4" unbalanced “Combo” jack (Ch1 input) 1/4" balanced or unbalanced (Ch2-Ch3 inputs) Output Connections 1/4" TRS balanced (Main Mix outputs) 1/4" TRS stereo (Monitor output) Input Impedance 240k Ohms (Inst-HiZ), 20k Ohms (Line) (Ch1, Ch2-Ch3 1/4" inputs) >4k Ohms (Ch1 XLR input) Output Impedance <1k Ohms (balanced 1/4"), <500 Ohms (unbalanced 1/4") - Page 12 www.artproaudio.com E-mail: cserve@artproaudio.com © 2011 Applied Research & Technology USB Mix 183-5004-101 V1.0 http://acctech.ru/cat/mikshernye_pulty/...
Need help?
Do you have a question about the USB Mix Project Series and is the answer not in the manual?
Questions and answers

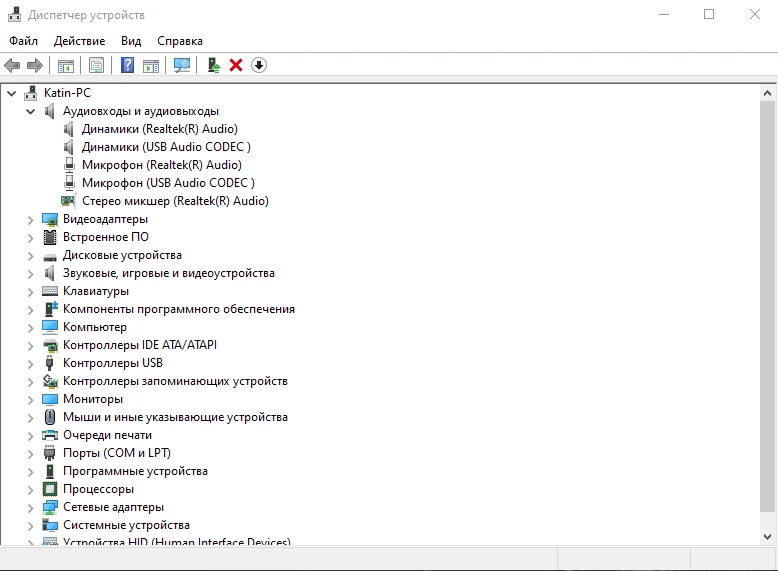

использую микшер без микрофона, у меня наушники с микрофоном с аукс входом. мне нужно юсби вход. так вот звук есть. микрофон не работает. не понимаю как настроить( может подскажите
The USB Mix Project Series mixer has a stereo 1/4" TRS headphone jack with independent level control for output monitoring. However, it does not have a dedicated input for headset microphones, which typically use a TRRS connector. To use headphones with a microphone:
1. Connect the Headphones: Plug the headphone jack into the 1/4" TRS headphone output on the mixer using a suitable adapter if needed.
2. Connect the Microphone: Use the balanced XLR microphone input or the 1/4" instrument input for the microphone signal. If the microphone requires phantom power, enable the +48V phantom power switch.
3. Adjust Levels: Use the independent input, main output, and headphone monitor controls to balance the audio levels.
4. USB Setup: Ensure the USB Mix is recognized by the computer as "USB Audio CODEC" and assigned correctly for recording and monitoring.
A TRRS headset microphone may require a separate adapter or an external audio interface to work correctly with the USB Mix.
