GMAW WELDING MACHINE
MANUAL
Vavdi Survey no. 28, Shivam Industrial Area, Street No.3 Plot No.7, Near Sunny Raj Metal,
Rajkot - 360004, Gujarat (India). Email us : sohamlathe@gmail.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Soham Impex 200

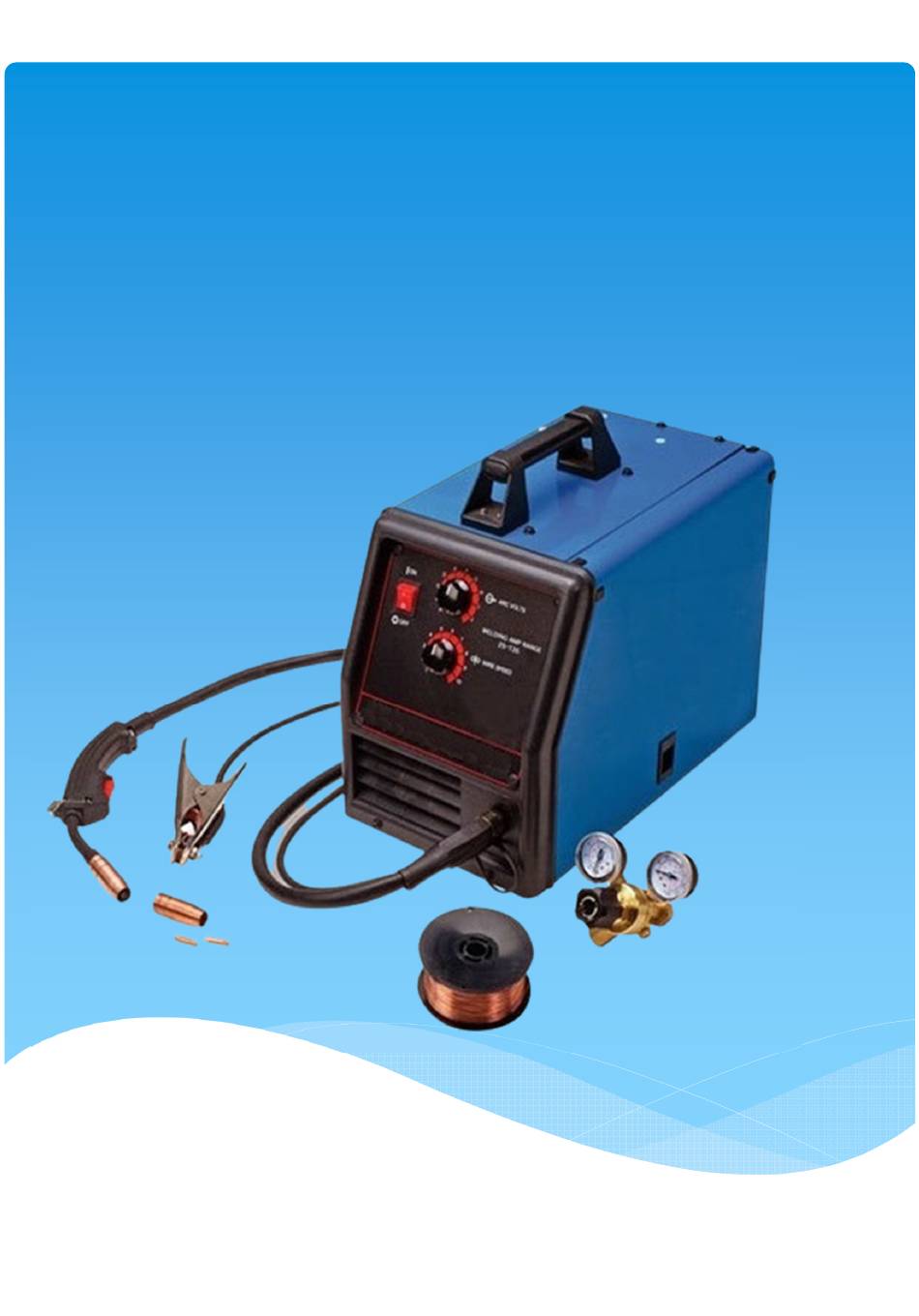

  • Page 1 GMAW WELDING MACHINE MANUAL Vavdi Survey no. 28, Shivam Industrial Area, Street No.3 Plot No.7, Near Sunny Raj Metal, Rajkot - 360004, Gujarat (India). Email us : sohamlathe@gmail.com...
  • Page 2 USER MANUAL GMAW WELDING MACHINE...
  • Page 3: Safety Notices

    Safety notices For the sake of your and other's safety, please read the manual carefully before installation or operation of the equipment! The people operating the equipment or nearby should fully know about safety measures. The safety will be fulfilled through everyone's common effort.
  • Page 4 1. Main purposes and features 1.1 Main purposes IGBT inverter gas-shielded welders of GMAW/MIG series include Model 200, 300, and 400. They are mainly applicable to CO2-shielded welding, consumable electrode argon arc-welding (GMAW/MIG), and mixed gas- shielded welding (GMAW/MAG). They conform to safety requirements...
  • Page 5: Normal Operating Conditions

    2. Normal operating conditions Environmental temperature  C ~ 40 ° ° Elevation  ≤ 1000 meters Relative humidity  At 40 C: relative humidity ≤50% ° At 20 C: relative humidity ≤90% ° Power requirements  Power supply: three-phase, 415V, 50Hz Imbalance rate of the three-phase voltage : <±0.5% Voltage fluctuation of the power grid : <±10% Frequency fluctuation : <±1%...
  • Page 6: Technical Specification

    Technical Specification GMAW WELDING MACHINE 300AMP MOSFET BASED Type of power Source MOSFET based Current capacity of GMAW welding set 300MM Current rating at 40 % Duty Cycle 340MM Current rating at 100 % Duty Cycle 210MM Welding current range 300AMP Power Input Single Phase (215 ±...
  • Page 7 4. Hoist and storage There are two handles on the top of the arc-welding rectifier for  hoisting purpose. The arc-welding rectifier and wire feeder are packed with the carton.  It can be transferred manually or with a forklift. However, be sure to avoid its hit or fall.
  • Page 8: Function Description

    6. Function description Function description of the front/rear panel of the arc-welding rectifier Name Description Amperemeter Preset and display the output current of the welder Voltmeter Preset and display the output voltage of the welder Power indicator light Indicate if the power supply of the welder is turned on/off.
  • Page 9 7. Use and operation 7.1 Preparation before use Connect the input power cable of the welder to the power grid according to the requirements. (Refer to 5. Installation and attention) Attention: The three relatively thick wires are connected respectively to the phase wire of the three-phase power supply.
  • Page 10 Attention: If the "Wire-selection" switch is put to a incorrect position, the welding current will not match with the preset value. The "Function" switch position is incorrect. When the contact tip is burned or in a poor contact, it is necessary to replace it to avoid affecting the welding stability.
  • Page 11 8. Maintenance and troubleshooting 8.1 Maintenance After the arc-welding rectifier is used for a period of time, it is necessary to remove dust and dirt in the equipment with the dry compressed air or in other way to ensure the arc-welding rectifier functions properly for a long time, and prolong its service life.
  • Page 12 Table 3: Troubleshooting Trouble Reason Remedy The power indicator The external power Check the three- light is not on and the supply has a phase- phase power fan doesn't run. There lacking fault supply circuit is no display in the The automatic air Close the voltmeter and...
  • Page 13 Attention: " Turn the equipment off immediately if any other fault occurs and can't be corrected, and give notice to our company or the local vendor as soon as possible. Be sure not to repair it on your own to avoid worsening the problem and causing unnecessary loss.
  • Page 14 10. Daily check Daily check is very important in making full use of the welder's performance and ensuring daily safe operation. In a daily check, especially see if various parts in the welding gun and wire feeder are worn away or distorted and if the gas holes are blocked. Check the following parts one by one.
  • Page 15 10.2Welding gun Part Check point Remarks Nozzle 1. Is it securely It is the reason to cause mounted? Is its gas holes front end distorted? 2. Is it stuck with the It is the reason to cause splashing? the welding gun to be damaged (using anti- splash agent is a useful way to avoid it occurring)
  • Page 16 10.3 Wire feeder Part Check point Remarks Pressing handle Is the pressing handle It will cause unstable wire adjusted to an feeding and arc. appropriate pressure- applied indicator line? (Special attention : it is strictly prohibited to damage the welding wire under 1.2mm) Wire-guide tube 1.
  • Page 17 10.4 Cables Part Check point Remarks Cable of the welding gun 1. Is the cable of the It would cause poor wire welding gun over- feeding. bended? The over-bended cable 2. Is the metal joint of would cause unstable arc. the fast plug loose? Output cable 1.
  • Page 18 The following are early diagnosis tables of common welding abnormalities. Find the problem in the abnormality columns in the upper right corner of the table. If there is a "0" under the problem, please make a check and maintenance according to related items in the table.
  • Page 19 Abnormalities Check parts and items Wire 1. Does the feeder diameter of wire-feeding reel match that of the wire-guide tube? 2. Is the wire- feeding reel cracked, or the groove blocked? 3. Is the pressing handle too tight or loose? 4.
  • Page 20 loose? 2. Is the body connector of the welding gun properly inserted and fastended? The power Broken (bending cable of fatigue) Damaged by a welding heavy object gun and the switch control cable There is oil, dirty, surface rust, and or paint condition membrane on it.
  • Page 21 10.6 Regular Check For other abnormalities not included in the "Early diagnosis of abnormalities" and "Display and handling measure of abnormalities", please find out the reason according to the following procedure and take the related handling measure. Find out the reason The power light is on, but the welder doesn’t Check if the manual switch works Check if there is the...
  • Page 22 The wire feeder doesn’t run Does the gas flow out when the manual Check if there is 24V voltage across the motor Check if the welding gun works well Replace the welding Is the wire-feeding reel The wire-feeding circuit is Check if the control stuck? damaged.
