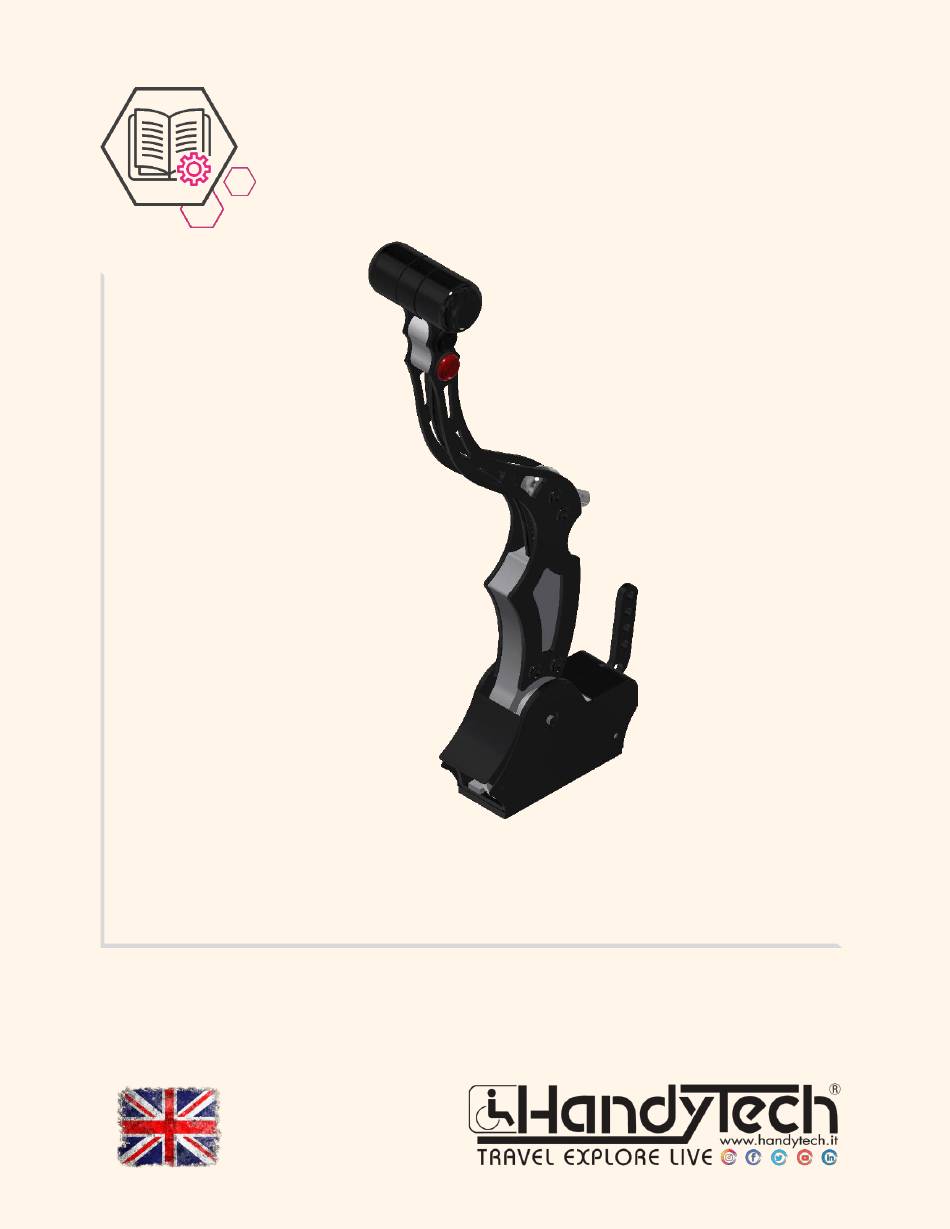

- Page 1 USER MANUAL SPEED & BRAKE SPEED & BRAKE ECO Mechanical Push&Pull...
-
Page 2: Manual Symbols
Congratulations, you have equipped your vehicle with a HT-SPEED&BRAKE / HT-SPEED&BRAKE ECO acceleration system. We hope you benefit from its use. HT-SPEED&BRAKE / HT-SPEED&BRAKE ECO is very easy to use, as indicated in the following instructions. Please read these instructions before using the device. MANUAL SYMBOLS NOTE PROCEDURE... - Page 3 It is advisable, after 2 years, in collaboration with your local Handytech Centre, to check the status of the whole system and maybe to replace some parts.
- Page 4 MOD. FT05 rev.01 HT-SPEED&BRAKE&ECO (User Manual) – Ed. 1- Update: 11/2020 3. Use on vehicle Checks ❑ After having turned on your vehicle, we recommend making sure the system works by pushing it forward (braking) and pulling back (accelerating). Press the black button, if present, (Picture 1) to make sure the horn works (after you’ve ascertained that you are not in an area where traffic laws do not allow it).
- Page 5 MOD. FT05 rev.01 HT-SPEED&BRAKE&ECO (User Manual) – Ed. 1- Update: 11/2020 Putting the vehicle in motion ❑ After having run the checks, push the brake lever forward, press the red button if present and reduce pressure on the lever before releasing it. At this point, the lever is locked and you can engage the gear and in case of ECO version, the lever must be kept in position by the driver.
- Page 6 MOD. FT05 rev.01 HT-SPEED&BRAKE&ECO (User Manual) – Ed. 1- Update: 11/2020 Able-bodied people using the vehicle ❑ The vehicle’s original brake and accelerator can be used normally with your feet. Let the user know about the SPEED & BRAKE / SPEED & BRAKE ECO system as, in some cases, as shown in Picture 3, it can partially interfere with the normal driving movements of an able-bodied user.
- Page 7 Make sure you haven’t accidentally left the lever locked: if you have, release it. 2. The brake lock does not engage when the red button is pressed There may be an issue with the lock’s electrical system or a mechanical issue; go to a Handytech Centre to repair the problem.
- Page 8 MOD. FT05 rev.01 HT-SPEED&BRAKE&ECO (User Manual) – Ed. 1- Update: 11/2020 MAINTENANCE TO BE DONE EXCLUSIVELY BY HANDYTECH DEALERS First check: Km. 1,500 • Check if the horn is properly working. • Check the brake drum operation. • Check locking and sliding.
- Page 9 Check for proper operation as the vehicle is moving PAY ATTENTION: After 2 years, it is also advisable, along with your trusted Handytech Centre, to check the system condition and replace any parts that need to be replaced. We remind you that once the warranty expires, the maintenance program is at your discretion, but we recommend following it scrupulously, as neglecting it could cause system anomalies and inconveniences, in addition to being dangerous while driving.
- Page 10 MOD. FT05 rev.01 HT-SPEED&BRAKE&ECO (User Manual) – Ed. 1- Update: 11/2020 RESERVED TO INSTALLERS Installer’s Notes Other useful info - 8 -...
- Page 11 Trademark of CARROZZERIA 71 Srl Strada Patro 3 14036 - Moncalvo - Italy Tel: +39 (0)141-917665 / Fax: +39 (0)141-923979 info@handytech.it www.handytech.it Dealer Problems during your trip? Check the Handytech Network...
