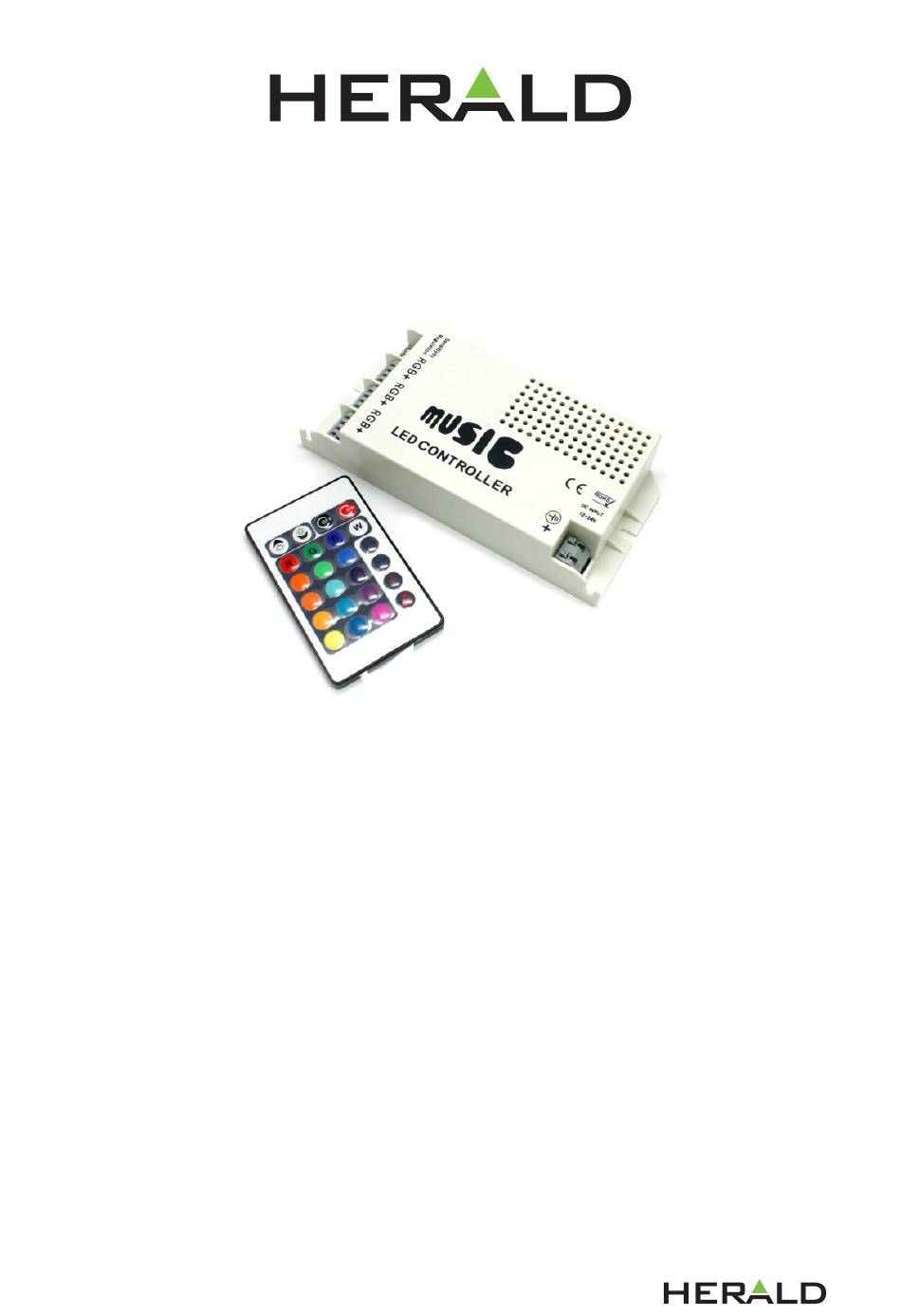

RF Music Controller with Remote
Item Model: H-RGBC-24IRS
Have your LED lights flash or fade to the beat of music with this LED light controller. It uses
12V input power and has 3 output ports for RGB colour changing strips. Easily control your
colour changing LED strips via the IR wireless remote. You can choose between 15 solid
colours, solid white, flashing, fading, 2 music modes, adjust brightness, and on/off.
This controller is perfect for controlling our RGB strips or RGB colour changing bulbs.
Before installing this product, please read this manual carefully to ensure full
understanding of the specification to avoid unnecessary damage.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-RGBC-24IRS and is the answer not in the manual?

Questions and answers

Summary of Contents for HERALD H-RGBC-24IRS

  • Page 1 RF Music Controller with Remote Item Model: H-RGBC-24IRS Have your LED lights flash or fade to the beat of music with this LED light controller. It uses 12V input power and has 3 output ports for RGB colour changing strips. Easily control your colour changing LED strips via the IR wireless remote.
  • Page 2 Directions for use The supply voltage for this product is DC 12V-24V, never connect to a mains voltage. • Always connect the load first then apply the power taking care not to short circuit. • Lead wires should be connected according to the connection diagram. •...
  • Page 3 External dimensions: Controller Remote Control...
  • Page 4 Interface Specifications: Standard DC Power input Load output Interface:...
  • Page 5 Remote Control Instructions: Button Function Turn ON Turn OFF In static mode: brightness - in dynamic mode: speed - In static mode: brightness +, in dynamic mode: speed + Hot key for 16 kinds of static colour, brightness are adjustable Dynamic model: seven colour jump to change, can adjust the rate of change Dynamic model: seven colour fade, can adjust the rate of change...
  • Page 6 Acoustic modes：will flash and switch between 16 colours according to the rhythm of the music, if NO music will be NO light (the sounds sensitivity can be adjusted by the induction resistance) Acoustic modes：will fade and switch between 16 colours according to the rhythm of the music, if NO music will be NO light (the sounds sensitivity can be adjusted by the induction resistance)
