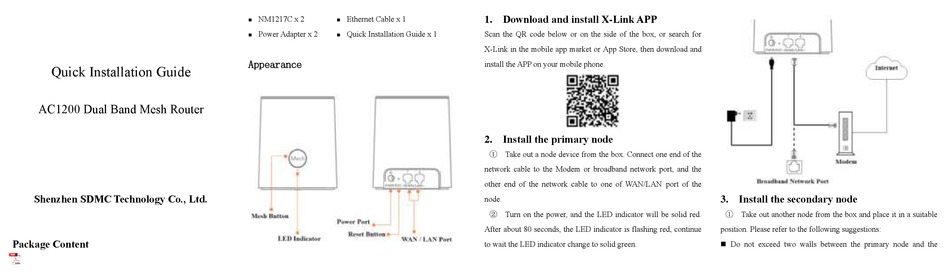

SDMC NM1217C Quick Installation Manual

Quick Installation Guide
AC1200 Dual Band Mesh Router
Shenzhen SDMC Technology Co., Ltd.
Package Content
NM1217C x 2 Ethernet Cable x 1
◼ ◼
Power Adapter x 2 Quick Installation Guide x 1
◼ ◼
Appearance
1. Download and install X-Link APP
Scan the QR code below or on the side of the box, or search for
X-Link in the mobile app market or App Store, then download and
install the APP on your mobile phone.
2. Install the primary node
① Take out a node device from the box. Connect one end of the
network cable to the Modem or broadband network port, and the
other end of the network cable to one of WAN/LAN port of the
node.
② Turn on the power, and the LED indicator will be solid red.
After about 80 seconds, the LED indicator is flashing red, continue
to wait the LED indicator change to solid green.
3. Install the secondary node
① Take out another node from the box and place it in a suitable
position. Please refer to the following suggestions:
◼ Do not exceed two walls between the primary node and the
