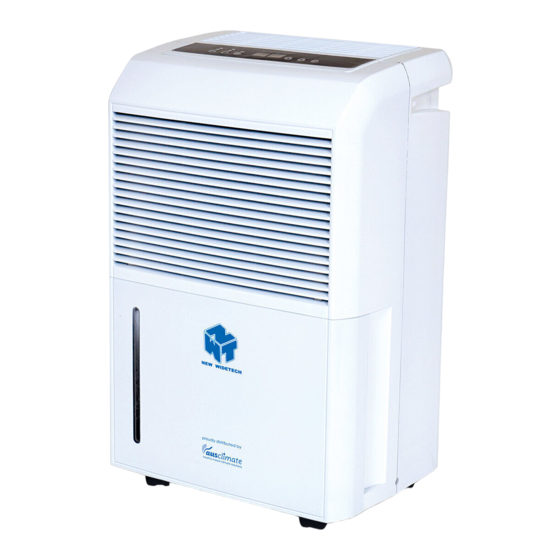

WDH-930DA
WARNING · · · · · · · · · · · · · · · · · · · · · · · · · ·
· · · · · · ·
2-3
CAUTIONS · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4-5
FUNCTION EXPLANATION · · · · · · · · · · · · · · · · · · · · · · 6
CASTOR INSTALLATION · · · · · · · · · · · · · · · · · · · · · · · · 7
CONTINUOUS DRAINAGE OPTIONS · · · · · · · · · · · · · · 8
SPECIFICATIONS · · · · · · · · · · · · · · · · · · · · · LAST PAGE
Advertisement
Table of Contents
Related Manuals for AusClimate WDH-930DA
Summary of Contents for AusClimate WDH-930DA
-

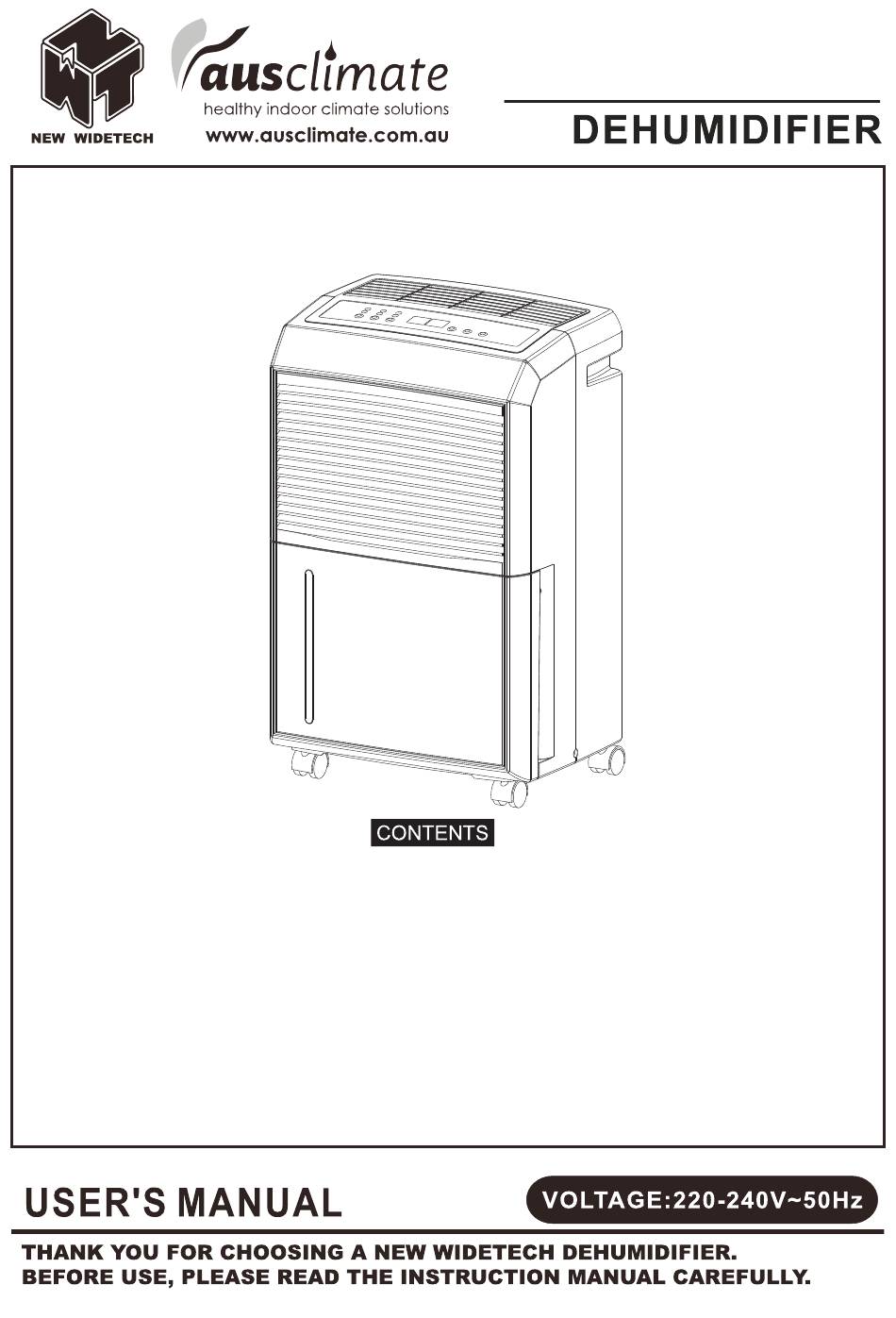

Page 1: Table Of Contents
WDH-930DA WARNING · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · CAUTIONS · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4-5 DESCRIPTION OF COMPONENTS / FUNCTION EXPLANATION ·... -
Page 2: Warning
WARNING • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 3 WARNING Additional warnings for appliances with R290 refrigerant gas (refer to the rating plate located at rear of the appliance for the type of refrigerant gas used). READ THE MANUAL CAREFULLY BEFORE USING THE APPLIANCE • R290 refrigerant gas complies with European environmental directives. •...
-
Page 4: Cautions
CAUTIONS Make sure the plug is Do not use multiple Do not fold the power cord as shown below. placed fully & firm into sockets as shown below. the socket. Make sure the plug Do not have wet hands After turning the unit off, is clean. - Page 5 CAUTIONS Do not pull the power cord, Do not use insect, oil or paint spray which may break and cause danger. around the machine. They might cause damage to the plastic parts or start a fire. Do not place the machine on uneven ground.
-
Page 6: Description Of Components
DESCRIPTION OF COMPONENTS CONTROL PANEL DEHUMIDIFIED DRY AIR VENT HANDLE AIR FILTER MOIST AIR INTAKE CONTINUOUS DRAINAGE OUTLET DRAIN BUCKET ROLL CASTORS FUNCTION EXPLANATION Press the ℃ ℉ switch buttons, it will switch at sequence of ℃ ℉... -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Start Operation 1) Place the product dehumidifier in an upright position on a flat, stable, heat resistant surface. Make sure there is nothing flammable or heat sensitive within 100 cm. 2) Insert the dehumidifier’s power plug into a suitable wall socket with electricity supply the same voltage depicted on the unit’s rear rating label. -
Page 8: Continuous Drainage Options
CONTINUOUS DRAINAGE OPTIONS The continuous drainage function can be started in the following steps when there is suitable conditions for drainage near the dehumidifier. 1. To save having to periodically empty the water Back of the unit Drain hose tank, this unit can be configured for continuous drainage. - Page 9 TROUBLESHOOTING If a problem occurs, switch off and unplug the dehumidifier immediately. For all troubleshooting please refer to Ausclimate.com.au and if you have any further issues please contact Ausclimate support. For you own safety do not disassemble the dehumidifier in any way.
-
Page 10: Maintenance / Troubleshooting / Warranty
INSTRUCTION FOR REPAIRING APPLIANCES CONTAINING R 290 AUTHORISED PERSONS ONLY! 1. Checks to the area Prior to beginning any authorised work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. The following precautions shall be complied with prior to conducting work on the system. - Page 11 INSTRUCTION FOR REPAIRING APPLIANCES CONTAINING R 290 AUTHORISED PERSONS ONLY! - that capacitors are discharged; this shall be done in a safe manner to avoid possibility of sparking. - that there are no live electrical components and wiring are exposed while charging, recovering or purging the system;...
- Page 12 INSTRUCTION FOR REPAIRING APPLIANCES CONTAINING R 290 AUTHORISED PERSONS ONLY! Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process. 15. Removal and evacuation When breaking into the refrigerant circuit to make repairs – or for any other purpose – conventional procedures shall be used.
- Page 13 INSTRUCTION FOR REPAIRING APPLIANCES CONTAINING R 290 AUTHORISED PERSONS ONLY! f) Make sure the cylinder is situated on the scales before recovery takes place. g) Start the recovery machine and operate in accordance with manufacturer's instructions. h) Do not overfill cylinders. (no more than 80% volume liquid charge). i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
-
Page 14: Specifications
SPECIFICATIONS WDH-930DA 495 W 0.125 kg TUV approval Certificate No.: TUV-026151-EA 340 x 250 x 545 mm 14.5 kg Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check your local authority of retailer for recycling advice.
