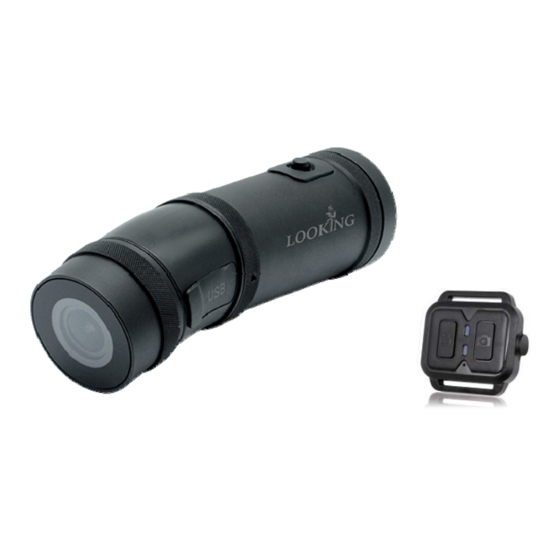

Summary of Contents for Bisado Technologies LOOKING DB-1

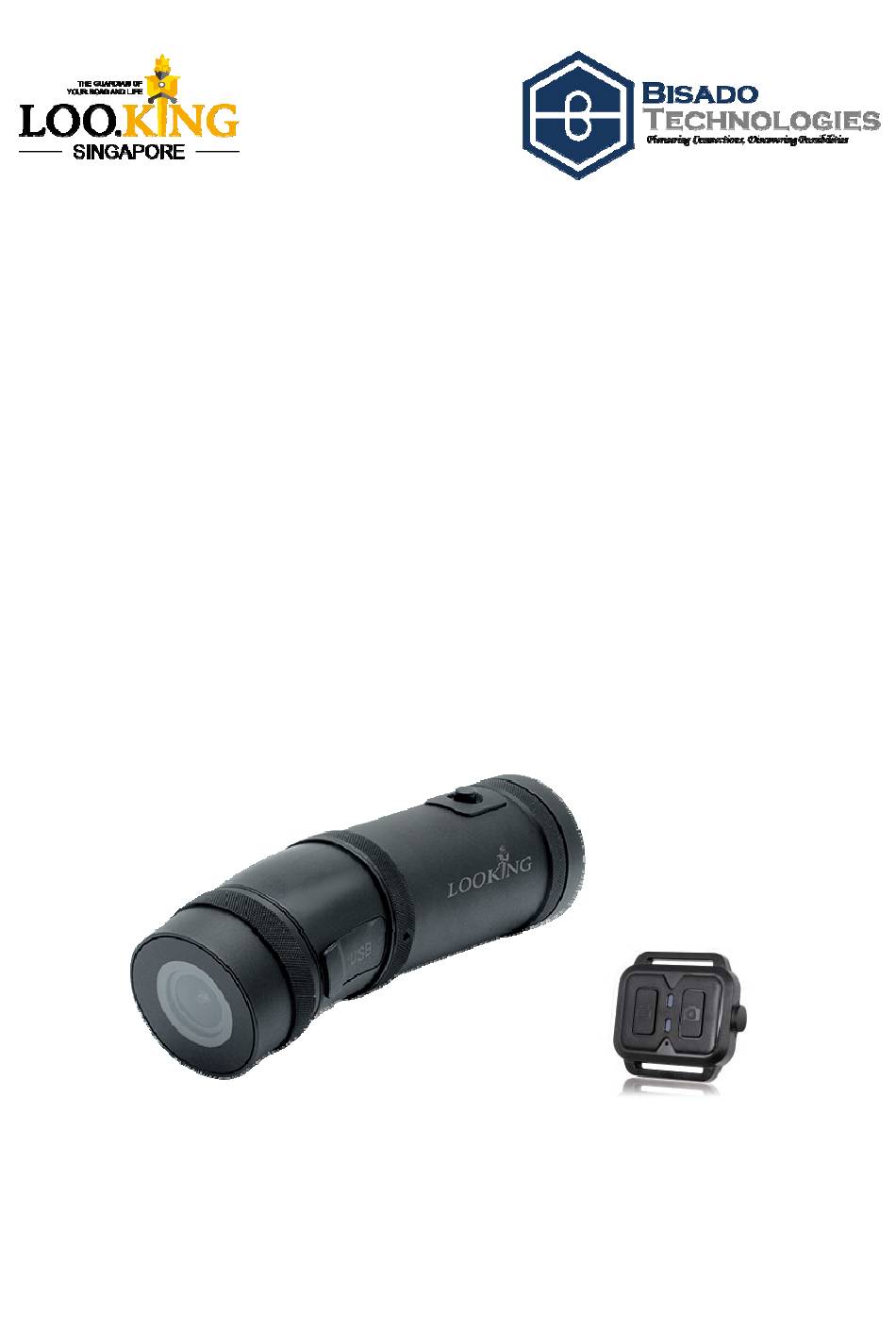

- Page 1 DB-1 Userʼs manual All-in-one portable dual channel motorcycle helmet camera Version 2.3...
- Page 2 Product Specification Sensor SONY IMX307 Aperture F1.8 Lens Angle Front: 140° / Rear: 140° Photo JPG Max. 2M Video MP4 H.264 Resolution FHD 1920 X 1080P 30fps Dual-Channel HD 1280 X 720P 60fps Dual-Channel Battery 1600 mAh PS：150 minutes working time at full charge. Size / Weight 110 X 40 X 33 mm / 104g Memory card...
- Page 3 Key buttons 1. Press & hold power button 3 seconds to turn on/off the power. 2. Press once to start/stop recording. 3. Double tap to turn on/off the WIFI. 4. Press power button 5 times to format the SD card (Camera Wi-Fi in off mode, Recording in stop mode) Operations Charging the Battery...
- Page 4 2. Press and hold the power button for 3 seconds to turn on the dashcam, and it will vibrate once. 3. When the dashcam is turned on, the recording light (white light) remains on, and it will automatically enter the recording mode. The white light will flash during recording. 4.
- Page 5 Intelligent Energy-saving System 1. In the normal recording mode, when the dashcam stays static for 3 minutes, it will automatically off to save power. 2. When the external power supply is connected, the energy-saving system will not work. Wireless Controller (Optional) 1.
- Page 6 default WIFI name is DB1+SSID****，default password is 12345678. Please do not change the WIFI name nor the password to avoid any connection error. 3. When the device is connected to the phone successfully, you may open the APP to view it. By using the APP you can start/stop recording, take photos and playback.
