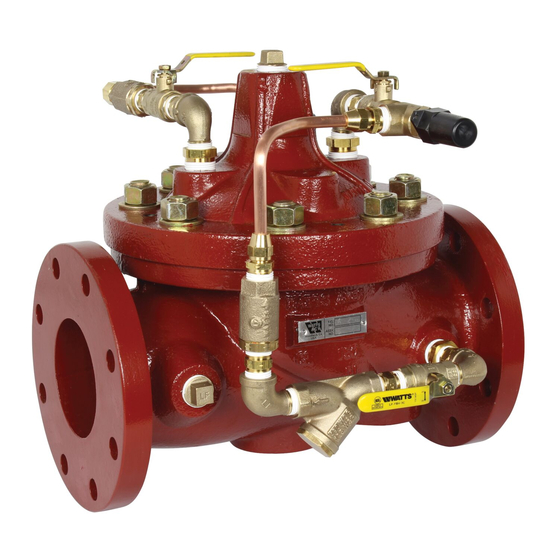

Non-surge check valve (4" and smaller)

Advertisement

Quick Links

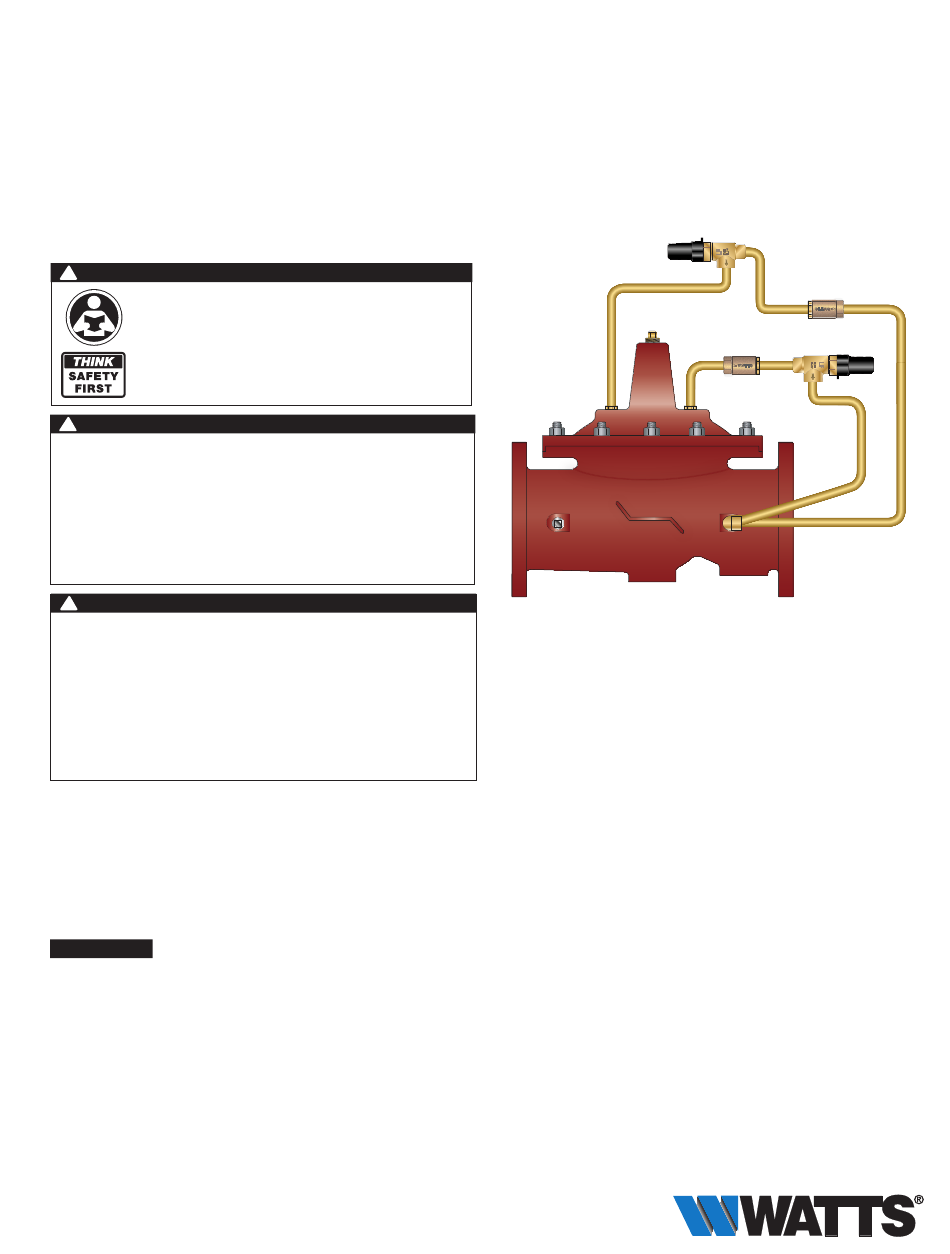

Installation, Operation and Maintenance
Model LFM118-3 / LFM6118-3
Non-Surge Check Valve (4" and Smaller)
Sizes: 11/4" to 24"
WARNING
!
Read this Manual BEFORE using this equipment.
Failure to read and follow all safety and use information
can result in death, serious personal injury, property
damage, or damage to the equipment.
Keep this Manual for future reference.
WARNING
!
Local building or plumbing codes may require modifica-
tions to the information provided. You are required to
consult the local building and plumbing codes prior
to installation. If the information provided here is not
consistent with local building or plumbing codes, the
local codes should be followed. This product must be
installed by a licensed contractor in accordance with
local codes and ordinances.
WARNING
!
Need for Periodic Inspection/Maintenance: This product
must be tested periodically in compliance with local codes,
but at least once per year or more as service conditions
warrant . All products must be retested once maintenance
has been performed . Corrosive water conditions and/or
unauthorized adjustments or repair could render the product
ineffective for the service intended . Regular checking and
cleaning of the product's internal and external components
helps assure maximum life and proper product function .
NOTICE
For Australia and New Zealand: Pipeline strainers should be
installed between the upstream shutoff valve and the inlet of
the backflow preventer.
It's important that this device be tested periodically in compli-
ance with local codes, but at least once per year or more as
service conditions warrant. If installed on a fire sprinkler system,
all mechanical checks, such as alarm checks and backflow
preventers, should be flow tested and inspected internally in
accordance with NFPA 13 and NFPA 25.

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Setting the Check Control Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Trouble Shooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Valve Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . 8
ACV Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
IOM-ACV-118-3_6118-3
Page

Advertisement

loading
Need help?

Need help?

Do you have a question about the LFM118-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Watts LFM118-3

  • Page 1: Table Of Contents

    IOM-ACV-118-3_6118-3 Installation, Operation and Maintenance Model LFM118-3 / LFM6118-3 Non-Surge Check Valve (4" and Smaller) Sizes: 11/4" to 24" WARNING Read this Manual BEFORE using this equipment. Failure to read and follow all safety and use information can result in death, serious personal injury, property damage, or damage to the equipment.
  • Page 2: Installation

    LFM118-3 (Globe) Non-Surge Check Valve (4" and Smaller) Standard Components 1 - Main Valve (M100 – Single Chamber) 2 - Check Valve 3 - Adjustable Opening Speed 4 - Adjustable Closing Speed Operation The Automatic Control Valve (ACV) Non-Surge Check Valve is designed to control pipeline surges caused by flow reversal by slowly opening and closing at separate adjustable rates.
  • Page 3: Setting The Check Control Valve

    Air is vented through the air bleed valve. Tighten the fitting when liquid begins to vent (See Figure 1). STEP 4 Slowly open downstream isolation valve to establish flow through the system. Figure 1 Position Indicator IOM-ACV-118-3_6118-3 2115 EDP#1917119 © 2021 Watts...
  • Page 4 If the downstream pressure fluctuates slightly above the desired set point, adjust- ment screw OUT, counterclockwise, increasing the rate of closing. IOM-ACV-118-3_6118-3 2115 EDP#1917119 © 2021 Watts...
  • Page 5: Maintenance Schedule

    Automatic Control Valve Maintenance Schedule To ensure peak performance and longevity of your automatic • Annual Maintenance control valve, Watts/Ames recommends following the below – Conduct monthly & quarterly inspections. standard maintenance schedule. – Inspect & clean all strainers. • Monthly Maintenance –...
  • Page 6 Improperly configured closing speed Adjust closing speed control Standard setting for control. to verify functionality, adjust as closing speed control is required. 11/2 - 21/2 turns open from full closed position. Can be adjusted in field. IOM-ACV-118-3_6118-3 2115 EDP#1917119 © 2021 Watts...
  • Page 7: Valve Disassembly Instructions

    5. Before removing Stem Nut, examine stem threads for mineral build-up. Remove deposits with a fine wire brush. Extreme care should be taken not to damage the finish on stem guiding surfaces when disassembling. Avoid applying pipe wrenches to top or bottom stem guide surfaces. IOM-ACV-118-3_6118-3 2115 EDP#1917119 © 2021 Watts...
  • Page 8 E Dia. 4 Holes Angle or 90 Apart Nut and Washer Channel Iron 2PLCS All-Thread B (Min) C TYP <3 PLCS> Valve Seat Valve Body D TYP <3 PLCS> 120 Apart Figure 4 Figure 3 IOM-ACV-118-3_6118-3 2115 EDP#1917119 © 2021 Watts...
  • Page 9 11. Test the integrity of the Seat Seal by following the Seat Seal Test procedure in previous section. 12. Return valve to service by following instructions on the Technical Bulletin matching the valve function. IOM-ACV-118-3_6118-3 2115 EDP#1917119 © 2021 Watts...
  • Page 10 ACV Assembly Diagram – Series LFM118-3 NOTICE Installation: If unit is installed in any orientation other than horizontal (cover up) OR extreme space constraints exist, consult customer service prior to or at the time of order. Item Description Material Pipe Plug...
  • Page 11 NOTES IOM-ACV-118-3_6118-3 2115 EDP#1917119 © 2021 Watts...
  • Page 12 Limited Warranty: Watts Regulator Co. (the “Company”) warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge.
