- Page 1 Phredo Peace of mind Phredo - Double Phredo edition Manual and Phredo SP-SPE 30062018 and installation pH or Redox regulation or Doser DESIGNED AND MANUFACTURED IN FRANCE SINCE 1989...
-
Page 2: Precautions Of Use
Precautions for use Advisory Security Phredo is an electrical device that must not - Make sure that the power supply voltage of be exposed to rain or moisture. the device does not exceed 240v AC, or To correct the pH, never use hydrochloric 50Hz. -
Page 3: Table Of Contents
Fixation - Device connections PH and redox probes Settings before getting started Getting started The pH function The redox function The dosage function Calibration and Setpoint The pH function The redox function and Doser Phredo SPE Piloting an electrolyser Control of the functions... -
Page 4: Location Of Control System

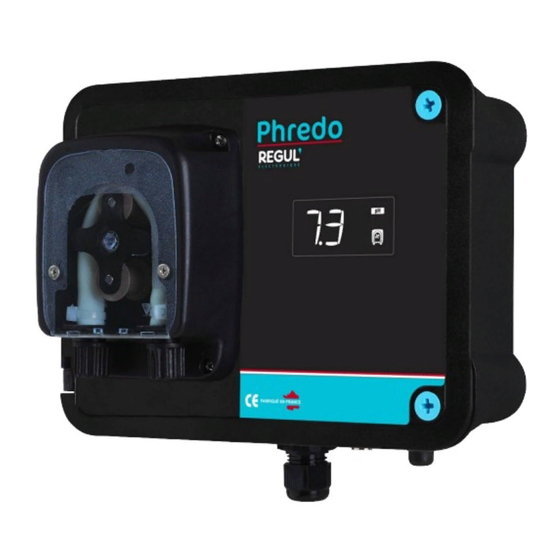

Location of control systems Front view Digital display screen Enclosure screws Peristaltic pump Suction inlet Injection output On / Off switch BNC probe Power supply 240VAC Classe II - câble 2 x 1,5mm² Checks to be carried out before starting up the device - The pH must be between 7.2 and 7.4. -
Page 5: Content Of The Box
Content of the box Check the package to make sure it contains the following : Installer's manual Template The Phredo Probe fixation Dowels and Support collars fixing screws injector flexible rigid aspiration injection suction ballast crystal tube opaque tube Accessories... - Page 6 Installation of the machine Fixation Phredo is supplied with a drilling template to simplify its placement. In order to maintain the performance and reliability of the device, provide the necessary space between it and the nearest obstacles. Plaque de gabarit des appareils Régul’...
-
Page 7: Ph And Redox Probes
1 - Install the support collar on the piping. 2 - Screw the probe holder. 3 - Screw the probe firmly with your hand and plug it on the Phredo connector to its BNC plug (page5) Installation of injection system... -
Page 8: Settings Before Getting Started
One of these segments is displayed when one of the functions, This symbol indicates the state of the injection pump. It also indicates the control of an electrolyser, in the case of a Phredo SPE, ORP or a Xsel REDOX... -
Page 9: Getting Started
Getting started Function pH Settings required for the first start of the device Start For one second all lights of the display are on. Software version For one second the software version is displayed lasts: 1s Countdown Then a countdown of 60 seconds starts, during which it is possible to modify the following options. -
Page 10: The Redox Function
Function Redox Settings required for the first start of the device Start For one second all lights of the display are on. Software version For one second the software version is displayed Lasts: 1s Countdown Then a countdown of 60 seconds starts, during which it is possible to modify the following options. -
Page 11: The Dosage Function
Function Dosage Settings required for the first start of the device Start For one second all lights of the display are on. Sofware version For one second the software version is displayed lasts: 1s Countdown Then a countdown of 60 seconds starts, during which it is possible to modify the following options. -
Page 12: Calibration And Setpoint
Calibration and Setpoint Function pH Phredo processes the information measured by the pH probe and manages the injection pH- (or pH +) depending on the setting chosen. The adjustment of the injection set point makes it possible to regulate the pH and the redox to a desired value. -
Page 13: The Redox Function And Doser
Function Redox Redox measurement Calibration clic Long ORP flashes Adjust clic Long standard (470) Volume of the pool clic example : 75 ORP flashes Adjust clic Long from 0 to 999m3 basis : 50 Setpoint clic ORP flashes Adjust clic Long 200 to 900mv basis : 650... -
Page 14: Phredo Spe Piloting An Electrolyser
Phredo SPE - Piloting an electrolyser The Phredo is equipped with a relay allowing to control a pump of big flow or piloting a electrolyseur for an indoor swimming pool. Phredo SPE can control the chlorine production of an electrolyser by measuring redox in order to maintain a properly disinfected water. -
Page 15: Control Of The Functions
Control of the functions Information How to remove the santoprene tube: Important, for the after-sales service of a device with a pH pump, it is essential to remove the santoprene tube to avoid spraying acid into the box during transport. - Remove the glass - Pull the left soproprene tube to release it Pulling the tube will turn the pump manually.
