Summary of Contents for Jepson POWER Magpro40 1S

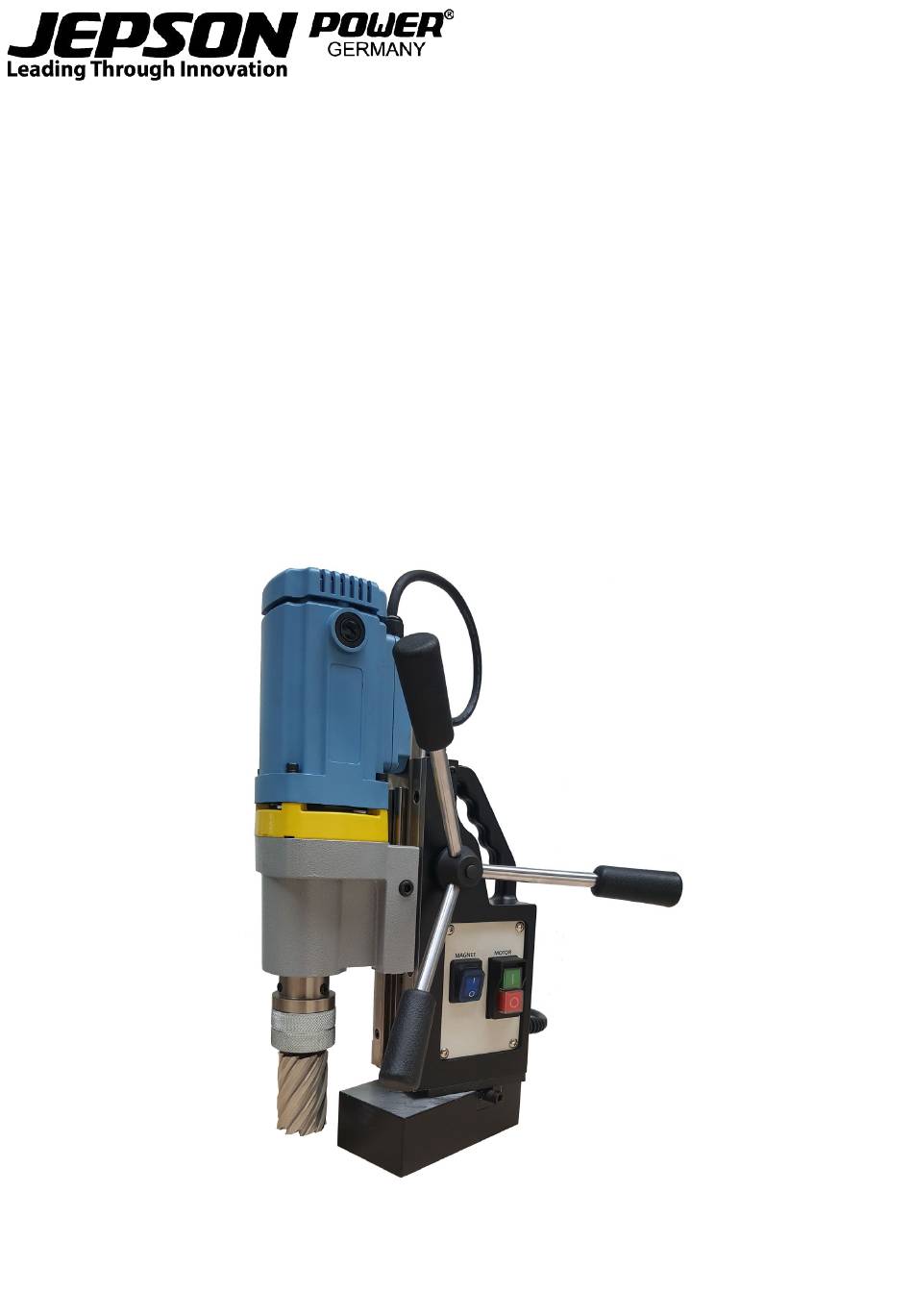

- Page 1 Magnetic Dr i l li ng M achi ne MAGPRO 40/ 1S Adjust Swivel OPERATOR'S MANUAL...
- Page 2 EC Declaration of Conformity according to EC Machinery Directive 2006/42/EC We, Jepson Power GmbH Ernst-Abbe-Straße 5 52249 Eschweiler Germany declare under our sole responsibility that the product Electromagnetic Drilling Machine Product Type Designation(s): MAGPRO 40/1S Adjust Swivel Serial No. Year of Manufacture : 2019 to which this declaration relates is in conformity with the following standard(s) or other normative document(s);...
-
Page 3: Contents Of The Manual
CONTENTS OF THE MANUAL. Page SPECIFICATIONS OF MAGNETIC DRILLING MACHINE SAFETY PROCEDURES OPERATING INSTRUCTIONS EXTENSION CABLE SELECTION MOUNTING OF CUTTERS REMEDIES FOR HOLE MAKING PROBLEMS CIRCUIT PART LIST Check List of Contents with Magnetic Drill Unit List Operator's Manual YES/NO Coolant Bottle YES/NO Pilot Pin for 25mm cutters... - Page 4 MAGPRO 40/ 1S Adjust Swivel (Ref.: 490140S) - 2 -...
- Page 5 [1] SPECIFICATIONS OF MAGNETIC DRILLING MACHINE [MODEL Magpro40/ 1S Adjust Swivel, Reference: 490140S] Maximum hole cutting capacity in .2/.3C steel = 40mm dia. x 50mm depth Motor Unit Voltages 220/240V(100/110V), 50/60Hz Rated output 1,100 W Magnet Size 155 x 78 x 45 mm Magnet Force at 20°C with 20 mm minimum plate thickness The use on any material less than 20mm thick...
-
Page 6: Safety Procedures
READ BEFORE USING THE MACHINE [2] SAFETY PROCEDURES When using electrical tools, basic safety precautions should always be ● followed to reduce the risk of electric shock, fire, and personal injury. Do NOT use in wet or damp conditions. Failure to do so may result in ●... - Page 7 Before operating the machine, always remove tie, rings, watches and any ● loose adornments which might entangle with the rotating machinery. Should the cutter become 'fast' in the workpiece, stop the motor ● immediately to prevent personal injury. Disconnect from the power source and turn arbor to and fro.
- Page 8 [3] OPERATING INSTRUCTIONS Keep the inside of the cutter clear of swarf. It restricts the operating depth of ● the cutter. Ensure that the coolant bottle contains sufficient cutting oil to complete the ● required operating duration. Refill as required. Occasionally depress the pilot to ensure cutting fluid is being correctly metered.
-
Page 9: Extension Cable Selection
[4] EXTENSION CABLE SELECTION The machines are factory fitted with a 2 metre length of cable having three conductors 1.5mm² LIVE, NEUTRAL and EARTH. If it becomes necessary to fit an extension cable from the power source, care must be taken in using a cable of adequate capacity. Failure to do so will result in a loss of traction by the magnet and a reduction of power from the motor. -
Page 10: Remedies For Hole Making Problems
[6] REMEDIES FOR HOLE MAKING PROBLEMS Problem Cause Remedy 1) Magnetic Material being cut may Attach an additional piece of base won't hold be too thin for efficient metal under work-piece where effectively holding of magnet magnet will be located, or mechanically clamp magnetic base to work-piece Clean magnet... - Page 11 Problem Cause Remedy 3) Excessive Incorrectly re-sharpened, Re-sharpen or replace drilling pressure worn or chipped cutter required. Coming down on swarf Clean work-piece. lying on surface of Take care not to start a cut work-piece on swarf Gibs out of adjustment Lubricate gib and/or adjust or lack of lubrication grub screws...
- Page 12 Insufficient use of cutting Fill arbor with an oil of light oil or unsuitable type of viscosity and check to be sure oil is being metered into cutter when pilot is depressed. If not, check pilot groove and arbor internally for dirt or apply oil externally.
