VACUUM TOILET
evacinclickS 1, 2 anD 3 FOR iFö TOileTS

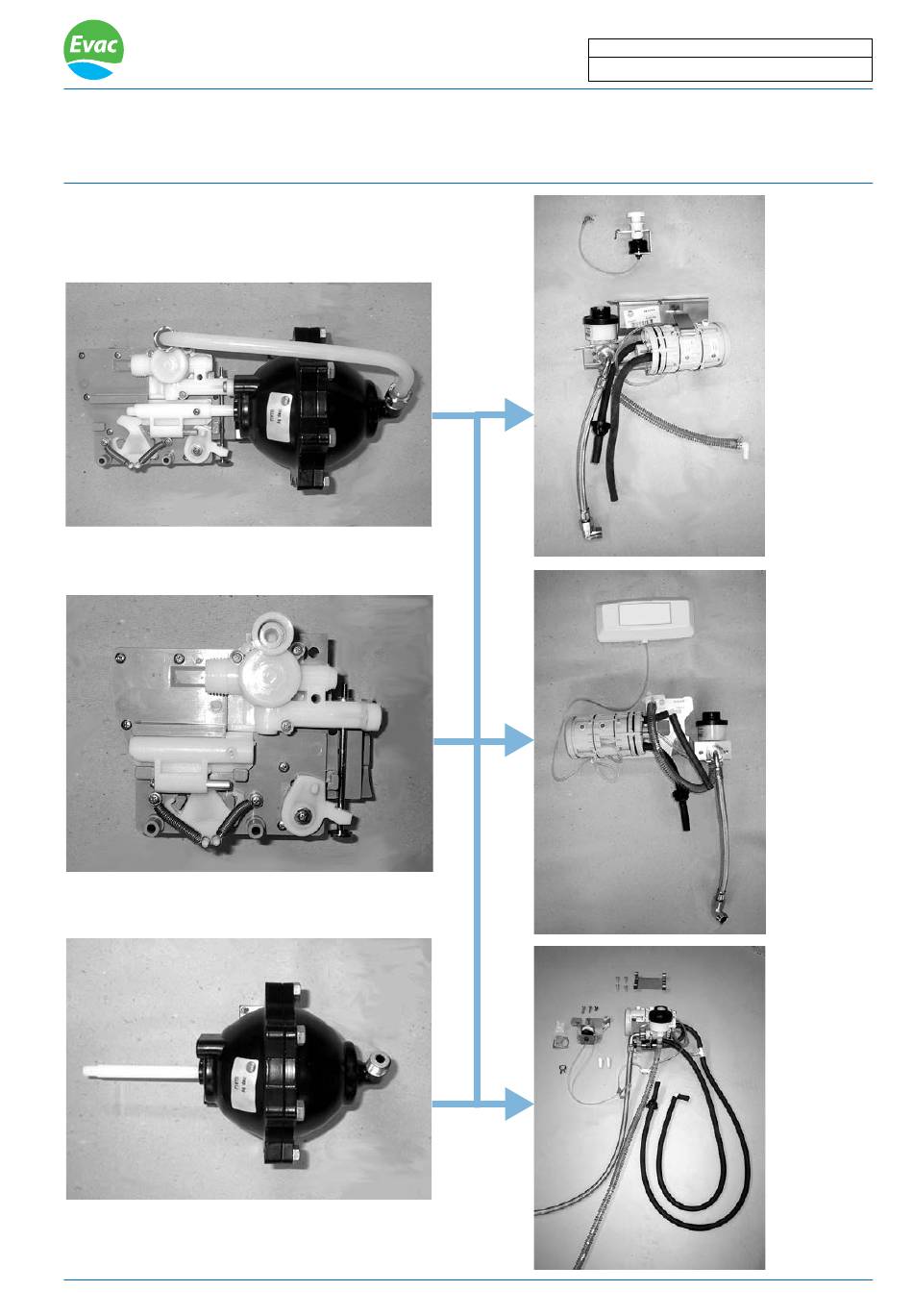

Evacinclicks
1, 2 and 3 on the right replace
products on the left.
5435259 Flush valve
5435265 Flush valve housing
5435261 Membrane box
EVAC reserves the right to make alterations to this specification without prior notice.
© Copyright Evac Oy. All rights reserved.
Date:
11 Apr 2011
Doc.
CUSTOMER SUPPORT
9:00015G
Evacinclick
1
5350000
Evacinclick
2
5350020
Evacinclick
3
6542341
2
Advertisement
Summary of Contents for Evac Evacinclick 1
- Page 1 Evacinclick products on the left. 5350000 5435259 Flush valve 5435265 Flush valve housing Evacinclick 5350020 5435261 Membrane box Evacinclick 6542341 EVAC reserves the right to make alterations to this specification without prior notice. © Copyright Evac Oy. All rights reserved.
-
Page 2: Customer Support
P/N 5350000 EvacInclick 1...................... Doc no. 2:01009E Spare parts: P/N 5350000 EvacInclick 1...................... Doc no. 6:01117E EVAC OY, tel.: + 358 20 763 0200, Finland EVAC reserves the right to make alterations to this specification without prior notice. © Copyright Evac Oy. All rights reserved. - Page 3 ( See spare part doc. 6:01117E ) FLUSH CONTROL UNIT to discharge Water supply valve Vacuum inlet Water supply EVACINCLICK 1 Fig.1 EVAC reserves the right to make alterations to this specification without prior notice. © Copyright Evac Oy. All rights reserved.
- Page 4 VACUUM TOILET 5350000 EVACinCliCk 1 When installing the EvacInclick 1, execute the applicable procedures in the given order: 1. Vacuum toilet removal 2. Vacuum toilet disassembly 3. Vacuum toilet reassembly (including installation of the EvacInclick 1) 4. Vacuum toilet re-installation 1.
- Page 5 2.7 Recommendation: Inspect the discharge valve, and especially the rubber parts. Replace if necessary. (Always clean the porcelain surface that touches the discharge valve before re-installing.) EVAC reserves the right to make alterations to this specification without prior notice. © Copyright Evac Oy. All rights reserved.
- Page 6 Connect one end of the water connection hose to the water valve inlet on the flush control unit, and connect the end with the elbow to the side connection. EVAC reserves the right to make alterations to this specification without prior notice. © Copyright Evac Oy. All rights reserved.
- Page 7 Control mechanism Fastening rods Vacuum breaker uSPH (optional) Vacuum hoses Outlet hose Elbow Inlet hose Wing nuts Fig. 5 EVAC reserves the right to make alterations to this specification without prior notice. © Copyright Evac Oy. All rights reserved.
- Page 8 4.8. Turn on the toilet’s water supply. 4.9. Flush the toilet and check all joints for vacuum and water leaks. EVAC reserves the right to make alterations to this specification without prior notice. © Copyright Evac Oy. All rights reserved.
-
Page 9: Spare Parts
P/N 5778000, White 30 P/N 5778004, Yellow 20 5430164 Elbow 5775500 5433281 Control mechanism 5470214 Hose with Hose mini-check valve 5959902 mini-check valve EVAC reserves the right to make alterations to this specification without prior notice. © Copyright Evac Oy. All rights reserved.
