Rise Freedom Extended Medical Rolling Cart
Assembly Instructions
1

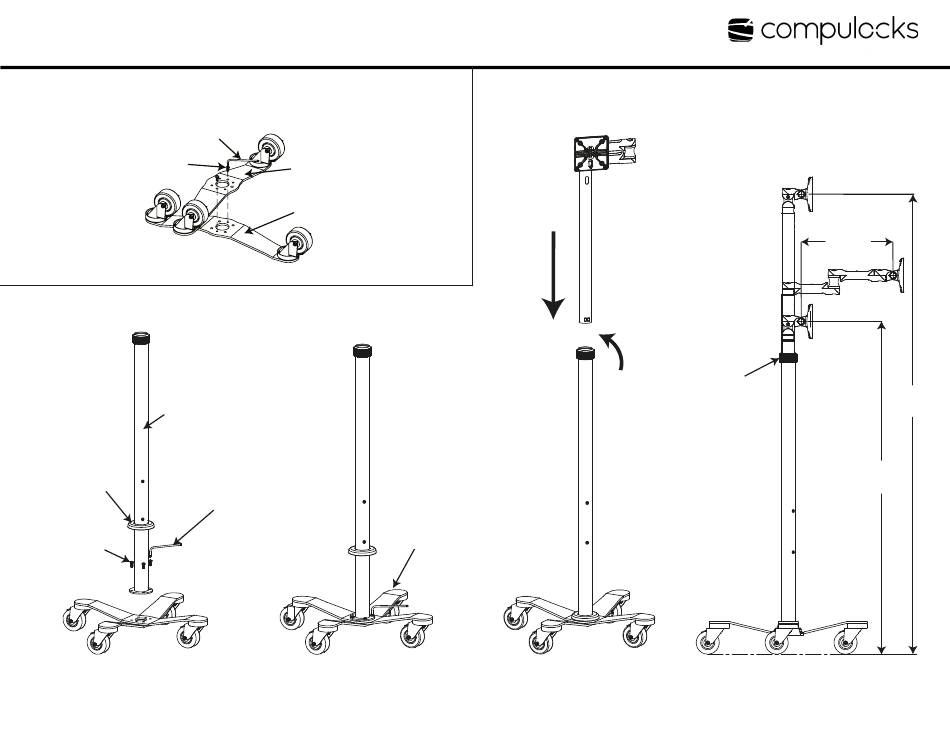

PLACE CASTER ASSEMBLY ON FLOOR WITH CASTERS FACING UPWARDS
TIGHTEN USING
TORX WRENCH PROVIDED
M6 x 12mm BUTTON
HEAD TORX SCREW
2
LOWER TUBE
LOWER TUBE
TIGHTEN USING
COVER
TORX WRENCH
PROVIDED
M6 X 16mm
TORX SCREWS
©Compulocks Brands Inc. All Rights Reserved.j
CASTER ASSEMBLY WITH
SEVEN (7) HOLES
CASTER ASSEMBLY WITH
SIX (6) HOLES
3
TIGHTEN SCREWS
www.compulocks.com | online@maclocks.com | +1 800-948-0344
SKU: MCRSTDEXW/B
4
INSTALL
UPPER ASSEMBLY
(IF INSTALLING
SHELF
INSTALL NOW)
LOOSEN TO INSTALL
UPPER ASSEMBLY
5
12"
304.8mm
TIGHTEN AFTER
INSTALLATION
AT DESIRED
WORKING HEIGHT
110.2cm
Sheet 1 of 2
60"
152.4cm
43.4"
