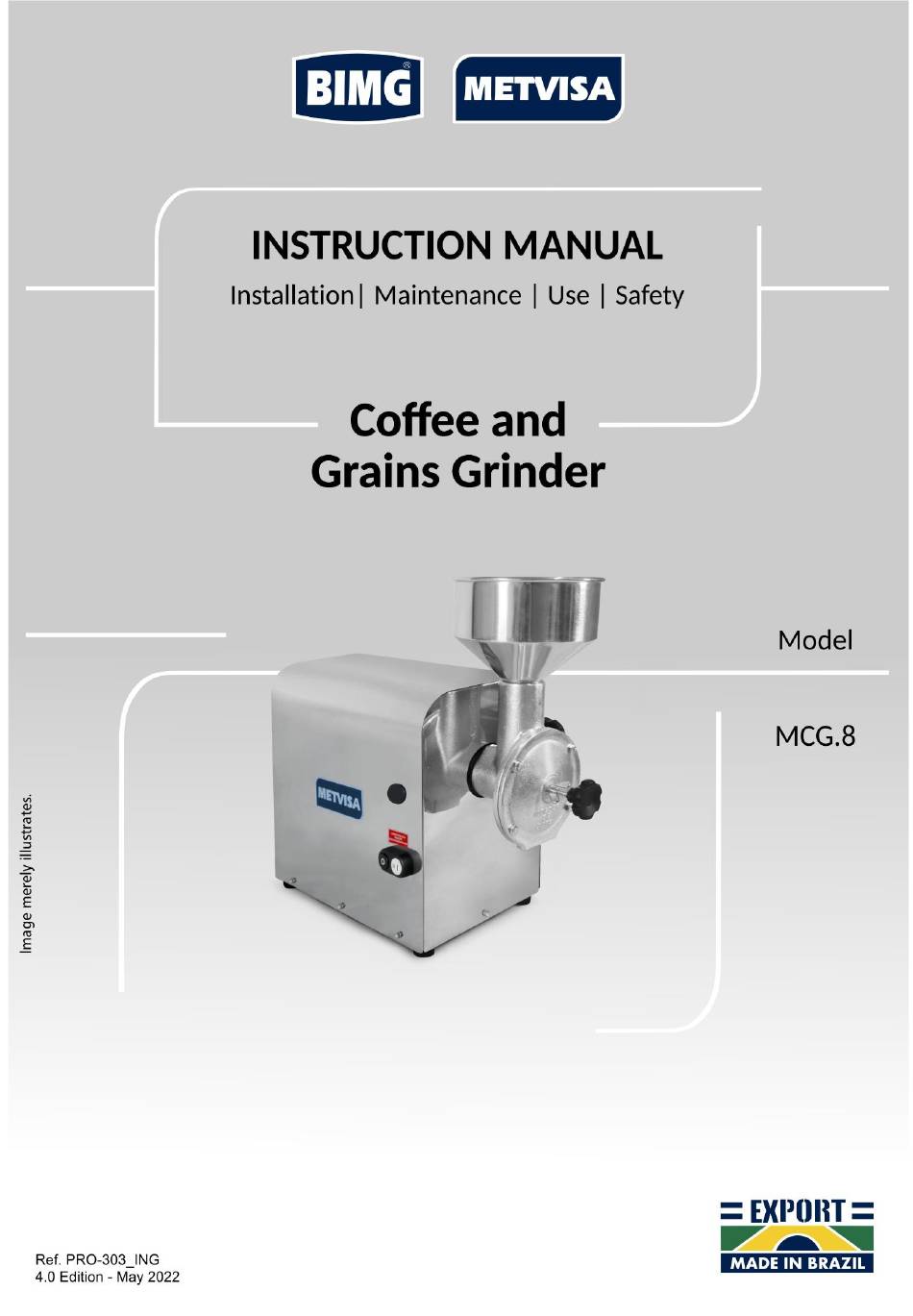

Summary of Contents for METVISA BIMG MCG8110M604
- Page 2 Gastronomy Machinery Industry Ltda IMG-BRASIL CNPJ 11.193.347/0001-14 - CREA 131726-3 Road. Antônio Heil – KM 23 Nº 5825 – Neighborhood: Limoeiro – ZIP CODE 88352-502 Brusque – SC – Brasil – Mail: export@metvisa.com.br Phone/fax. +55 47 3251-5555 - Website: www.metvisa.com.br...
-
Page 3: Table Of Contents
INDEX 1. Safety Information ......................... 4 1.1 General Warnings ........................4 2. Technical Characteristics ......................5 2.1 Main Components ........................5 2.2 Technical Data ........................... 6 3. Installation ............................. 6 3.1 Equipment Layout ........................6 3.2 Electrical Connection ......................... 7 4. -
Page 4: Safety Information
1. Safety Information 1.1 General Warnings • Cautions / precautions must be observed when installing, using, maintaining and discontinuing use of this equipment; • Before carrying out any operation (assembly, use, maintenance and reuse after prolonged use of the equipment), read the manual carefully; •... -
Page 5: Technical Characteristics
ATTENTION! Do not perform repairs on your own. Refer servicing to qualified service personnel. Only use original parts in your equipment. 2. Technical Characteristics 2.1 Main Components For the equipment described in this manual, safety in use, cleaning, maintenance and maximum hygiene are guaranteed by the design and special design of all parts, as well as the use of stainless steel and other materials suitable for contact with the foods. -
Page 6: Technical Data
2.2 Technical Data Nominal Measures Lubricant Voltage Rate Capacity Model LxHxW Weight SAE140 (kg/h) ** (mm)* (kg) (ml) MCG8110M604 280x480x500 20.9 MCG8220M501 280x480x500 20.9 2.15 MCG8220M502 280x480x500 20.9 2.15 MCG8220M504 280x480x500 20.9 2.15 MCG8220M507 280x480x500 20.9 2.15 MCG8220M604 280x480x500 20.9 * For all grinder models, the height measurement was considered with the funnel mounted. -
Page 7: Electrical Connection
and water taps, and at an average height of 80 m. cm. Install your equipment leaving a clear area at the front, a distance of at least 60 cm above the equipment and a distance of at least 30 cm around it, so that you have enough space for inspection, maintenance, cleaning and use. - Page 8 Phase Neutral Ground The maintenance procedure on the power cord and/or the power plug of the appliance must be carried out by an authorized agent or qualified person. The equipments are shipped with a single voltage, that is, 110 V or 220 V. If it is necessary to change the voltage, contact the manufacturer or an authorized dealer.
-
Page 9: Equipment Use
For more details on the rest of the electrical part of the equipment, refer to the electrical diagram in the annexes of the manual. IMPORTANT The manufacturer is not responsible for possible direct or indirect damages caused by non- compliance with said standards and other instructions presented in this manual. 4. -
Page 10: Operating Procedures
ATTENTION! Be careful when adjusting the granulation. The handle cannot be tightened excessively, it must simply be pressed against the end of the thread. Tightening it excessively will wear out and strain the engine, possibly burning it. The handle cannot be loosened too much either, as in this case a ball located between the handle and the back of the head could come loose. - Page 11 • Assembly: The assembly procedure is the reverse of disassembly. With the grinder head mounted, fit it into the bearing according to the instructions below: All parts must be fixed perfectly so that there is no jamming or wear, and so that the safety of the operator is guaranteed.
- Page 12 • With the setting defined, start grinding by pressing the on/off switch in position “1” (on); • Leave the equipment working until the grinding is finished; • After the end of the process, turn off the equipment by pressing the on/off switch in position “0” (off). ATTENTION! Do not start the appliance without grains, as this will damage the grinding disc and the motor.
-
Page 13: Cleaning And Maintenance
ATTENTION! Do not remove the funnel from the grinder head with the equipment on, nor should you put your fingers, hands or objects (such as spoons and knives) inside the feeding head, as this may cause accidents. In case of any irregularity, contact the nearest authorized technical assistance service. -
Page 14: Breakdown Maintenance And Procedures
Never use abrasive products or sponges and substances containing acids or chlorine to clean metal parts, as they can scratch or damage the surface of the parts causing corrosion points. Do not pour water over the motor and electrical parts for cleaning, otherwise, when turning it on, it may cause an electric shock or even burn the equipment. - Page 15 • After all the oil is removed, screw the screw with sealing tape again; • To put in the new oil, remove the plug located on top of the gearbox; • Using a funnel, add the oil. Check the amount of oil for each model of grinder in the table in item 2.2 (Technical Data);...
-
Page 16: Anexxes
6. ANEXXES Electrical Schematic Single-phase – Voltage 110 V or 220 V... -
Page 17: Exploded View Drawing
Exploded View Drawing... -
Page 18: Exploded View Drawing
Exploded View Drawing... -
Page 19: Spare Parts List
Spare Parts List Position Code Description Quantity BAS138 Base PEP004 Rubber Foot Hole PRR015 Round Machine Screw SBT518 Gearbox Support ARL004 Flat washer PRS010 Hex Screw CAIXA Full Transmission CRC1387 Transmission Box Bottom Plate CRC1304 Flange Coupling ORG027 O-ring BGT100 Motor Spacer PRC011 Stainless Steel Flat Machine Screw... - Page 20 IMG BRASIL Gastronomy Machinery Industry Ltda. CNPJ 11.193.347/0001-14 - CREA 131726-3 Road. Antônio Heil - KM 23 Nº 5825 - Neighborhood: Limoeiro ZIP CODE 88352-502 - Brusque - SC - Brazil Phone/fax. +55 47 3251-5555 - Web Site: www.metvisa.com.br Mail: sac@metvisa.com.br - export@metvisa.com.br...
