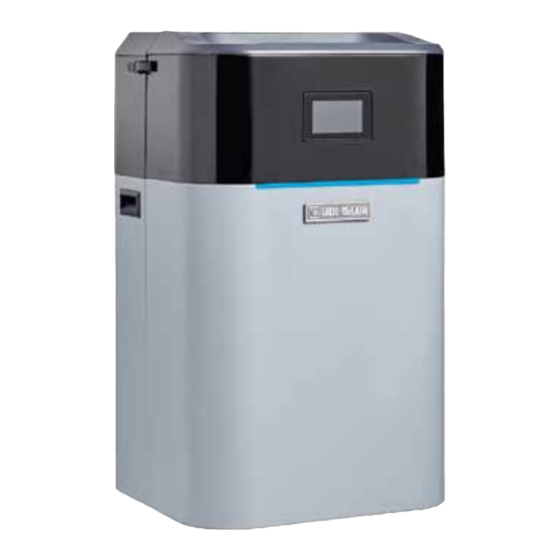

Weil-McLain ECO Tec 2 Series Instructions
Wall mount gas-fired condensing boilers
Hide thumbs
Also See for ECO Tec 2 Series:
- Advanced manual (72 pages) ,
- Manual (180 pages) ,
- User's information manual (12 pages)
Table of Contents
Advertisement
Quick Links
Read the boiler rating label
to determine the size and
series number.
Multi-Boiler Wiring Kit Instructions
STOP!
Read before proceeding
Hazard definitions
The following defined terms are used throughout
this instruction to bring attention to the presence
of hazards of various risk levels or to important
information concerning the life of the product.
Indicates presence of hazards that will
cause severe personal injury, death or
substantial property damage.
Indicates presence of hazards that can
cause severe personal injury, death or
substantial property damage.
Indicates presence of hazards that will
or can cause minor personal injury or
property damage.
Indicates special instructions on
installation, operation or maintenance
that are important but not related to
personal injury or property damage
These instructions must only be
used by a qualified installer/service
technician. Read all Instructions com-
pletely before beginning the installation.
Failure to follow all instructions can cause
severe personal injury, death or substantial
property damage.
Improper installation, adjustment,
alteration, service or maintenance can
cause property damage, personal injury
(exposure to hazardous materials) or
loss of life. Refer to the user's informa-
tion manual provided with this boiler or
available on-line at Weil-McLain.com.
Installation and service must be per-
formed by a qualified installer, service
agency or the gas supplier (who must
read and follow the supplied instruc-
tions before installing, servicing, or re-
moving this boiler. This boiler contains
ceramic fiber and fiberglass materials
that have been identified as carcinogen-
ic, or possibly carcinogenic, to humans).
Condensing Boilers – Combi and Heating Only Models
(RS-485 Communication)
P/N 383-700-272 Kit Contents:
Description
Wiring Harness, RS-485 Communication
Vinyl Grommet
1/2" Sheet Metal Screw
1 1/2" Sheet Metal Screw
Communication Board
Junction Box Top
Junction Box Bottom
Plastic Anchor
Recommended tools
Phillips screwdriver
.
Flat blade screwdriver
Paper/pen
Boiler manual
Series 2
80/110/150/199
Wall Mount Gas-Fired
Part No. Qty
591392107
562248771
562138550
562137536
511330460
469040072
469040071
563210627
Part Number 550-143-015/1221
1
1
2
4
1
1
1
4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Weil-McLain ECO Tec 2 Series
Summary of Contents for Weil-McLain ECO Tec 2 Series
- Page 1 (exposure to hazardous materials) or loss of life. Refer to the user’s informa- tion manual provided with this boiler or available on-line at Weil-McLain.com. Installation and service must be per- formed by a qualified installer, service agency or the gas supplier (who must...
- Page 2 Multi-Boiler Wiring Kit Instructions Before proceeding: Figure 2 Junction Box 1. Shut down the power to the boiler. Shut off power to the boiler. Failure to do so can result in severe personal injury, death or substantial property damage. 2. Remove door by disengaging the two (2) latches at the sides of the front door.
- Page 3 Multi-Boiler Wiring Kit Instructions Figure 3 5-pin Wire Routing 550-143-015/1221 Part number...
- Page 4 Reinstall control bracket front panel and boiler door after start-up or servicing. The door must be securely fastened to the boiler to prevent the boiler from drawing air from inside the boiler room. Weil-McLain 500 Blaine Street Michigan City, IN 4360-2388 weil-mclain.com Part Number 550-143-015/1221...
