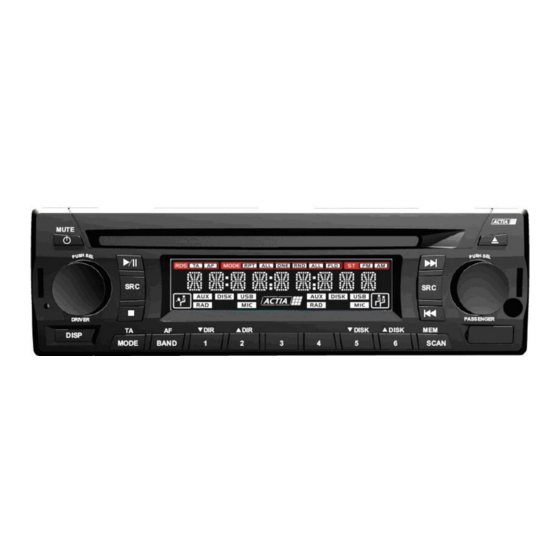

Actia ACT500 User Manual

Dvd/svcd/vcd/cd/mp3/mp4/radio/mic player with usb input

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

USER MANUAL

ACT500

DVD/SVCD/VCD/CD/MP3/MP4/RADIO/MIC Player

with USB Input

Table of Contents

Need help?

Do you have a question about the ACT500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Actia ACT500

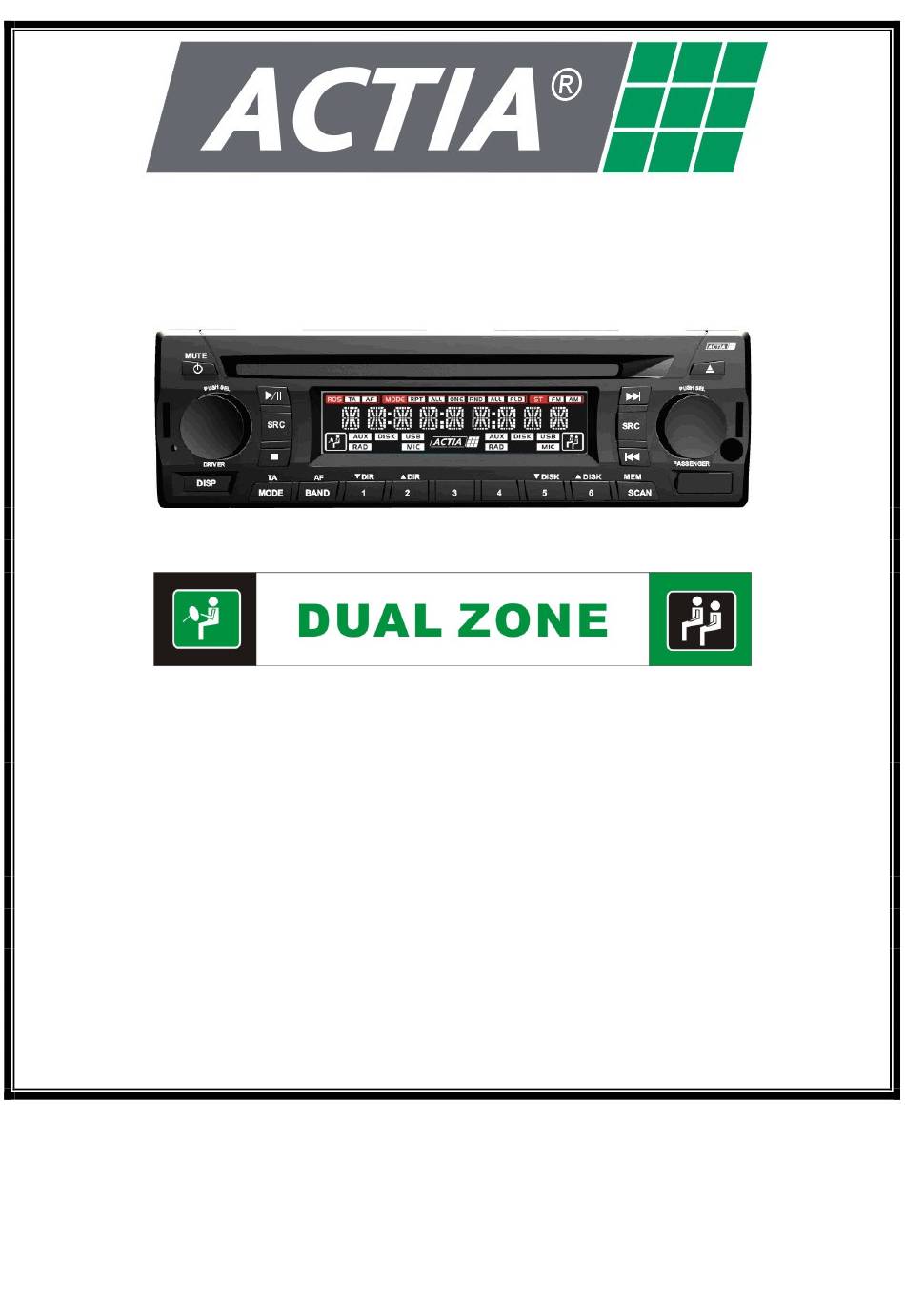

Page 1 USER MANUAL ACT500 DVD/SVCD/VCD/CD/MP3/MP4/RADIO/MIC Player with USB Input...
Page 2: Table Of Contents
CONTENTS 1. MAIN FEATURES ......................3 2. INSTALLATION .......................4 2.1. PRECAUTIONS ......................4 2.2. ELECTRICAL CONNECTIONS ..................4 2.3. REMOTE CONTROL ...................... 6 3. GENERAL OPERATIONS ....................7 3.1. AUXILIARY SOURCE (AUX) ................... 8 3.2. DISK SOURCE (DISK) / USB SOURCE (USB)............... 8 3.2.1.
Page 3: Main Features
The product is equipped with CAN2.0B interface which allows it to be connected and commanded by external devices such as steering wheel keys, dashboard controls, etc. ♣ DISK and USB sources cannot be used simultaneously in both areas. ♦ For future use together with ACTIA products.
Page 4: Installation
2. INSTALLATION 2.1. PRECAUTIONS • Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration.
Page 5 4 DISK ICON Indicate the selection of DISK 5 USB ICON Indicate the selection of USB 6 MIC ICON Indicate the selection of Microphone 7 ACTIA LOGO Displays animation when loading the disc 8 Passenger ICON Indicate PASSENGER as selected area...
Page 6: Remote Control
Product selection ACT501 (the remote control will only work on ACT501 player) 30 500 Product selection ACT500 (the remote control will only work on ACT500 player). IMPORTANT • The remote control is a dual-frequency type, which will only work with the selected product (ACT501 or ACT500) by using the keys “500”...
Page 7: General Operations
• Remove the battery if the remote control is not used for a month or longer. • Do not recharge, disassemble, heat or dispose the battery on fire. • Do not store the battery with metallic materials. • In the event of battery leakage, wipe the remote control completely clean and install a new battery •...
Page 8: Auxiliary Source (Aux)
[TREBLE] - varies from -10 to +10 [LOUDNESS] - switch ON of OFF [EQUALIZER] - ROCK / OPERA / POP / VOICE / FLAT Adjust of Beep/ Radio Region/ Radio RDS By holding [VOL KEY_PSG] or [VOL KEY_DRV] for 5s, the special menu of configuration appears and the following items can be configured: Beep BEEP ALL :...
Page 9: Listening To Cd/Mp3
to play the content of the USB pendrive. Note: • it may occur some small delay to skip from DISK to USB sources, this is a normal behaviour due to the required loading process.) Display (DISP) When this key is pushed, it is showed different information according to the display mode as follow.
Page 10: Playing Usb Music/Movies
Program Playback You can set which tracks to play according to your desired sequence using the program function. 1. Press PROGRAM button on the remote control. 2. Enter the track number besides the memory location. Up to 16 tracks can be stored. 3.
Page 11: Playing Vcd/Svcd
Slow motion playback This feature lets you slow down playback. 1. Press Slow on the remote control during playback or press PAUSE on the head unit, then long press to enter in slow selection mode. 2. Pressing it repeatedly will switch you to the following steps: 1/2 - 1/3 - 1/4 - 1/5 - 1/6 - 1/7. Note: •...
Page 12: Radio Source (Rad)
some other input device available. If PCB is ON, the player won’t auto start after inserting the disc because it will take time to select program on disc; if PCB is OFF, the player will auto play the program on disc one by one. •...
Page 13: Microphone Source (Mic)
3.4. MICROPHONE SOURCE (MIC) Source selection The MIC audio source is automatically selected for both PASSENGER and DRIVER when the ACTIA MICROPHONE pin is switched on. When the pin is switched off, the equipment comes back to the previous selected source. Auto Pause/Play If in the moment of the MIC selection there was a song or movie being played, this playback will be temporally paused and will return to previous status when the MIC is switched off.
Page 14: Osd Setup Menu
Only one microphone can be used at time, having priority the DRIVER MIC over the GUIDE MIC. 4. OSD SETUP MENU Important 1. Load no disc into the unit before you can access the settings. 2. Press SETUP on the remote control. 3.
Page 15 “SAVE LOGO” key on remote control and configure the SETUP menu with Logo Type = “CAPTURED”. New logos can be saved over the previous one or the original ACTIA logo can be restored by selecting Logo Type = “DEFAULT” on SETUP menu.
Page 16: Technical Specifications
5. TECHNICAL SPECIFICATIONS VIDEO PERFORMANCE: --Composite video Output: ........1V / Zout=75Ω --Horizontal Resolution:.......... 480 lines (NTSC)/ 576 lines (PAL) --Video Signal to Noise Ratio: ........ ≥ 60dB --Aux Video Input: ..........from 0.8V to 1.2V / Zin=75Ω POWER SUPPLY: --Operating Voltage Range: ........
Page 17 --Signal to Noise Ratio (A-weighted): ..... ≥ 80dB --Frequency Response:.......... 20Hz to 20KHz ±3dB --Channel Output Difference: ......... 3dB Max RADIO LINE OUTPUT (stereo) --Output Level: ............0.5Vrms into 10KΩ Load --Output impedance: ..........600Ω --THD+ Noise: ............≤ 0.5% --Signal to Noise Ratio (A-weighted): .....
Page 18 --Operating Temperature Range: ......-20°C to +70°C --Vibration .............. in accordance with IEC 68-2-6 test Fc MECHANICAL: --External dimensions (W x H x D): ......178mm x 55mm x160 mm (ISO/DIN) --Weight (only ACT500).......... ∼1.8Kg --Installation Position Angle:........According illustrated below Installation angles allowed DVD/CD PLAYER: --Compact Disks.............
Page 19 TYPES OF MEDIA: The product should be able to play the following list of formats: File type File extension Supported edition / Details MPEG1(VCD) .DAT VCD1.0、VCD1.1、VCD2.0、SVCD .DAT,.VOB MPEG2（DVD） MPEG4 .AVI Divx3.11, Divx4.12, Divx5.0, 5.02, 5.03, 5.04, 5.05, 5.1, 5.11, .MP4 5.2, 5.21, DivxPRO .DIV Xvid1.00, 1.01, 1.02, 1.03, 1.10-beta1, 1.10-beta2...
