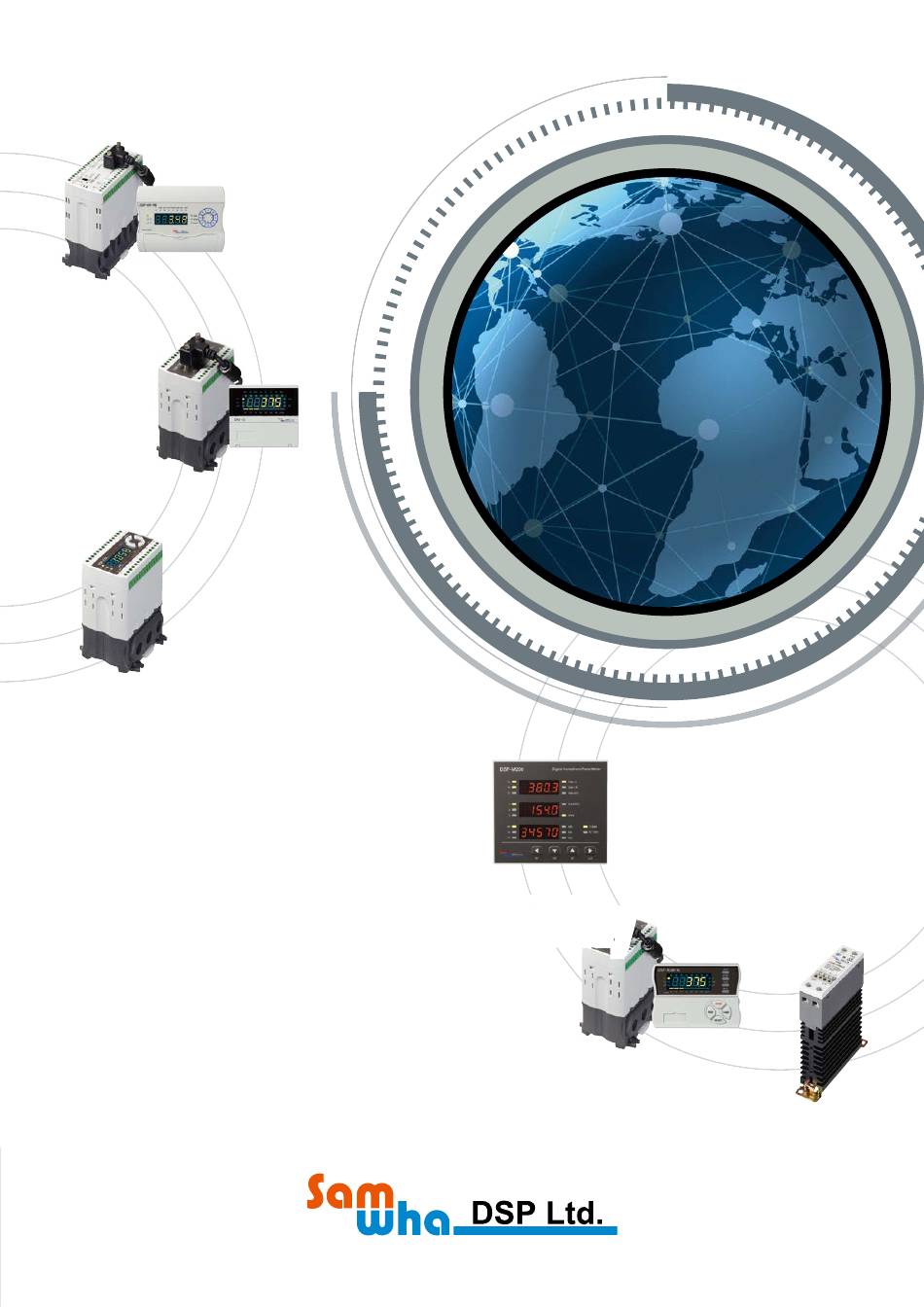

- Page 1 New Leader! Motor Protection Relay New Leader !! Optimized Preventive Maintenance Solution!! Digital Motor Protection Relay 전자식 모터보호 계전기 Digital Motor Protection Relay DSP - C Series D I G I T A L S T A N D A R D P R O T E C T I O N www.samwhadsp.com...
-
Page 2: Main Window

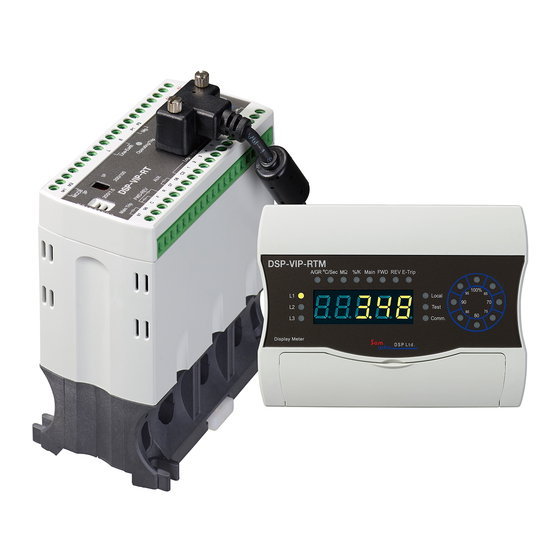

Motor Preventive Maintenance Diagnostic System(DSP-EFDS) : VIP-PM/RTM, "samdsp","samdspdb" ●Created data for motor protection : Voltage, Current/KW, Earth current, Isulation resistance, Temperature, Power factor, Unbalance ●Building data base(DB) up based on 485/Modbus network ●Analyzing and managing DB DATA in order to check the motor condition and to make alarm in case of unstable condition : able to preset alarm level for each factor ●Possible to analyze accurate trip cause through stored data of trip instant in MWR-S(Motor working Recorder) connected with converter directly... - Page 3 New Leader !! SamWha DSP!! Digital Motor Protection Relay ” Digital Motor Protection Relay,DSP VIP-Series , P-Series,C-Series,A-Series, is useful for low voltage motor protection. It is aimed to protect a motor against a trouble which is happened from over/under load[current],locked rotor, stall[shock], voltage (power type)/current unbalance, phase loss, reverse phase, short circuit, ground fault, over/under voltage(power type) in motor operation.
- Page 4 Digital Motor Protection Realy DSP-C Series Techincal Feature (M Type) (M Type) DSP-C Series Division Panel Flush Mounting Type Model CCM-E CTM-D CCTM CCM-N 100~240VAC[50/60HZ] (90 ~ 370VDC) Control voltage 30 ~ 400HZ Available frequency/Inverter Single phase(1P) ● ● ● ●...
- Page 5 (M Type) (L Type) (L Type) DSP-C Series Division nel Mounting Type Panel Mounting Type Panel Mounting Type Panel Flush Mounting Type CCM-E CTM-D CCTM CO M CCM-E CTM-D CCTM CCM-N Model CTM-N CCM-ET CCM-PT CCL-PT 100~240VAC[50/60HZ] (90 ~ 370VDC) Control voltage Available frequency/Inverter 30 ~ 400HZ...
- Page 6 Digital Motor Protection Relay DSP-C Series DSP-COL, CTL, CCL,CCL-PT : Panel Mounting Type DSP-COM, CTM, CCM,CSM: Panel Flush Mounting Type DSP-CCM-E,CTM-D,CCTM,CCM-N,CTM-N,CCM-ET,CCM-PT: Panel Flush Mounting Type Panel Mounting Type → Unified meter with converter Panel Flush Mounting Type → Seperated meter from converter Assembled Terminal Over/Under Current Protection Trip Output Operation Pattern...
- Page 7 Digital Motor Protection Relay DSP-C Series Input/Output ① ① DSP-COM DSP-CCM-E ⑤ ⑤ ⑥ ⑥ ⑦ ⑦ ⑧ ② ③ ④ ② ③ ④ ⑤ Power & Trip LED ① Control power ⑤ Power & Trip LED ① Control power ⑥...
-
Page 8: Operation Time
Digital Motor Protection Realy DSP-C Series Operation Time Description Operation time Remark in case the load current greater than preset value Definite time:0.1~60 sec/adjustable Over current(OC) is sensed Inverse time:5~30class in case the load current lower than preset Under current(UC) 0.1~30 sec value is sensed In case one of three phase is a state of phase loss... - Page 9 Digital Motor Protection Realy DSP-C Series Description Current C<=2A:0.2A,C>2A:±5% Allowable tollerance Time t<=2sec:± 0.2ec, t>2sec:±10% Control power AC100V ~ AC240V,50/60Hz (DC90V ~ DC370V) Main:95-96-98 1c(1-SPDT),2A/Resistive Trip output 1c(1-SPDT),2A/Resistive to alarm output one of Ec/Ect/AL/ relay Aux:05-06-08 uc/Shoc Operation C~+70 temperature Application Storage C~+80...
- Page 10 Digital Motor Protection Realy DSP-C Series Preset Key Operation * Press "SET" Key to enter into setting mode, then "P0000" (factory default password) is shown * Move cursor from first digit to right end digit by pressing "CLR"key to input password, like this manner make required digit by using "UP","DN" 1.
-
Page 11: Preset Description
Preset Description Mode Function Description Factory P0000 is shown as pressing SET and need CLR 4 times to P0000 Password 0000 enter into mode to be preset *to make initial state(a or b) of main trip output(95-96-98) when control power is powered to decide initial state of main *a:normal energized type(95-96(a)-98(b) trip relay output... - Page 12 Digital Motor Protection Realy DSP-C Series Mode Function Description Factory to preset starting trip delay time 1 ~ 25sec/adjustable 2sec to preset operating trip delay 0.1 ~30sec/adjustable 0.1sec time to protect ground fault to preset a range to protect *10 type : 0.4A~under "OC" preset value under current *70 type : 4.9A~under "OC"preset value to preset trip delay time to...
- Page 13 Digital Motor Protection Realy DSP-C Series T-I Characteristic to protect over current ■ Definite ■ Inverse S a m w h a D S P •...
-
Page 14: Order Form
Digital Motor Protection Realy DSP-C Serie Order Form DSP-Type-Current rating-Z7(Control Voltage)-ZCT(Embedded ZCT)-P(Customer optional) eg. Reference Code : DSP-COL-10-CC-Z7 → COL combined with external CT 150/5, control voltage: 100VAC~240VAC,50/60Hz, possible to use external ZCT Description Remark Panel Mounting Type / Unified Meter type Panel Flush Mounting Type / Seperated Meter type 0.5~10A 5~6A with external CT... - Page 15 Digital Motor Protection Realy DSP-C Series Application Sequence Diagram Embedded ZCT Type 100% DSP Ltd. External CT, External ZCT Type 100% DSP Ltd. S a m w h a D S P •...
- Page 16 Digital Motor Protection Realy DSP-C Series Dimension Terminal Type Wire Through Type Meter 50,00 76,00 76,00 CUTTING HOLE SIZE ; 65Ø S a m w h a D S P •...
-
Page 17: Specification
DSP-3CT DSP-3CT Current Transfomer Specification Specification Model Model DSP-3CT DSP-3CT 100 : 5A 150 : 5A CT Ratio CT Ratio 200 : 5A 300 : 5A 400 : 5A Class Class 1.0, 3.0 1.0, 3.0 Burden(VA) Burden(VA) Maximum Voltage 1150V 4kV / 1min Withstand Voltage Frequency... - Page 18 DSP-ZCT DSP-ZCT Zero Phase Current Transformer Ă 55 Ă 35 30 (30~80) Specification Inner Diameter Z.P.PrimaryCurrent 200mA 1.5mA Z.P.Secondary Current 1000 Primary Current Operating Temperature -25。C ~ +70。C Storage Temperature -35。C ~ +80。C AC 2000V, 1min High Potential Test 50 Insulation Resistance DC 500V, 10MOhm 50/60Hz...
- Page 19 DSP-ZCT DSP-ZCT Zero Phase Current Transformer (Zero Phase Current Transformer) (120)
- Page 20 "New Leader !!" Optimized Preventive Maintenance Solution!! HEAD OFFICE : 69, LS-ro 91beon-gil, Gunpo-si, Gyeonggi-do 삼화DSP : 경기도 군포시 엘에스로 91번길 69(금정동 693-2 청산빌딩 3층) Tel : +82-31-454-3551 Fax : +82-31-454-3552 TEL : 031-454-3551 / FAX : 031-454-3552 DAEGU OFFICE : 18dong 9ho, 16, Yutongdanji-ro, Buk-gu, Daegu Tel : +82-53-604-1341 Fax : +82-53-604-1343 D I G I T A L S T A N D A R D P R O T E C T I O N...
