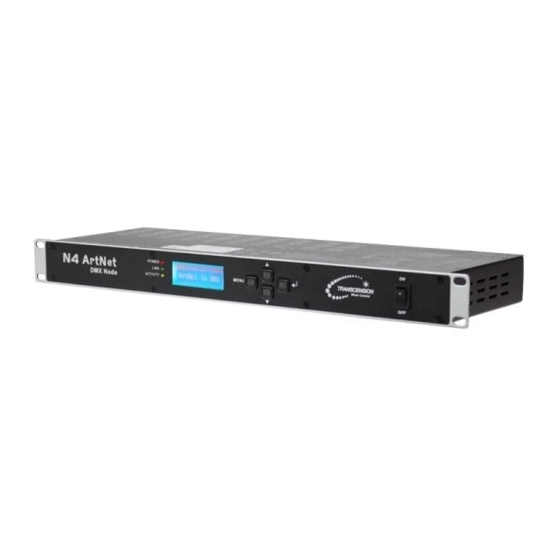

- Page 1 N4 MKII Art-Net™ Node Order code: CONT25 User Guide Please read these instructions carefully before use...
-
Page 2: Table Of Contents
CONTENTS 1. Features 2. General Instructions 3. Overview 3.1 Front View 3.2 Rear View 4. Operation Guide 4.1 Startup View 4.2 Main Menu 4.2.1 Rename Device 4.2.2 Set IP Address 4.2.3 Set Netmask 4.2.4 Set DMX Port 4.2.5 Set Device ID Number 4.2.6 Set LCD Backlight 4.2.7 User Preset 4.2.8 Firmware Version... -
Page 3: Features
1. Features Multi-purpose, four universe DMX processor featuring three main modes of operation: Art-Net™ to DMX node, four universe DMX to Art-Net™ processor or DMX splitter/buffer. Art-Net™ input/output via etherCON™ RJ45 2048 channels 4 push button menu with LCD display ... -
Page 4: General Instructions
2. General Instructions Please read the user manual carefully, as it includes important information regarding details of operation, maintenance, and technical data. Keep this manual with the unit for future consultation. WARNINGS! DO NOT make any inflammable liquids, water or metal objects enter the unit. ... -
Page 5: Overview
3. Overview 3.1 Front View To show the on/off status of the unit 1 POWER LED indicator 2 LINK LED indicator Network connect status indicate 3 ACTIVITY LED indicator Network activity indicator, when there is any data present, it will flash. Display the present status and the 4 LCD Display available option... -
Page 6: Operation Guide
4. Operation Guide Many of the modern lighting systems require thousands of DMX channels, often beyond the number provided on the direct DMX outputs located on the lighting console. And with the increased use of LED fixtures and video mapping, it is now necessary to have fast DMX response and proper network load management. -
Page 7: Main Menu
4.2 Main menu 001-128 Net,... -
Page 8: Rename Device
4.2.1 Rename Device Enter into the main menu by press UP/DOWN button, then pressing the button to choose the Rename Device option and then press the ENTER button to confirm your selection. Now you can rename the device by pressing UP and DOWN now. -
Page 9: Set Netmask
4.2.3 Set Netmask Enter into the main menu by press MENU button, then pressing UP / DOWN to choose the Netmask option and then press the ENTER to confirm your selection. Now you can set Netmask by pressing UP and DOWN now. Confirm you change and move to next option by pressing the ENTER and UP/DOWN. - Page 10 1) 1-4 DMX Input You can set any of the DMX port 1-4 as Input status. Then only the principle universal is available. It can be set within the range 0.0 - F.F. As the DMX port has been set as Input status, then the Mode only can be set as normal or backup.
- Page 11 2) 1-4 DMX output Any of the port 1-4 also can be set as Output status. Upon the port has been set as Output status, there are LTP, HTP, zero, single and RDM these 5 modes can be selected. Zero means the port output should be “0’; Single means this port will only output one universal.
- Page 12 HTP means the port will output the one with higher value between the universal of principle and secondly. The unit will compare the two universal and resend the higher data to the network. They can be set within the range of 0.0-F.F./001-255.
-
Page 13: Set Device Id Number
4.2.5 Set ID NO. Enter into the main menu by press MENU button, then pressing UP / DOWN to choose the Set ID NO. option, then press the ENTER to confirm your selection. Press the ID No. (for example: 001) and press the ENTER to enter and press UP and DOWN to choose the ID No. - Page 14 1) 4 x Input: Art-Net™ to DMX Processor (4 x Input): In the “4 x Input” mode the N4 will function as an Art-Net™ processor, converting the inputted DMX signals into Art-Net™ output across 4 universes. Advanced user options include primary and secondary Art-Net™ universe input with LTP or HTP modes.
-
Page 15: Firmware Version
4) Isolated Mode: In the “Isolated” mode the N4 will function as an Art-Net™ processor, converting the inputted Art-Net™ signal into DMX output across 4 universes. The port range of DMX outputs is 1-4 (0.0~0.7). Each will receive the signal from the network individually. 5) Factory Reset: All of the setting including the device name and device ID as well as device IP will be restored to the original factory status. -
Page 16: Application Diagram
5. Application Diagram Please Note that: The unit cannot be circular connected, or it will cause cyber storm to affect the performance of system. Technical Specification Power Supply ....…………………AC100-240V, 50/60Hz Dimensions.....……………...…44x484x152mm Weight.....……………...…..1.98kgs...
