CARTRIDGE INSTALLATION OR REPLACEMENT
1.
Close inlet and outlet valves and open the bypass valve. Open drain and allow sump to drain.
2.
Loosen the ring nut and slide it down the sump. Remove the sump from the head.
3.
Check the shell gasket for damage. Replace if necessary.
4.
Remove old cartridge and clean the inside of the sump. Insert the new cartridge, making sure it seats
properly on the seal plate at the bottom of the sump.
5.
Lubricate the gasket to prevent binding or pinching during installation.
6.
Reassemble the sump to the head. Slide the ring nut up to the head and tighten until it is snug, then
another 1/8 to 1/4 turn. Do not overtighten. Close the drain at the bottom of the sump.
7.
Open inlet and outlet valves and close the bypass valve. If a leak appears, close the inlet and outlet
and open the drain to relieve the pressure. Loosen the ring nut and repeat steps 5, 6, and 7 above to
adjust alignment and gasket seating. If the leak persists, check the gasket for damage and replace as
necessary.
SHELCO FILTERS - MODELS RHB & RHS
INSTALLATION, OPERATION, MAINTENANCE MANUAL
WARNING:
The filter must be protected from freezing to prevent cracking,
which would result in leakage.
_____________________________________________________
MAXIMUM OPERATING PRESSURE
300 PSI (20.7 BAR) @ 200 F (93 C)
_____________________________________________________
INSTALLATION

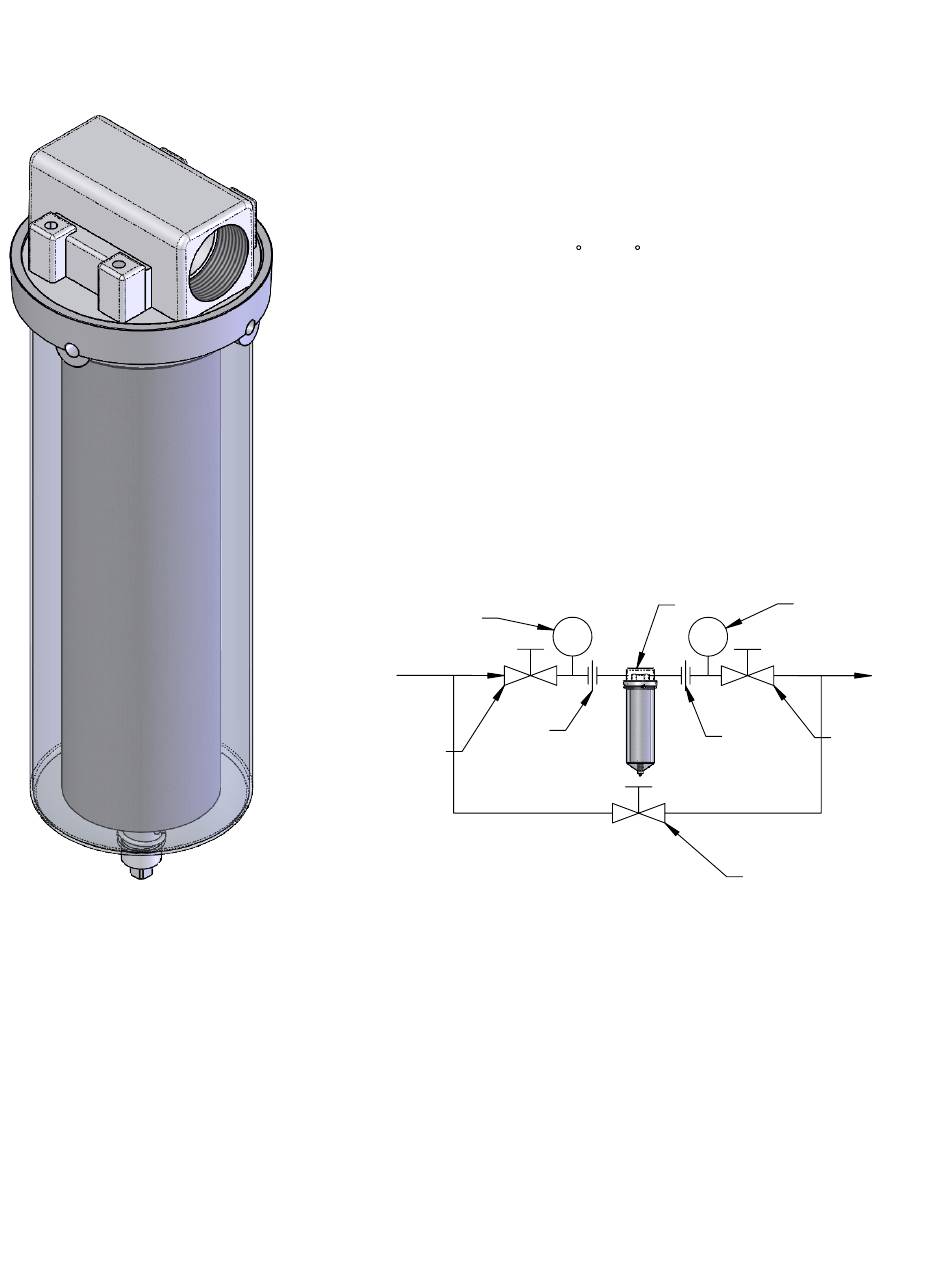

A recommended installation is shown below with inlet, outlet, and bypass
valves to isolate the housing for ease of changing cartridges. Also
recommended is the installation of union couplings on either side of the
filter to facilitate installation and removal of the housing. Ensure that the
direction of flow indicated by the arrow on the head is consistent with
your process. DO NOT INSTALL BACKWARDS. If your housing is
equipped with gauge ports, install suitable pressure gauges. Otherwise,
it is recommended that pressure gauges be installed in the inlet and
outlet piping as an indicator of remaining cartridge life.
Pressure Gauge
FLOW
Inlet Valve
(Optional)
Union
(See exploded view on other side)
Pressure Gauge
Filter
(Optional)
Union
Outlet
Valve
Bypass
Valve
Advertisement
Table of Contents
Related Manuals for SHELCO FILTERS RHB
Summary of Contents for SHELCO FILTERS RHB
- Page 1 SHELCO FILTERS - MODELS RHB & RHS INSTALLATION, OPERATION, MAINTENANCE MANUAL WARNING: The filter must be protected from freezing to prevent cracking, which would result in leakage. _____________________________________________________ MAXIMUM OPERATING PRESSURE 300 PSI (20.7 BAR) @ 200 F (93 C)
- Page 2 INSTALLATION, OPERATION, MAINTENANCE MANUAL MAINTENANCE Shelco filters generally require very little maintenance. The filter element should be replaced when the pressure drop across the filter reaches a maximum of 20 PSI. Your experience might dictate more frequent cartridge replacement. The gasket should be inspected and replaced if necessary at the time the cartridge is replaced.
