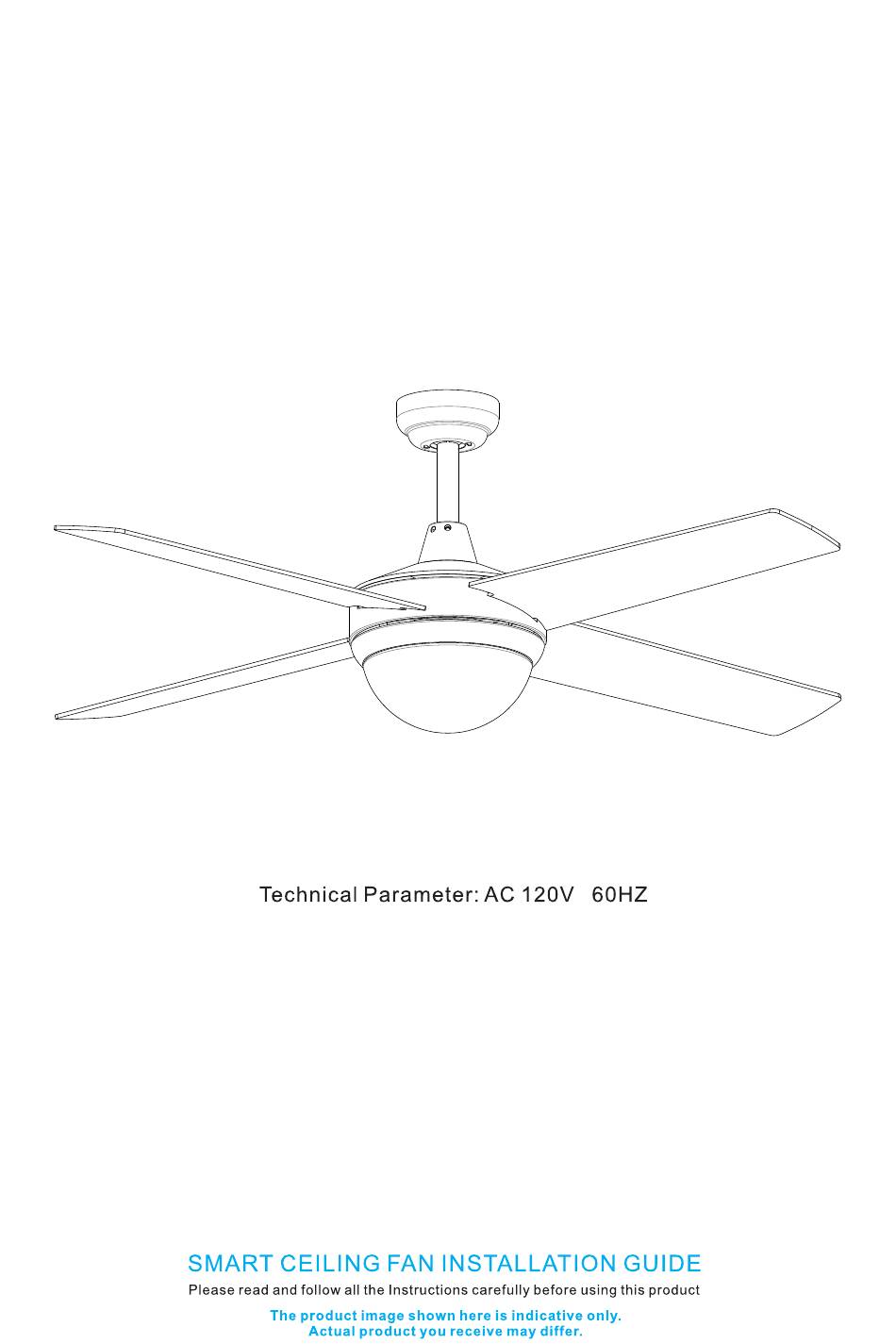

Summary of Contents for Smaair WGS-484CL
-
Page 2: Safety Guidelines
READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. IF UNCER TAIN, COUNSULT A QUALIFIED ELECTRICIAN. THANKYOU FOR YOUR PURCHASE Thank you for purchasing a product. To ensure correct function and safety, please read and follow all the instructions before using the product. SAFETY GUIDELINES: 1. - Page 3 Mounting Bracket Setscrew Downrod Canopy Blades Washesr Screws Nuts Hairclip Pin Fan Motor Assembly Clevis Pin Light Kit Glass Shade Wall Control Expansion Screw Screw spring Fabric Screws Setscrew stopper Witing cap Balance Pack for Blades Setscrew Screw Setscrew washesr washer washesr 13pcs...
-
Page 5: Installing The Blade
INSTALLING THE BLADE 1 )Use screws for blade and fabric washers to attach the blade holder to the motor assembly. 1)Remove clamp pin (1) and nuts (2), washesr (3), cross pin (4) from fan motor assembly (5). 2)Place downrod assembly (2) into canopy (1) . Feed motor wires through the downrod assembly (2). 3)Feed motor lead wires through downrod/canopy assembly . - Page 6 Carefully lift fan assembly onto mounting bracket. Rotate fan until notch on downrod ball (1) engages the ridge on the mounting bracket (2). This will allow for hands free wiring. Blue Wire Neutral Wire (White) Black Wire Gtounding Wire (Green) Ceiling Outlet Box Black Wire...
-
Page 7: Installing The Canopy
INSTALLING THE CANOPY Loosen the 2 screws on the bottom of mounting bracket but do not remove them. Raise the canopy up and align the keyholes on the bottom of the canopy with the 2 screws on the bottom of mounting bracket. - Page 8 O FF...
