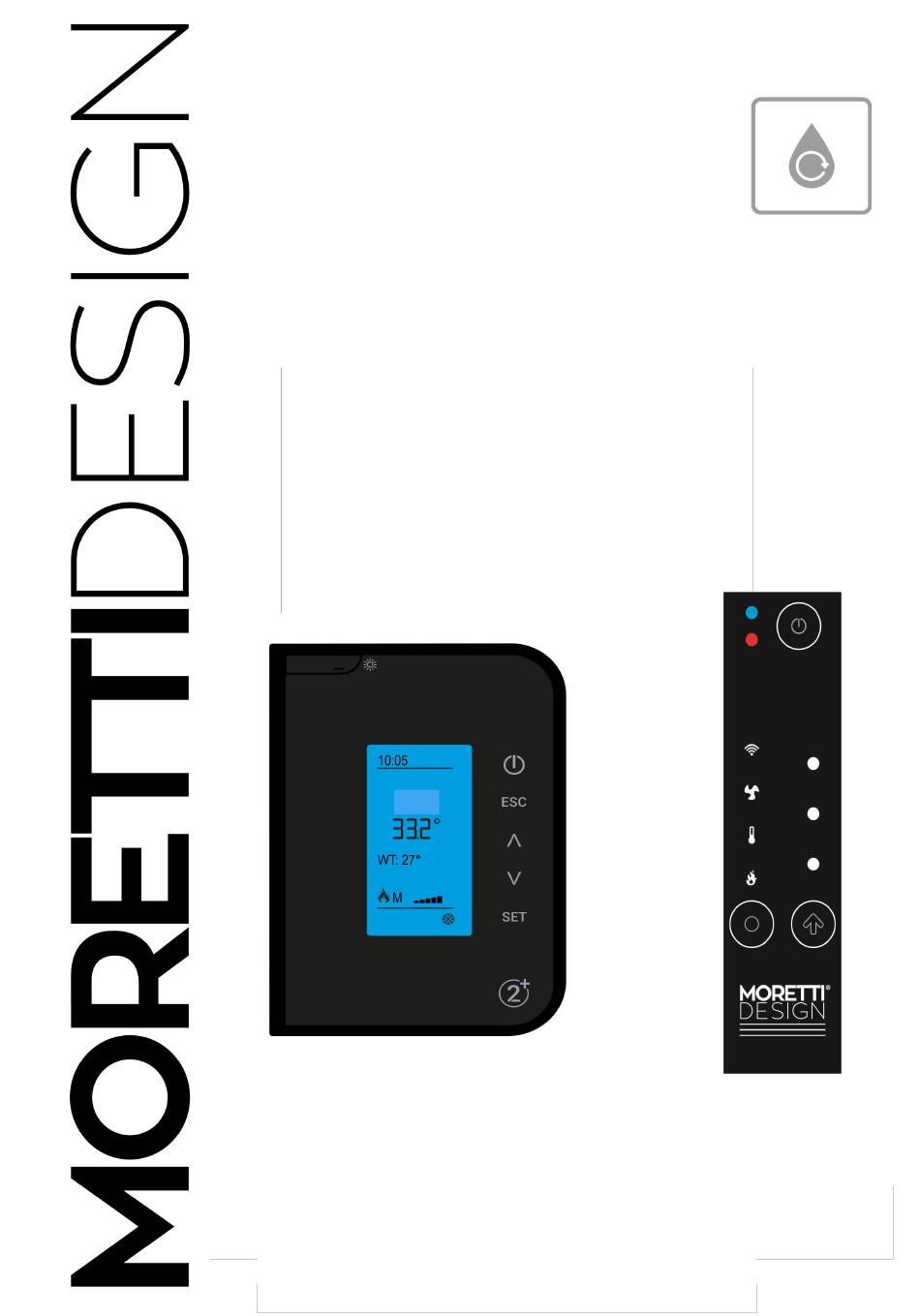

- Page 1 AQUA ALADINO CLESSIDRA ELEGANCE ERGONOMIC PRESTIGE TURBO TOP TURBO GLASS TURBO COMPACT VISION SLOT VISION DOLBY TECNIKA FOR HOME TECNIKA GLASS USER MANUAL 2022 Installation, use and maintenance...
-
Page 2: Table Of Contents
INDEX Thermostat ……..…………………………………………………..….. INTRODUCTION ……………………………………………………… Chrono …………….…………….…………………………………… General safety warnings ………………….………………………….. Settings …………..…………….…………………………………… DESCRIPTION …………………………………….………………….. Radio-Thermostat ...…………….…………………………………… Identification ……………………..…………………………………….. Radio-Standby ...………………………………………………… Description of the stove ……..….…………………….……………….. Summer-Winter …………………………………………………… INSTALLATION ...………………………..…………………………... Temperature scale …………….…………………………………… Supply conditions and unpacking ….……………………………..… Set Contrast ……..…………….……………………………………... -
Page 3: Introduction
Any use other than the purpose for which the hydro stove was built is prohibited. On all MORETTI DESIGN products, at the end of the assembly line a scrupulous check-up followed by a combustion test is carried out. General safety warnings... -
Page 4: Description Of The Stove
The advanced software allows for the user a more simple and immediate comprehension of the hydro stove functions. The presence of a thermostat on all MORETTI DESIGN products allows the Fume exhaust user to program the on/off switching function of the hydro stove. The large fuel tank, allows fuel fillings conveniently diluted over time. - Page 5 CHIMNEY FLUE INSIDE AN OLD CHIMNEY EXTERNAL CHIMNEY FLUE CORRECT CORRECT INSTALLATION INSTALLATION PROTECTION CHIMNEY WITH COVER PLATE INSULATION INSULATED CHIMNEY FLUE OPEN 45° CURVE OLD CHIMNEY FLUE “T” WITH INSULATED “T” INSPECTION WITH INSPECTION CAP CHIMNEY FLUE WITHOUT “T” CHIMNEY FLUE THROUGH OUTSIDE WALL IMPROPER IMPROPER...
-
Page 6: Filling The Heating System
CHIMNEY FLUE THROUGH OUTSIDE WALL EXTERNAL FREE CHIMNEY FLUE CORRECT IMPROPER INSTALLATION INSTALLATION PROTECTION INSULATED CHIMNEY FLUE “T” WITH INSPECTION CAP INSULATED CHIMNEY INSULATED FLUE “T” WITH INSPECTION “T” WITH INSPECTION INTERNAL CHIMNEY FLUE Warning: CORRECT The chimney must be constructed according to regulation stan- INSTALLATION dards. -
Page 7: Connecting To A System With Zone Valves
Pump breakdown: If the circulator stops, the system goes into alarm and Connecting to a system with zone valves stops (Er01, Er04). Leave at least one zone always open. We recommend installing an anti- condensation valve at 55 °C (mandatory in the case of direct connection Ignition failed: The system has 1 ignition attempt, if it is not successful to the system). -
Page 8: Pellet Loading
INTERRUTTORE In any case, in the presence of NOT OPTIMAL combustion with the automatic combustion regulation system activated, it is recommended to contact an authorized MORETTI DESIGN technician. Calibration (Item: Customizations - Service) FUSIBILE Note: On models where the FCS is installed, the automatic combustion correction range can be adjusted in the FCS item. -
Page 9: Fire Protection
• Regulation on models with FCS: First of all check the closure FIRE PROTECTION of the front door and tightness of the gaskets. Increase the MCS One must be extremely cautious in the vicinity of fire, flames, heat, elec- Calibration setting one point at a time (from 0 to +5) until the tricity and other forms of energy, when using substances that can cause example 3 condition is achieved. - Page 10 - TOUCH DISPLAY (ONLY FOR TECNIKA FOR HOME) ERROR DATE MAIN TEMPERA- OPERATING MAIN THER- CODE AND TIME TURE STATUSES MOSTAT HOMEPAGE DISPLAYS Tue 12 Oct 2009 ON/OFF SETTINGS CUSTOMISATIONS INFORMATION CHRONO To unlock the standby screen, press on the display for 5 seconds and the homepage will appear.
- Page 11 Thermostats MAIN CONTROL DISPLAYS Thermostats ON/OFF Menu Boiler Thermostat Buffer Thermostat Boiler Thermostat Slide to turn OFF After selecting Boiler Thermostat, it is possible to set the water temperature that the boiler must reach. It is possible to set a value between 53°C Press on the screen with your finger and and 72°C.
- Page 12 - Summer-Winter Customizations Menu Menu that allows you to select the Summer-Winter operating mode (if enabled). Customization Settings Time and date Settings Service System Menu Display Menu Language Remote Control Summer-Winter Summer Summer-Winter Winter Winter Settings Service Settings Time and date Counters Language Reset Cleaning...
- Page 13 Chrono Menu Display Menu Chrono - OFF Brightness Minimum Brightness Standby display Control panel address Daily Weekly Weekend Cleaning Sound Delete error list Node list Wallpaper Control panel info From this menu you can access the Touch Display settings. Menu used to program the automatic boiler switch on and switch off time slots.
- Page 14 Daily Weekend Monday - Friday Saturday - Sunday As shown in the figures, the switch on and switch off times have been programmed for the 3 available time slots: Select between the periods “Monday-Friday” and “Saturday-Sunday”. 1. 08:15 - 09:45 There are 3 phases for “Monday-Friday”...
- Page 15 Error list TOUCH DISPLAY (ONLY FOR TECNIKA TURBO GLASS) Wed 09 Oct 2019 Tue 08 Oct 2019 DESCRIPTION OF CONTROLS Mon 07 Oct 2019 Wed 10 Jul 2019 Mer 09:55 Tue 09 Jul 2019 Normale 59° Pellet 1 Example of Blocking Error POWER SERVICE SYSTEM WATER...
-
Page 16: Chrono
(Only with configuration 2,3,4) Storage Tank Thermostat The menus are the following: It activates only if one of the hydraulic configurations is selected. It al- Simply press P3 to enter the following Menu lows you to change the temperature of the thermostat connected to a Storage Tank (see HYDRAULIC SYSTEM MANAGEMENT on page 17). -
Page 17: Summer-Winter
Program Mon-Fri Enter edit mode by pressing P3 and select the desired item by using the keys P4 and P6, enter by pressing P3. 00 : 00 00 : 00 V 00 : 00 00 : 00 Select a day of the week to be programmed (3 switch on/ Daily: 00 : 00 00 : 00... -
Page 18: Service
Summer-Winter Attention: to be used only by an authorized MORETTI DESIGN techni- cian It allows you to set the system in Summer mode (domestic hot water only, no heating) or Winter mode (domestic hot water and heating). It is... - Page 19 Descrizione Tasti - DISPLAY RADIO (AQUA) Cod. PSYSI04000005 Introduction Tasto Funzione Descrizione The radio display (black) is a wireless device for the stove it is associa- ted to and it can be used to manage and monitor the system's functions By pressing the button when the main in real time.
- Page 20 Power (Pellet) OPERATING STATUSES The power can be changed directly from the remote control following this Check Up procedure: This phase begins as soon as the On/Off button is pressed. During this phase, the system cleans the burn pot by operating the smoke fan at - Press the key on the remote control to enter the power menu maximum speed and simultaneously checks the probes and safety...
- Page 21 Chrono • To scroll through the items of the menu, use the SET key; to change the data, use the keys Exit by pressing ESC. Potenza Power Modality Thermostats Program Chrono Information Settings Menu Service Power Modality: To turn on the stove via Chrono, select the mode after pro- Thermostats gramming the switch on and switch off times.
- Page 22 Radio Standby: Menu to switch off the radio display completely. Weekend Select between the periods “Monday-Friday” and “Saturday-Sunday”. Power Radio Thermostat There are 3 phases for “Monday-Friday” and 3 phases for “Saturday- Radio Sunday”. Thermostats Standby Radio Standby Week-End Program Weekend Chrono Summer-Winter...
-
Page 23: Wikey Thermostat
Date and Time Secondary Information This menu allows you to set the current date and time. This menu allows you to view some of the system operating para- meters. • To scroll through the items of the menu, use the keys , to confirm the data press SET. -
Page 24: Change Code
To change the Menu to set power management in automatic mode. code and associate the radio display to a specific stove: Attention: to be used only by an authorized MORETTI DESIGN techni- cian Counters... -
Page 25: Wifi Configuration
Click Press and hold -WIFI CONFIGURATION To configure thermo-stoves equipped with a WiFi module, it is necessary to:download the 4HEAT application, register your credentials and wait for Press for 3 seconds:Power On / the confirmation emails. Then start the application and follow the set-up Power Off / Reset Block procedure step by step using the 4HEAT application. -
Page 26: Plumbing Configuration
PLUMBING CONFIGURATION It is possible to integrate the hydro stove to one of the following hydraulic system configurations considered most suitable. To set the configuration, an authorized technician must be contacted. CONFIGURATION 0 The configuration show in the figure is set. This is the standard setting. If the domestic hot water kit is installed, it is not necessary to change the setting on the hydro stove. - Page 27 CONFIGURATION 2 The configuration shown in the figure is set. Connections on the control unit For the models: ALADINO, ELEGANCE, CLESSIDRA, ERGONOMIC, COMPACT, VISION, SLOT VISION, DOLBY Probe ACS/ Electrovalve (P2) DHW (S3) 17: towards heating system 18: towards domestic hot water Connections on stove’s rear panel...
- Page 28 CONFIGURATION 4 The configuration shown in the figure is set. Connections on the control unit For models: ALADINO, ELEGANCE, CLESSIDRA, ERGONOMIC, COMPACT, VISION, SLOT VISION, DOLBY Probe Puffer/Boiler (S1) Pump (P2) Connections on stove’s rear panel For models: TECNIKA TURBO GLASS, TECNIKA FOR HOME, TURBO TOP, TURBO GLASS, PRESTIGE...
- Page 29 CONFIGURATION 6 The configuration shown in the figure is set. Connections on the control unit For models: ALADINO, ELEGANCE, CLESSIDRA, ERGONOMIC, COMPACT, VISION, SLOT VISION, DOLBY Pump (P2) Connections on stove’s rear panel For models: TECNIKA TURBO GLASS, TECNIKA FOR HOME, TURBO TOP, TURBO GLASS, PRESTIGE...
- Page 30 CONFIGURATION 10 The configuration shown in the figure is set. Connections on the control unit For models: ALADINO, ELEGANCE, CLESSIDRA, ERGONOMIC, COMPACT, VISION, SLOT VISION, DOLBY Probe (S1) Puffer/Boiler Probe ACS (S3) Pump (P3) Electrovalve 17: towards heating system 18: towards domestic hot water Connections on stove’s rear panel...
- Page 31 CONFIGURATION 11 The configuration shown in the figure is set. Connections on the control unit For models: ALADINO, ELEGANCE, CLESSIDRA, ERGONOMIC, COMPACT, VISION, SLOT VISION, DOLBY Probe (S1) Puffer/Boiler Probe ACS (S3) Pump (P3) Electrovalve (P2) 17: towards heating system 18: towards domestic hot water Connections on stove’s rear panel...
-
Page 32: Errors And Solutions
ERROR LIST AND SOLUTIONS Code Description Cause Operations to be performed Solutions Reset the thermostat, unblock and If the pump is broken call an au- PUMP BLOCKED OR BROKEN verify the proper function of the thorized technician pump Reset the thermostat, unblock and AIR IN THE SYSTEM verify if there is any air in the sys- Discharge the air from the system... - Page 33 Code Description Cause Operations to be performed Solutions Unblock and turn on the stove, if DIRTY STOVE the error reoccurs, the stove prob- ably needs to be cleaned Turn off due to high If the error persists, contact an Er05 fume temperature authorised technician If the fume temperature is high...
- Page 34 Code Description Cause Operations to be performed Solutions Turn off due to FLOWMETER INCORRECTLY If the error persists, contact an Er39 Unblock and turn on the stove flowmeter error CONNECTED OR BROKEN authorised technician Turn off due to mini- mum air flow in Check FLOWMETER INCORRECTLY If the error persists, contact an Er41...
-
Page 35: Electronic Control Unit
Screw Feeder Gear Motor Encoder Tube Bundle Cleaning Motor Smoke Probe Pump Terminals 27-28-29-30 Leave Disconnected Thermostatated Output WIKey / For Aladino models with CP Series Control Panel USB Stick built-in WI-FI 4HEAT system Code PSYSF09000002 Remote control Code PSYSI04000005... - Page 36 ELECTRONIC CONTROL UNIT Code PSYSS04000003 Output to be configured Output to be configured Output to be configured Output to be configured Remote Control Cod. PSYSI04000005...
- Page 37 Combustion Fan Burn Pot Cleaning Motor Tube Bundle Cleaning Motor Spark plug Screw Feeder Safety Thermostat Pressure Switch Tube Bundle Cleaning Motor Pump WIKey / For Aladino models with built-in WI-FI 4HEAT system Code PSYSF09000002 Solenoid Valve Thermostated Out- Pump 3...
- Page 38 Puffer Probe/ Flowswitch IN11 Input IN11 IN12 Input IN12 IN13 Input IN13 USB Connector RS232 Serial connector / External wifi 4heat connection system RS485 WiKey connector / For Aladino models with integrated Wifi 4Heat System CP Series Command Panel connector...
-
Page 39: Maintenance
Warranty certification In addition to the annual maintenance that must be carried out by author- Thanking you for choosing our product, MORETTI DESIGN invites you ized personnel, frequent cleaning procedures such as cleaning the burn- to consult the user manual and to read the following warranty conditions... - Page 40 Moretti Fire s.r.l. ITALY www.morettidesign.it The Moretti fire s.r.l. assumes no responsibility for any errors in this manual and the right to modify without notice features of its products REV. 07/2022 ENG...
