IND110

Load Cell Signal

Converter

Technical Manual

17041600A

(5/04).00

Table of Contents

Need help?

Do you have a question about the IND110 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vicpas IND110

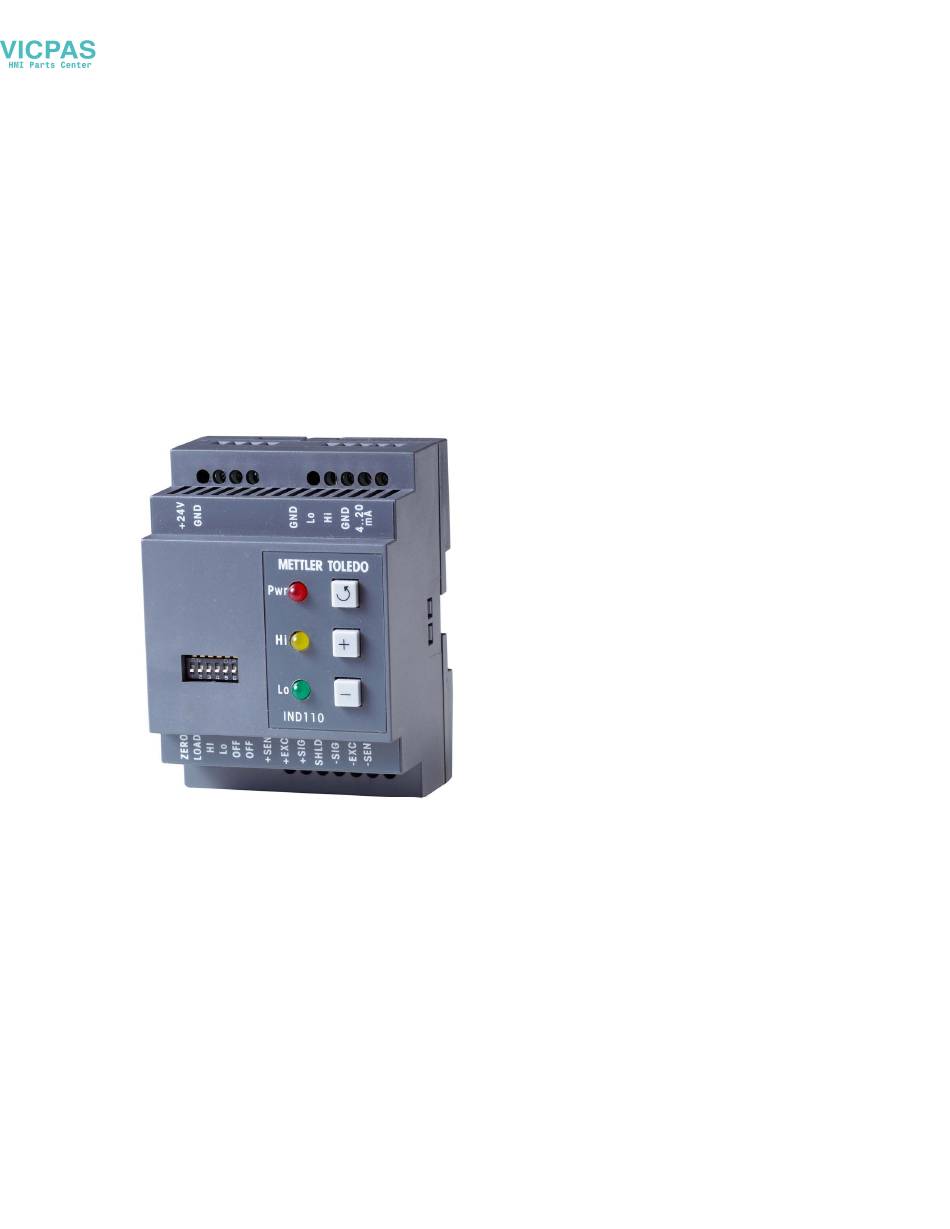

Page 1 IND110 Load Cell Signal Converter Technical Manual 17041600A (5/04).00...
Page 3 • SAVE this manual for future reference. WARNING! TO AVOID DAMAGE TO THE PCB OR LOAD CELL, REMOVE POWER FROM THE IND110 TERMINAL AND WAIT AT LEAST 30 SECONDS BEFORE CONNECTING OR DISCONNECTING ANY WIRES. CAUTION BEFORE CONNECTING/DISCONNECTING ANY INTERNAL ELECTRONIC COMPONENTS OR...
Page 4 Model/Type:IND110 to which this declaration relates is in conformity with the following standard(s) or other normative document(s). auf das sich diese Erklärung bezieht, mitder/den folgenden Norm(en) oder Richtlinie(n) übereinstimmt.
Page 5 © METTLER TOLEDO 2004 No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose without the express written permission of METTLER TOLEDO. U.S. Government Restricted Rights: This documentation is furnished with Restricted Rights.
Page 6 COPYRIGHT ® METTLER TOLEDO is a registered trademark of METTLER TOLEDO. All other brand or product names are trademarks or registered trademarks of their respective companies. METTLER TOLEDO RESERVES THE RIGHT TO MAKE REFINEMENTS OR CHANGES WITHOUT NOTICE. FCC Notice This device complies with Part 15 of the FCC Rules and the Radio Interference Requirements of the Canadian Department of Communications.
Page 7 For your notes...
Page 8: Table Of Contents
Contents Chapter 1.0 Contents Introduction ........1-6 Chapter 1.0 Introduction ..........1-1 Chapter 2.0 Models .............2-1 Chapter 3.0 Specifications ...........3-1 Chapter 4.0 Dimensions ..........4-1 Chapter 5.0 Installation ..........5-1 Load cell connections ..............5-1 Load cell Selection ..............5-2 Module mounting details ............. 5-3 Analog Output 4/20 mA Connections ..........
Page 9: Introduction
In addition to the 4/20 mA output signal, two discrete setpoint outputs are provided for high and low level signaling. Mechanically, the IND110 is self contained in a plastic housing for installation onto a 35 mm DIN rail or optionally installed in either a stainless steel IP66 enclosure or a...
Page 10 IND110 Technical Manual For your notes...
Page 11: Models
Chapter 2.0 Models METTLER TOLEDO offers one standard plastic housing model of the IND110 Signal Converter. The IND110 is not suitable for mounting into a harsh environment without a protective enclosure. Figure 1 An optional stainless IP66 rated enclosure with gasket is available separately and is shown below.
Page 12 IND110 Technical Manual An optional cast aluminum explosion proof (Flameproof) enclosure is available when installation in hazardous areas is required by ordering part number 17041800A. It is rated by the manufacturer for use in a Class I Group C,D; Class II Group E,F,G; Class III environment when installed per the manufacturer’s recommendations.
Page 13: Specifications
Chapter 3.0 Specifications 3.9 x 2.9 x 2.2 inches Physical Dimensions 100 x 74 x 57 mm (W x D x H) Enclosure Material Plastic DIN rail (35 mm) Mounting 20 to 28 VDC, 300 mA max, 8 watts External DC Power Class 2 power supply Requirements Excitation:10 VDC, 120mA max,(4 –...
Page 14 IND110 Technical Manual For your notes...
Page 15: Dimensions
Chapter 4.0 Dimensions METTLER TOLEDO IND110 Module Dimensions Figure 4 7.0” (177.8) 6.25” (158.75) 2.75” 4.0” (69.9) (101.6) 7.5” (190.5) Stainless Steel Enclosure Dimensions Figure 5...
Page 16 IND110 Technical Manual 7.0” (177.8) 7.75” (196.9) 6.75” (171.5) 6.0” (152.4) 5.0” (127) 8.0” (203.2) Explosion Proof Enclosure Dimensions Figure 6...
Page 17: Installation
Installation Load cell connections Up to (4) 350 Ohm full bridge strain gauges may be connected in parallel. The excitation voltage supplied by the IND110 is 10 VDC with a source current of 120mA max. WARNING THE IND110 IS NOT INTRINSICALLY SAFE. THE LOAD CELL LINES MUST NOT BE OPERATED IN A HAZARDOUS AREA WITHOUT AN APPROVED INTRINSIC SAFE BARRIER.
Page 18: Load Cell Selection
IND110 Technical Manual Load cell Selection Before any load cells are connected, determine if intended load cells will work correctly. 1. First identify • Full scale system capacity. Example: If system span is 0 -10,000 lbs, then 10,000 is the capacity.
Page 19: Module Mounting Details
IND110 Technical Manual Module mounting details Enclosure installation details The enclosures illustrated below do not address hardware mounting/ wiring needs. The stainless enclosure has two plastic cord bushings to pass cables into the enclosure. The plugged openings are provided for wiring flexibility, if needed. The installer must provide correct fittings according to National and local codes.
Page 20 IND110 Technical Manual The views below illustrate module installation into the Nema 7/9 optional explosion proof enclosure. It snaps onto the DIN rail in the same manner as above but because of space limitations, snap the module onto the DIN rail first and then install into the enclosure.
Page 21: Analog Output 4/20 Ma Connections
Test for process control equipment ground continuity before wiring is completed. If it is not grounded, connect the IND110 at the load cell shield terminal to earth ground. If it IS connected to ground, be sure the IND110 wiring is NOT grounded.
Page 22: Power Supply Wiring
IND110 Technical Manual Power supply wiring The IND110 is provided with 20-28 VDC power input terminals. The user must provide a class II rated 24 VDC power supply. A class II power supply is voltage and current limited so short circuit conditions do not become dangerous.
Page 23: Setpoint Output Connections
IND110 Technical Manual Setpoint Output Connections The IND110 has two open collector transistor outputs. The LO output is turned ON when the load cell signal is below the LO setpoint and OFF (open collector state) when it is equal to or above the LO setpoint. The HI output operates in an identical manner controlled by the HI setpoint.
Page 24: Calibration
IND110 Technical Manual Calibration Setpoint Output 4/20 mA DC Power Output Input METTLER TOLEDO SET key Power ON LED Hi Setpoint LED INC key DEC key Calibration switches Lo Setpoint LED IND110 Analog load cell input OPERATING SWITCHES LED status...
Page 25 IND110 Technical Manual Calibration Calibration is done with DIP switches 1-4 and the three buttons. For normal weighing all the DIP switches are OFF. For calibration, DIP switches 1-4 are switched ON as required to calibrate the weigh mode ZERO, weigh mode SPAN, LO setpoint cutoff and HI setpoint cutoff.
Page 27: Service
Chapter 6.0 Service Before servicing an IND110, make sure the power has been removed. There are no field serviceable parts within the IND110. WARNING DISCONNECT ALL POWER TO THIS UNIT BEFORE INSTALLING, SERVICING OR CLEANING. FAILURE TO DO SO COULD RESULT IN BODILY HARM...
Page 28 For your notes...
Page 30 1900 Polaris Parkway Columbus, Ohio 43240 www.mt.com P/N: 17041600A ® METTLER TOLEDO is a registered trademark of Mettler-Toledo, Inc. ©2004 Mettler-Toledo, Inc. Printed in USA 17141600A...
