Summary of Contents for BluStream HD11AU
- Page 1 HD11AU User Manual RevA1_HD11AU_User_Manual_201209...
- Page 2 HD11AU USER MANUAL Contents Thank you for purchasing Introduction this product. For optimum performance and safety, Features please read these instructions care- fully before connecting, operating or Panel Descriptions adjusting this product. Please keep this manual for future reference. Specifications...
- Page 3 HD11AU USER MANUAL Introduction Our HD11AU is the perfect solution for either de-embedding or embedding audio within the HDMI signal path. This solution allows you to breakout up to 5.1ch audio signals. Connect the HD11AU between your source and display via HDMI, then select whether de-embedding or embedding audio is required.

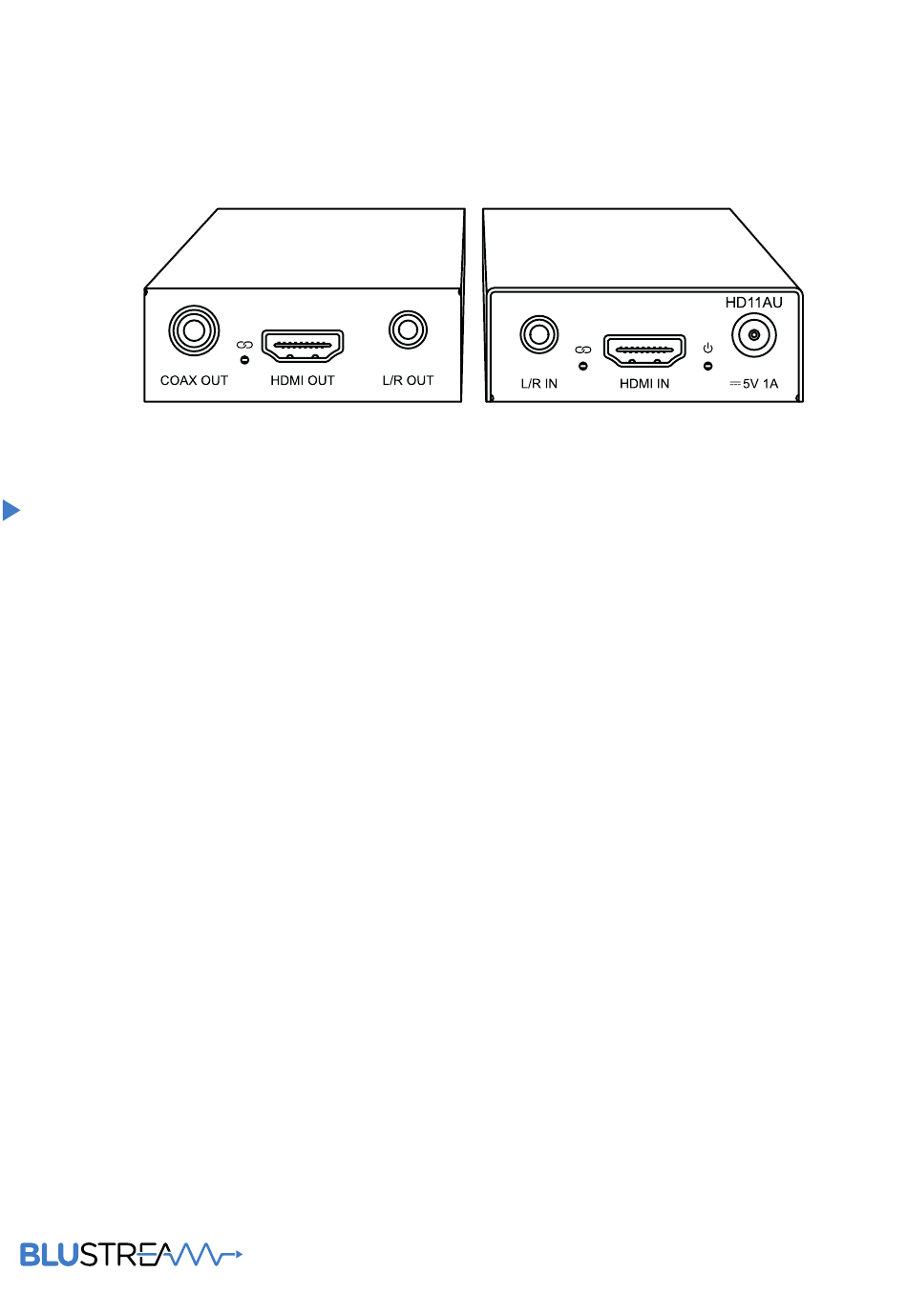

- Page 4 HD11AU USER MANUAL Panel Descriptions Front Panel Back Panel Left / Right Analogue audio input - 3.5mm Stereo jack HDMI output HDMI input Left / Right Analogue audio output. Extract audio from HDMI input and convert to 2ch. NOTE: Source audio must Power port –...
- Page 5 Operating Temperature: 32°F to 104°F (0°C to 40°C) Storage Temperature: -4°F to 140°F (-20°C to 60°C) Package Contents • 1 x HD11AU • 1 x 5V/1A DC Power Supply • 1 x Mounting Kit • 1 x User Manual Maintenance Clean this unit with a soft, dry cloth.
- Page 6 HD11AU USER MANUAL www.blustream.com.au www.blustream-us.com www.blustream.co.uk...
- Page 7 HD11AU USER MANUAL Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk...
- Page 8 www.blustream.co.uk...
