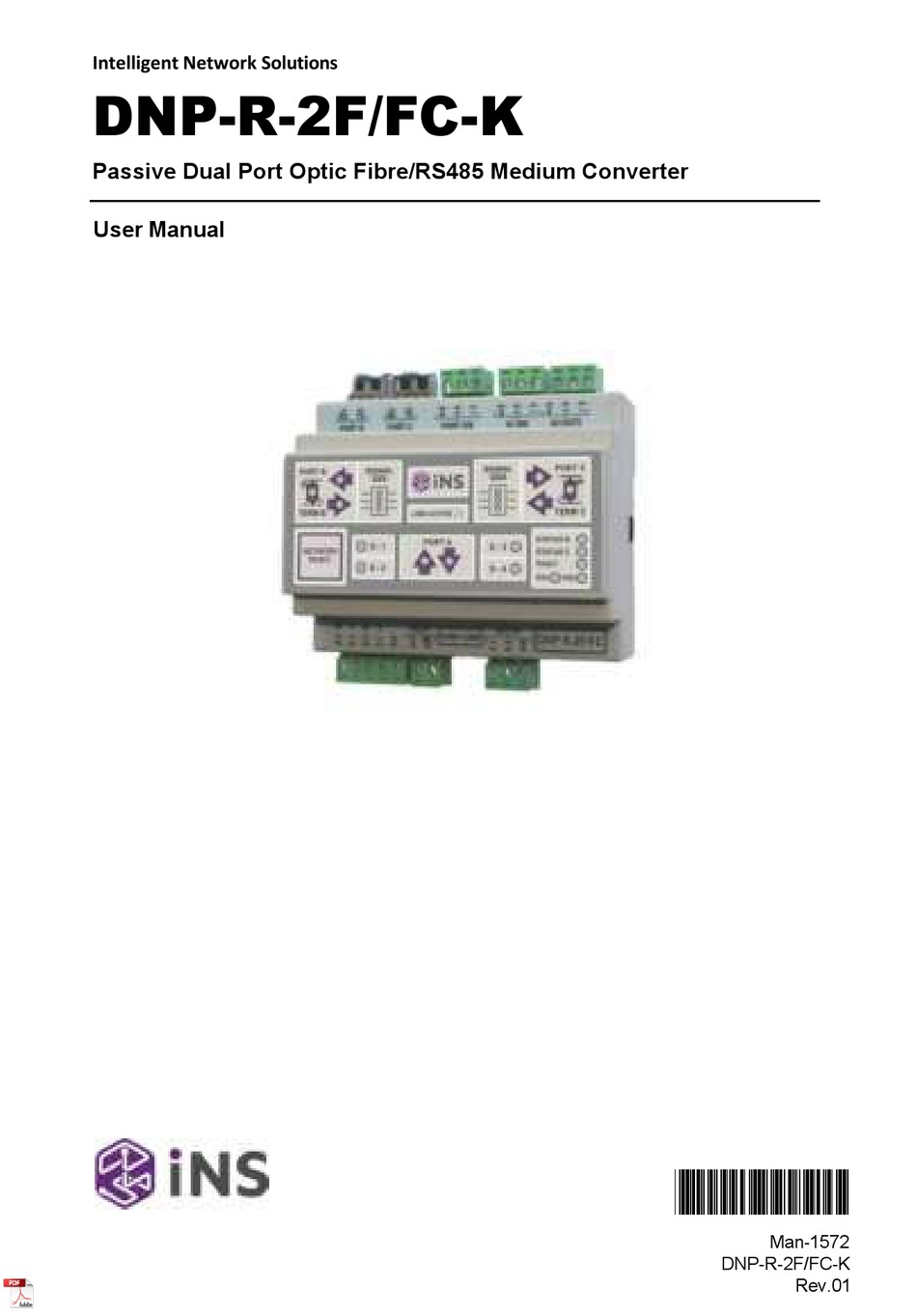

- Page 1 Intelligent Network Solutions DNP-R-2F/FC-K Passive Dual Port Optic Fibre/RS485 Medium Converter User Manual *Man-1572* Man-1572 DNP-R-2F/FC-K Rev.01...
- Page 2 Under no circumstances shall Kentec be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. More information about Kentec can be found at the following Internet address: http://www.kentec.co.uk Man-1572 DNP-R-2F/FC-K...
-
Page 3: Prior To Installation
If the unit is not working properly, contact the place of purchase, nearest Kentec distributor office, or Kentec Tech support. Maintenance No maintenance is required, as long as the unit is used as intended within the specified conditions. Man-1572 DNP-R-2F/FC-K... -
Page 4: Agency Approvals And Standards Compliance
EN 61000-6-4, Emission Standard (Industrial Environments) EN 60950, IT Equipment Safety Table 1 Ratings Power 18 to 36V (24V DC nominal); 170mA (at 24V) Temperature (Operating) -10 to 70°C Temperature (Storage) -40 to 70°C Ingress protection (IP) IP20 Table 2 Man-1572 DNP-R-2F/FC-K... -
Page 5: Safety Control Drawing
In / Out / - line RS-485 – IO Interface Umax = ± 5Vpk In / Out / + line RS-485 – IO Interface Imax = ± 60 mA Screen/Shield RS-485 – IO Interface Data rate: Table 4 Man-1572 DNP-R-2F/FC-K... -
Page 6: Functional Description
Table 10. When used to support an optic fibre link in a class A bus configuration, one of the DNP R-2FC modules would require a port swap to support the standard port B to C connection format around the closed ring. An example of this is illustrated in Figure 10b. Man-1572 DNP-R-2F/FC-K... - Page 7 (RS-485). The INS modules are transparent to the CIE protocols, only routing and analysing the data structure but not the content. The maximum standard transmission rate supported on the CIE ports (A1 and A2) is 115.2 kbit/s for RS-485. (Higher transmission rates are possible with OEM support). Man-1572 DNP-R-2F/FC-K...
-
Page 8: Interface Specifications
Data rate Full speed device mode as per USB 2.0 specification Data format As per USB specification Connector type USB micro B (device) - cable type micro B required Implementation mode Slave Protection Transient voltage protection Table 8 Man-1572 DNP-R-2F/FC-K... - Page 9 There is NO fault on port C, but INSUFFICIENT DATA activity. Status port C There is a signal QUALITY FAULT present on the link connected Amber to port C. FLASH Green Port C is in a state of establishing the link Man-1572 DNP-R-2F/FC-K...
- Page 10 DNP R-2F/FC product and any non-signed transceivers must NOT be used with the DNP R-2F/FC. Any use of SFP transceivers with the product will void the warranty on the product as it will affect the operation of the product. Man-1572 DNP-R-2F/FC-K...
-
Page 11: Dip Switch Settings
All modems are shipped with the 120 Ohm termination jumpers (120Ω JMP) inserted to introduce a standard 120 Ohm termination on the RS-485 ports. Note* The Kentec Fire Alarm Panels require the 120 Ohm jumpers to be inserted. 120Ω SW 1 Figure 4: Rotary switch Man-1572 DNP-R-2F/FC-K... -
Page 12: Rotary Selector
Port C - Fibre Port B - Fibre Taktis Port C – RS-485 Port B - Fibre Syncro Port C - Fibre Port B – RS-485 Syncro Port C - Fibre Port B - Fibre Syncro Port C – RS-485 Man-1572 DNP-R-2F/FC-K... - Page 13 Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Table 10 Man-1572 DNP-R-2F/FC-K...
-
Page 14: Configuration And Installation
Configuration and Installation The DNP R-2F/FC modules only support passive mode routing. All communication settings are configured using the rotary switch. Set for the respective fire alarm panel by setting the Rotary switch 1 in Table 10. Man-1572 DNP-R-2F/FC-K... -
Page 15: Field Applications
This application is useful for the following: converting a radial system to a redundant ring on the existing fibre introducing a temporary solution when a single fibre fails on a link. Figure 6: DNP R-2F/FC with BiDi SFP transceivers Man-1572 DNP-R-2F/FC-K... - Page 16 (cable) needs to be earthed on one of the two sides to provide a path to ground any coupled signal interference. With both sides grounded, an unwanted path for circulating currents is introduced. This single point grounding is displayed in Figure 7. Figure 7: Screen connections on an RS-485 cable link Man-1572 DNP-R-2F/FC-K...
- Page 17 Transceiver types supported: Multi-mode (MM) Single Mode (SM) Bi-directional (BiDi) Figure 8: Connections of Mixed Optic Fibre Types The transceivers are supplied with a range of drive capability. (e.g. 550m, 2km, 10 km, 20 km, 40km, 80km etc.) Man-1572 DNP-R-2F/FC-K...
- Page 18 The DNP R-2F/FC module supports dual power supplies with automated switchover. A The typical configuration for connecting and auxiliary and backup battery power supplies is illustrated in Figure 9. Figure 9: Example of a configuration for redundant power supply Man-1572 DNP-R-2F/FC-K...
-
Page 19: Earth Terminal
Document Number Application Note Network Redundancy with DNA R-1 & DNA R-2 502-DNARIE01-A-01 Application Note Multi-fault tolerant networks using DNA R-1 & DNA R-2 502-DNARBIE0-A-01 Application Note Network Bridge Redundancy with DNA R-1 & DNA R-2 502-DNARBIE1-A-01 Table 11 Man-1572 DNP-R-2F/FC-K... -
Page 20: Wiring Connections
Figure 10a and 10b illustrates the wiring connections for the DNP R-2F/FC modules. Note: The port connections must have Port B connected to Port C as presented in the diagram. Figure 10a: Passive Mode Settings and Dual Port CIE Connections Man-1572 DNP-R-2F/FC-K... - Page 21 Figure 10b: Passive Mode Settings and Dual Port CIE with Hybrid Connections Man-1572 DNP-R-2F/FC-K...
- Page 22 Figure 10c: Passive mode settings and single port CIE Connections for a radial link Man-1572 DNP-R-2F/FC-K...
-
Page 23: Sfp Transceivers
Figure 11a: INS010 – Multimode transceiver Figure 11b: INS011 – Single mode transceiver Figure 11c: INS012 – Single mode Bi-directional transceiver (To pair with the INS013) Figure 11d: INS013 – Single mode Bi-directional transceiver (To pair with the INS012) Man-1572 DNP-R-2F/FC-K... - Page 24 Figure 12: INS LED Indication Man-1572 DNP-R-2F/FC-K...
