AAP HM-MINI-12V Instructions

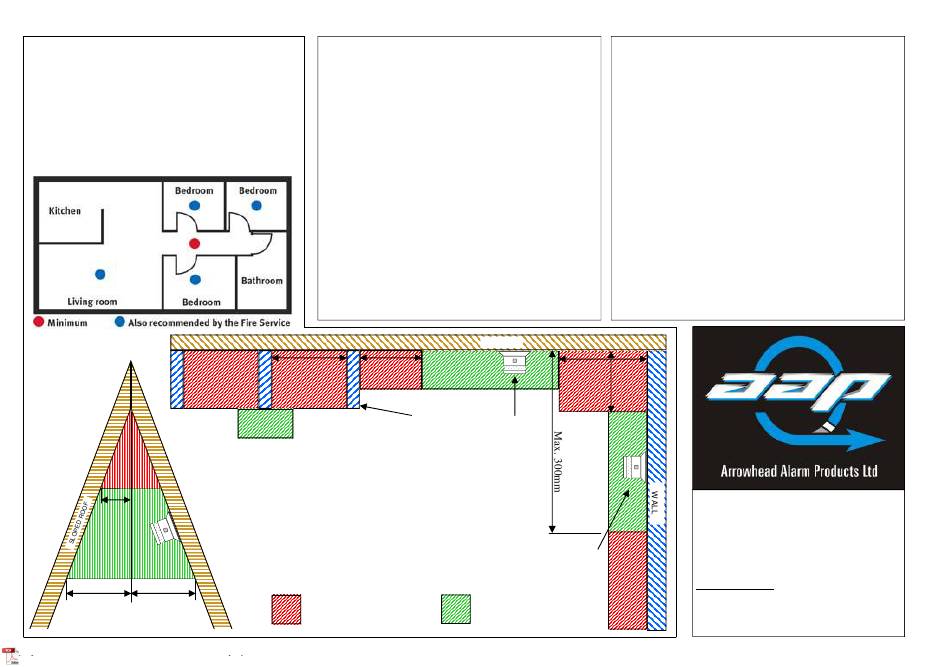

Suggested Mounting Locations
Smoke alarms must be located in escape routes on
all levels within the household unit.
On levels containing sleeping spaces, they must be
installed within the sleeping space, or within
3 metres of every sleeping space door and they must
be audible through closed doors.
Always Refer to NZS 4514: 2009 or the latest
standard for full installation recommendations.
Min.
200mm
500mm 500mm
Operation & Testing
Pressing the Test Button will activate test mode, trig-
gering both the Relay and the Buzzer. The HM-MI NI -
12V smoke detector should be tested every month.
The smoke detector sounder will automatically reset,
when all the smoke has cleared.
The alarm system sounders may need to be
deactivated from the control keypad.
Hush feature.
activated, pressing the test button for 1 second, will
silence that smoke detectors sounder. This will not
hush the controllers, sounders or other smoke detec-
tors connected.
When using any aerosol smoke detector tester, please
follow all instructions provided on the can.
I mproper use may result in degraded detector
performance.
900mm
Min.
or less
200mm
Note. Smoke Detectors should be
mounted a minimum of 400mm away
from Air Con. or forced air vents.
Test at least once a month.
Always Refer to NZS 4514: 2009 or the latest
standard for full installation recommendations.
= DON'T FI T AREA
(DEAD AI R SPACE)
When the smoke detector has been
CEI LI NG
Min.
200mm
Beams, joists and
BEST
exposed rafters
LOCATI ON
deeper than
460mm are
treated as walls
ACCEPTABLE
LOCATI ON
= MOUNTI NG AREA
HM-MI NI -12V
AUTO RESETTI NG SMOKE DETECTOR
Specifications
Detection Type Photoelectric Chamber
Power Source 9-16 Volts DC
Standby Current 5mA
Alarm Current 25mA
Buzzer Output 85db @ 3 meters
Output Relay N/ O and N/ C Contacts
50mA max
Dimensions 51mm x
Ø
64mm
Standards: GB4715-2005, EN14604, UL217
Min.
100mm
ARROWHEAD ALARM PRODUCTS Ltd.
344b Rosedale Rd,
Albany,
Auckland.
Ph. 09 414 0085
Fax. 09 414 0088
www.aap.co.nz
v1.04
(2K2 EOL fitted)
Ø
45mm
(smoke)
(base)
