Summary of Contents for JJRC Q65
- Page 1 AGE 8+ 1:10 2.4G 4WD RC OFF-ROAD MILITARY TRUCK *Please read this manual carefully before operation and keep it properly for future reference.

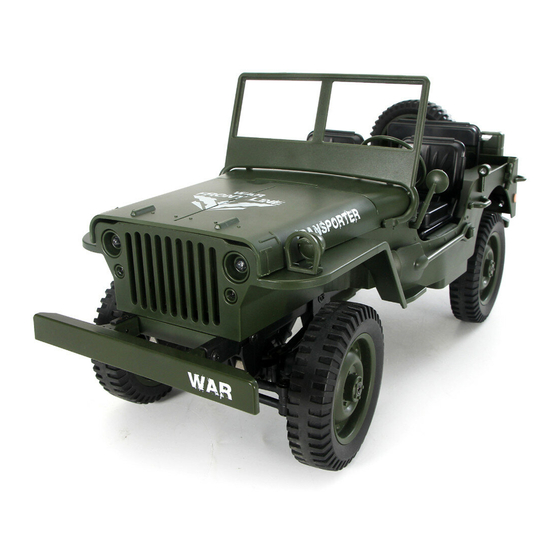

- Page 2 KNOW YOUR TRANSPORTER-6 With the 2.4G remote control technology adopted, TRANSPORTER-6 can be controlled from the remote controller to move forward and backward, turn left and right, speed up and operate more freely. Built with LED lights for night navigation, wider tires for better grip, powerful motor for strong power and differential for smooth driving, the RC truck offers you a superior racing experience full of excitement and thrill.
-
Page 3: Included Accessories
INCLUDED ACCESSORIES TRANSPORTER-6 x1 Remote Control x1 (Battery Included) USB Charger x1 Phillips Screwdriver x1 AGE 8+ 1:10 2.4G 4WD RC OFF-ROAD MILITARY TRUCK *Please read this manual carefully before operation and keep it properly for future reference. User Manual x1 Notes: Please check the number of accessories carefully (as shown above). -
Page 4: Optional Accessories
OPTIONAL ACCESSORIES Main Body Engine Cover Windshield Bracket Seat Accessories Tires Shock Absorber Parts Rear Front Driving Gear Straight Bridge Straight Bridge Frame Reduction Gearbox Reduction Motor Steering Parts Steering Rod Drive Shaft Set Front and Rear Shock Absorber Steering Server Anti-collision Parts Locating Plate... - Page 5 Steering Box Receiver Plate Fuel Tank Parts Car Body Parts Battery Pack Remote Control Car Hood...
-
Page 6: Remote Control Introduction
KNOW YOUR REMOTE CONTROL 1.Remote Control Introduction Turn Left Sideward Fine-tuning Turn Right Throttle Ratio Backward Power Switch Forward Power Light Battery Compartment Throttle Fine-tuning... - Page 7 2.Battery Installation for Controller ①Opening Battery Cover Push the remote control’s battery cover in the direction of the arrow. ②Loading Batteries AA batteries*2 Open the cover of battery compartment, insert two AA batteries (not included). Notes： 1.Ensure the polarity symbols on the batteries match the symbols inside the battery compartment.
- Page 8 3.Pairing the Remote Control with RC Car ①Pairing is the process of the remote control receiving the signal delivered by an exclusive ID from the transmitter. However, other radio signals are very likely to disrupt the process of pairing. Therefore, please turn off WiFi or 2.4G enabled devices before the pairing has been successful.
- Page 9 4.Body Battery Charging ①Take the battery out of the battery compartment. ②Insert the USB charging cable into the adapter and connect it with the battery with the battery’s positive and negative poles aligned correctly. The red light turns solid during charging and turns off when charging completes.
-
Page 10: Battery Charging
Battery lnstructions There is a certain risk when using battery. It may cause fire, body injury or property loss. Users must be aware of the risks and take full responsibility of using battery improperly. If battery leakage occurs, please avoid contacting your eyes or skin with electrolyte. -
Page 11: Operating Environment
OPERATION INSTRUCTIONS 1.Operating Environment Do not use in public roads or streets. This might cause accidents. Do not use in crowds or animals. Do not use in or around ponds or lakes in case the model falls overboard. Avoid operating near rivers, ponds or lakes to prevent remote control the car into the water. - Page 12 2.Operations ①Power on the RC truck and then the remote control (see figure ①). Ensure the remote control’s power light turns solid and the RC truck still. Slowly slide the trigger on the remote control (see as figure ②) to control the RC truck to move forward or backward.
- Page 13 REMOTE CONTROL DRIVING 1.Forward Pull the throttle trigger backward to control the RC truck to move forward. Forward Pull 2.Backward Push the throttle trigger forward to control the RC truck to move backward. Backward Push...
- Page 14 3.Turn Left Turn the steering to the left to control the RC truck to turn left. 4.Turn Right Turn the steering to the right to control the RC truck to turn right.
-
Page 15: Fine Tuning
5.Fine-tuning If the RC truck yaws, press the fine-tuning button to fine-tune its direction (shown as the picture). Right Fine-tuning Left Fine-tuning Practise! Choose the area like the tower footing resistance (e.g. bottles) to practise. Try to drive fast on the straight lanes, while slowing down on bends. -
Page 16: Maintenance
MAINTENANCE ① ② Remove the battery from Wipe out sands, muds the car when the car is and dusts. not in use. ③ ④ Please apply anti-rust Store the car and the oil to the outer metal battery separately when layer. - Page 17 PROBLEMS CAUSES SOLUTIONS Slide the power “ON/OFF” not switch to “ON” to switched on yet. power on. Wheels Replace with new Low battery cannot spin battery or charge capacity. the battery. Please re-pair Pairing failed. complying with previous steps. RC car Replace with new Low battery halts...
-
Page 18: Dear Customer
JJRC TECHNICAL SUPPORT Dear Customer, Thank you for choosing JJRC product. Please visit JJRC official website for more FAQ and information if there is any problem of using our product. -Product Operation: Please visit JJRC College for tutorial video or user manual.
