MUNBYN IRT01 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

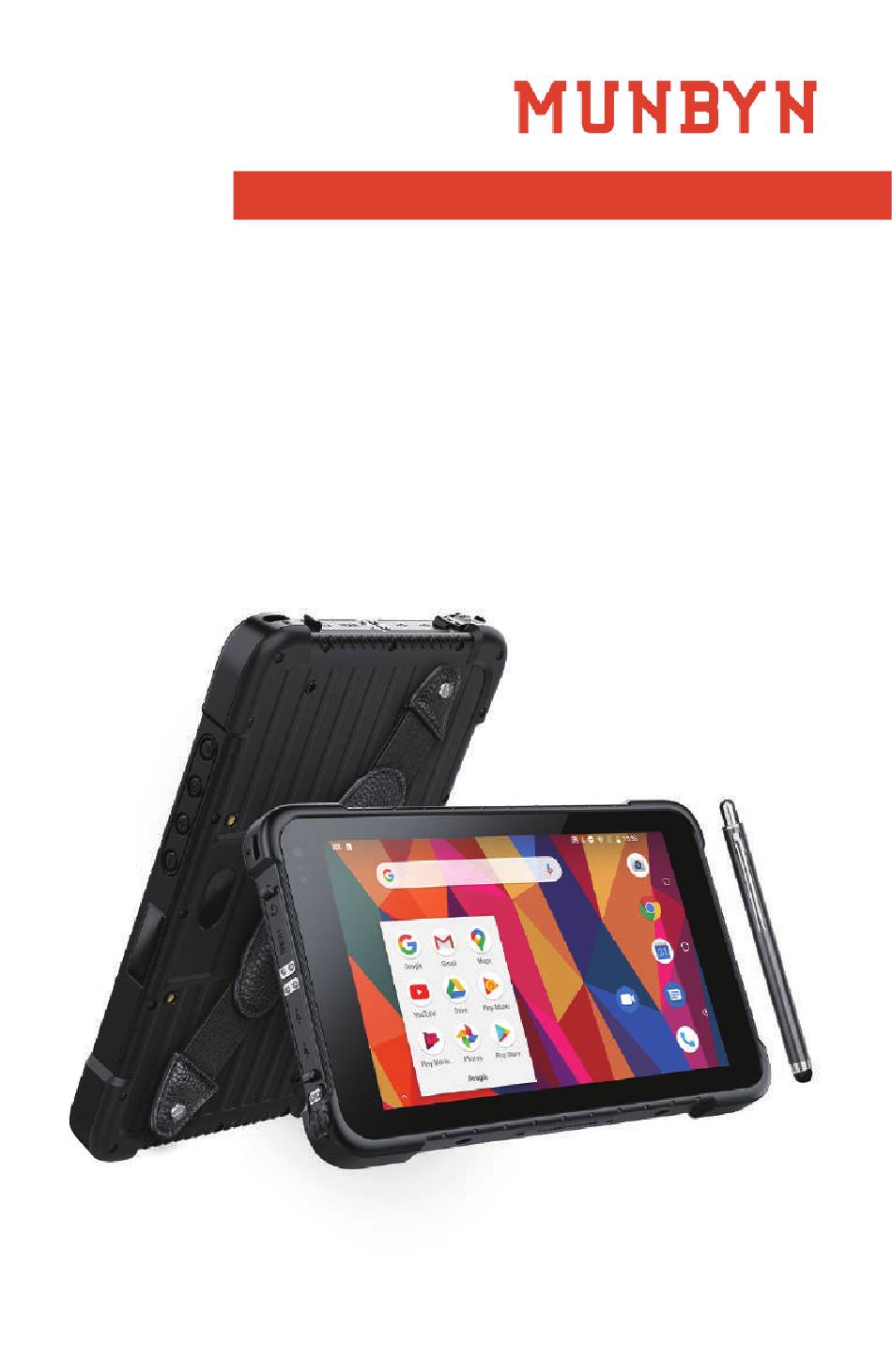

IRT01
Tablet Computer
User Manual 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRT01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MUNBYN IRT01

Summary of Contents for MUNBYN IRT01

  • Page 1 IRT01 Tablet Computer User Manual 1.0...

  • Page 2: Table Of Contents

    CONTENT Preface....................1 1. Device Performance Structure............2 2. Device Initialized Setting ..............5 2.1 Initial Page ..................5 2.2 Initial Desktop..................8 3. Desktop Layout................9 3.1 Desktop Menu Introduction..............9 3.2 Menu Bar Layout................10 4. Important Settings .................11 4.1 Scanner Setting................11 4.1.1 Scanner Module Selection ............11 4.1.2 Settings..................12 4.1.3 Symbologies ................13 4.1.4 Export..................14...

  • Page 3: Preface

    Preface Thank you for purchasing our products. The IRT01 tablet computer integrates data collection and transmission, high-precision positioning, location tracking, remote monitoring and management, and other functions. It has strong and durable characteristics and is widely used in warehousing and logistics, manufacturing, medicine, energy indus- tries, etc.

  • Page 4: Device Performance Structure

    1. Device Performance Structure Device function interface description Device front (touch screen/display screen/ front camera/charge indicator light /light sense) Front camera/charge indicator light /light Device back (Screw hole of strap/rear camera/NFC zone) Rear camera Screw hole of strap NFC zone...
  • Page 5 Device top side Scan Volume 1D/2D windows Power button Volume Device bottom side POGO pin Positioning hole of charging docking...
  • Page 6 Device right side Earphone HDMI port DC power Jack Micro USB USB2.0 Device left side TF card SIM card...

  • Page 7: Device Initialized Setting

    2. Device Initialized Setting 2.1 Initial Page ①press the power key to reboot the system as the below picture. you can change the language setting. the click the start. Language change...
  • Page 8 ②touch the start icon, then click skip for left picture and click skip for the right picture. ③click CONTINUE for left picture and click NEXT for the right picture.
  • Page 9 ④click NEXT for left picture and click Not now for the right picture. ⑤click SKIP ANYWAY for left picture and click I AGREE for the right picture.

  • Page 10: Initial Desktop

    2.2 Initial Desktop Slide the arrow up and go to the desktop, as below picture.

  • Page 11: Desktop Layout

    3. Desktop Layout 3.1 Desktop Menu Introduction This interface can start the application in a quick way, enter the menu operation, users can add shortcuts to the desktop according to their own needs, as below picture. Wi-Fi Mobile Bluetooth Time Battery Back Home...

  • Page 12: Menu Bar Layout

    3.2 Menu Bar Layout All the application and user installation applications are here, and all applications can be opened, as below picture.

  • Page 13: Important Settings

    4. Important Settings 4.1 Scanner Setting You can config the functions about scanning in the app ‘HardDecodeScan’ 4.1.1 Scanner Module Selection Please select Motorola Two dimensional in the Module selection here to match and enable our inner scanner Menu Function Settings Barcode Settings Export Scan Data to xIs File...

  • Page 14: Settings

    4.1.2 Settings You can set up the scan sound, prefix and suffix etc. in the settings Set Scanning Feedback Method (*if disable HID,the scan result will output to scanner module COM port) Enable one-time output Disable: character-by-character (*Need to be used with additionall Bluetooth Holder) Copy to clipboard Restore to factory default...

  • Page 15: Symbologies

    Add"TAB"in suffix Add"Enter"in suffix Set auto run after system startup Set enable/disable Scan key Add an scan icon on screen,Long press for 1~2 seconds to scan Switch three scanning sounds Set Asynchronous/Synchronization Set COM port baud rate to 115200/9600 4.1.3 Symbologies You can enable/disable the code type in the symbologies...

  • Page 16: Export

    4.1.4 ExPort The scan result will export to Internal storage--"ScanResult"folder...

  • Page 17: Other Settings

    4.2 Other Settings The user can set up the system on this interface.

  • Page 18: Suggestion

    4.2.1 Suggestion Complete device setup: click on the start icon to completed the device settings.

  • Page 19: Network & Internet

    4.2.2 Network & Internet Wi-Fi setting: In this interface can search Wi-Fi, input password can be connected, under the advanced settings can be connected to the WLAN directly, WLAN sleep state setting. WiFi on/off WIFI name...

  • Page 20: Connected Devices

    4.2.3 Connected Devices Bluetooth setting: Search this interface for Bluetooth pairing, remove or cancel paired Bluetooth devices. as the blew picture.

  • Page 21: Apps & Notifications

    4.2.4 Apps & Notifications View installed APP storage space size, traffic usage, stop using APP. Set screen lock time, default notification prompt.

  • Page 22: Battery

    4.2.5 Battery Check battery usage. 4.2.6 Display Brightness adjustment, desktop wallpaper replacement, sleep time setting, interactive screen saver, font size, screen rotation switch, etc.

  • Page 23: Sound

    4.2.7 Sound Set media volume, alarm volume, notify volume size (can also use physical keys to the corresponding interface directly to adjust, do not disturb settings) notification ringtone settings and other operations.

  • Page 24: Storage

    4.2.8 Storage View system memory usage, install and uninstall SD cards. 4.2.9 DuraSpeed...

  • Page 25: Security & Location

    4.2.10 Security & Location Set screen locking mode with some encryption settings, can manage unknown sources of application installation settings, etc. 4.2.11 Users & Accounts...

  • Page 26: Accessibility

    4.2.12 Accessibility Click with accessibility, for quick settings of personal operation habits, such as: Caption, magnification gesture, front size, display size, power button ends call, auto-rotate screen, speak password, color inversion, color correction.

  • Page 27: Google

    4.2.13 Google Set screen locking mode with some encryption settings, can manage unknown sources of application installation settings, etc. 4.2.14 System...
  • Page 28 ① Languages&input ② Gestures...
  • Page 29 ③Languages&input Set the time and time zone and time format for 24 hours or 12 hours, or turn on automatic confirmation, which synchronizes automatically when the device is connected to the network.
  • Page 30 ④ System update ⑤ Reset options...
  • Page 31 ⑥ About tablet view status information, device models, Android version / Android patch level, base band version (mobile network module model), kernel version, software version number, etc.

  • Page 32: Faq

    ⑦ Status View battery status, battery power SIM card status / IMEI information / IP address WLANMAC address, Bluetooth address, serial number, boot time, etc. 5. FAQ Q1: How to insert the SIM card? A1: Follow the direction of the silicone plug to insert the 4G card. Q2: Under what circumstances need to open the self-starting service option? A2: If the customer does not have the secondary development ability, please pay attention to turn on the auto start service in the scanning software.

  • Page 33: Battery Operation

    6. Battery Operation The device battery is polymer type battery and immovable, which should only be charged by using original power adapter. Do not store battery in hot, humid, or corrosive environment. Do not break or crack battery. Do not store battery when it is fully charged completely drained.
  • Page 34 Focus on Every Powerful Moment Need Tech Support, reach us here: Mail: support@munbyn.com sales@munbyn.com munbyn@outlook.com Whatsapp: +8617817881067 Skype: munbyn...
