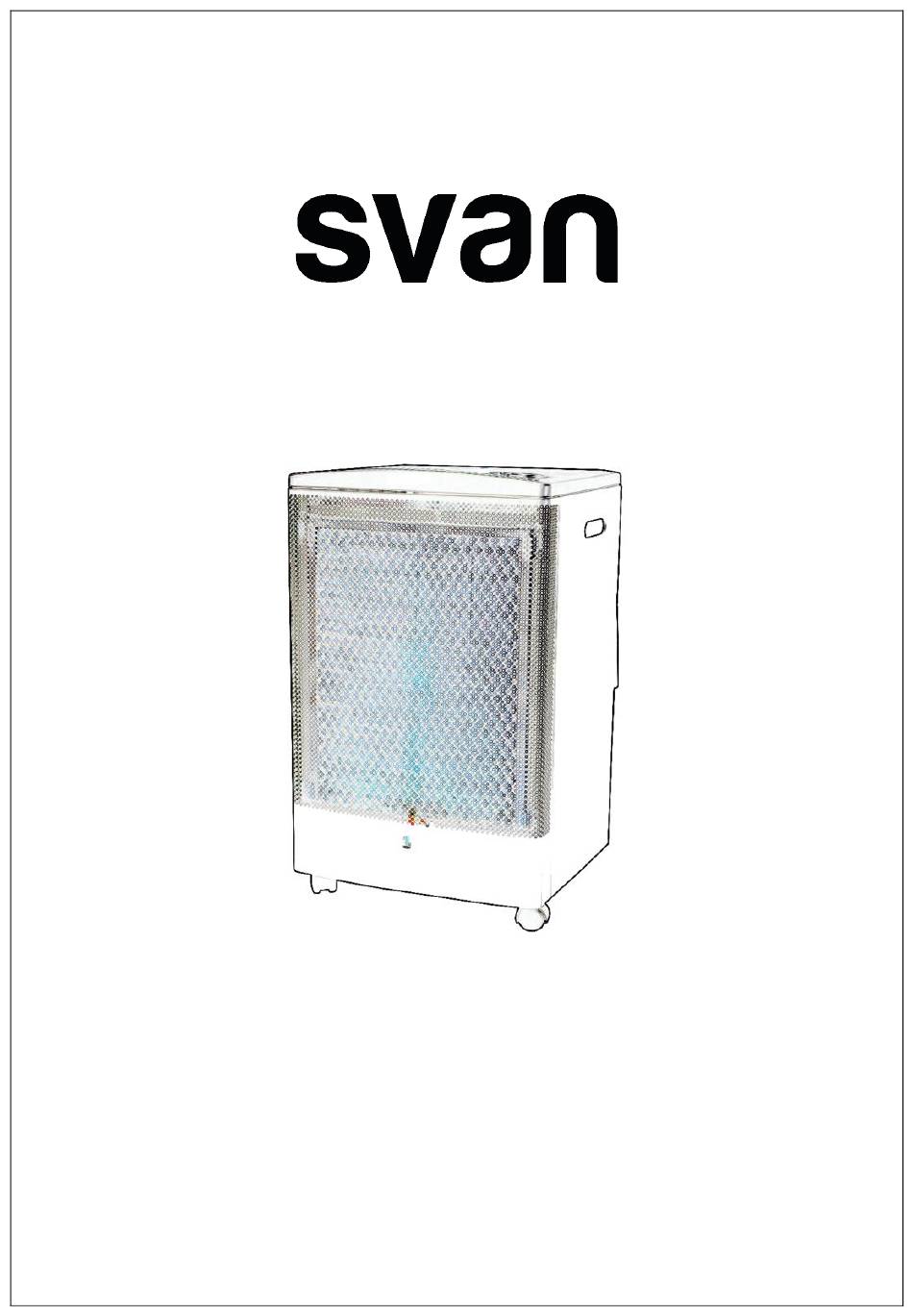

- Page 1 Energy efficiency classes: A (A++ <> G) GAS HEATER - SVCA420LA Instruction Manual Important note: Instructions for placing the reducer in the gas bottle can be found inside.
- Page 2 Characteristics Plate affixed to the appliance and shown in the table below. This appliance complies with Technical Data – Heater the provisions of regulation SVCA420LA 2016/426/EU on the Destiny – Country Europe approximation of the Type of Gas and...
- Page 3 Opening and closing the gas (Fig. 3 and Fig. 4): 1. To open the gas, turn the gear reducer lever counterclockwise to the OPEN position. 2. To turn off the gas, turn the gear reducer lever clockwise to the CLOSED position - you will hear a click. To remove the reducer from the bottle: 1.
- Page 4 Children must not be allowed to play with the appliance. Model SVCA420LA Potency 4.2kW Consumption...
-
Page 5: Practical Advice
6. Turn the thermostatic adjustment knob counterclockwise to the limit switch, which corresponds to number 7. The burner will light. 8. When the room has reached the desired temperature, turn the knob slowly clockwise until the burner goes out; the pilot flame is always on; at this point, the heater turns on and off automatically, maintaining the desired temperature. - Page 6 This pilot has been subject to strict compensation, which is why it should not be handled under any circumstances. Device maintenance This appliance, designed for long-term use, needs minimal maintenance and care. At the end of the season, or if the appliance is out of use for a certain period, it is advisable to cover it with a plastic bag or cloth and place it in a dry place, protected from humidity.
- Page 7 Attention: On the first lighting and every time the bottle is replaced, the pilot flame will need more time to ignite, so the knob will need to be pressed longer before the pilot flame ignites correctly due to the air present in the gas circuit. Check the stability of the pilot flame as shown in fig.
- Page 9 Information requirements for gaseous/liquid fuel local space heaters Model identifier(s) SVCA420LA Indirect heating functionality Direct calorific power 4.2 kW Indirect calorific power 0 kW...
- Page 10 SVAN TRADING S.L C/ Ciudade de Cartagena, 20 Paterna ( 46988 ) SPAIN info@svanelectro.com 96060034...
