Summary of Contents for Mason MXC-10928

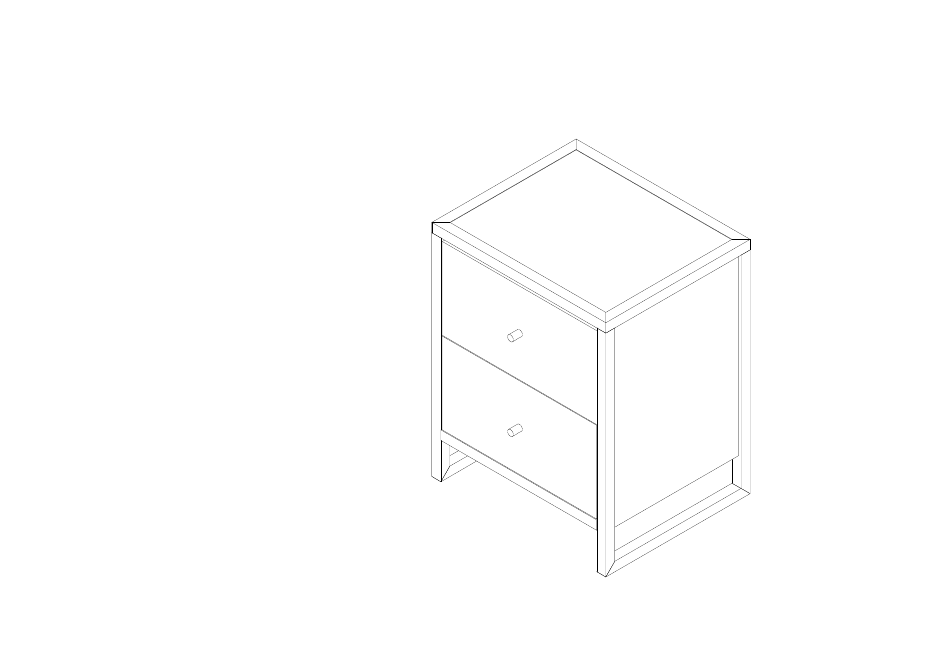

- Page 1 Mason nightstand style # MXC-10928 dpci # 249-09-3446 >> assembly instructions...
-
Page 2: Congratulations On Your Purchase
table of contents introduction hardware parts list assembly 5-11 Congratulations on your purchase. Now what? Don't start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you'll be on your way to transforming your room in no time. before you begin 1. - Page 3 hardware (H4) x16 (H1) x 8 (H2) x 1 (H3) x 14 Ø 8 x 25 mm flat head Ø 6 x 19 mm flat head Ø 9 x Ø 4 x 19 mm Ø 4 mm allen screw machine screw wrench umbrella screw with washer head...
-
Page 4: Item Description
ITEM DESCRIPTION QUANTITY top panel left panel right panel front bottom rail rear bottom rail back panel drawer bottom panel drawer right side panel drawer left side panel drawer back panel drawer front face panel... - Page 5 Step 1. (H1) x 2 (H2) x 1 Ø 6 x 19 mm flat head Ø 4 mm allen wrench machine screw...
- Page 6 Step 2. (H1) x 2 (H2) x 1 Ø 6 x 19 mm flat head Ø 4 mm allen wrench machine screw...
- Page 7 Step 3. (H1) x 4 (H2) x 1 Ø 6 x 19 mm flat head Ø 4 mm allen wrench machine screw...
- Page 8 Step 4. Mesh Tape (H3) x 14 Ø 9 x Ø 4 x 19 mm umbrella screw with washer head...
- Page 9 Step 5. (H4) x4 Ø 8 x 25 mm flat head screw 1. Repeat this step for the other drawer.
- Page 10 Step 6. (H5) x 1 (H4) x4 (H6) x 1 knob Ø 8 x 25 mm flat head Ø 4 x 19 mm umbrella head machine screw screw 1. Repeat this step for the other drawer.
- Page 11 Step 7.
