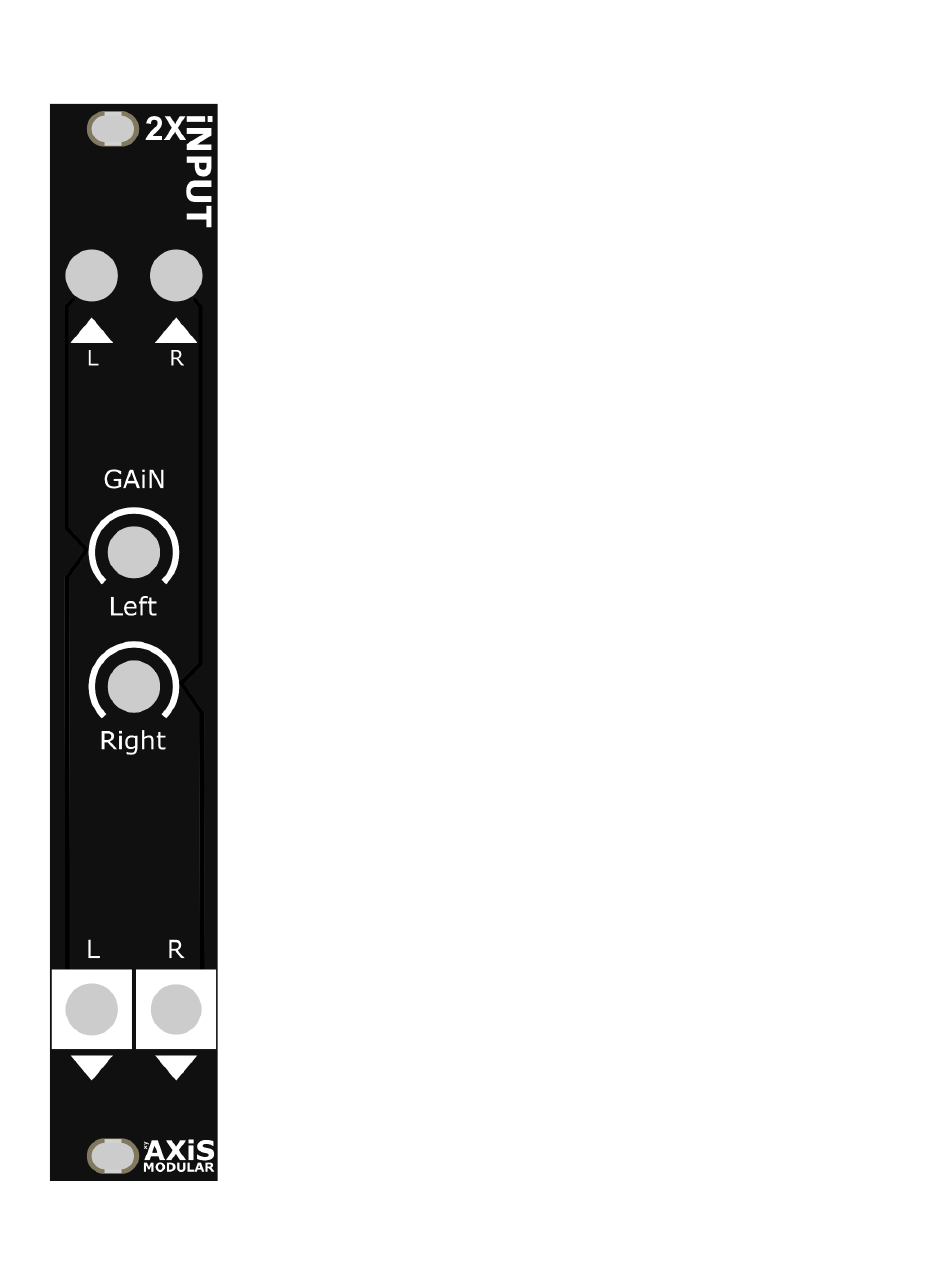

AXiS MODULAR iNPUT OPERATION MANUAL
< iNPUTS plug either a single stereo source or 2 separate
mono line/guitar/mic level source in here.
Note: If nothing is plugged into the right input the left channel
is also sent to the right channel allowing you to send a copy of
the audio out on the right channel.
< LEFT GAiN Adjust left gain/level here.
< RiGHT GAiN Adjust right gain/level here.
< OUTPUTS Audio outputs at euro level.
Advertisement
Table of Contents
Summary of Contents for AXiS MODULAR 2XiNPUT
- Page 1 AXiS MODULAR iNPUT OPERATION MANUAL < iNPUTS plug either a single stereo source or 2 separate mono line/guitar/mic level source in here. Note: If nothing is plugged into the right input the left channel is also sent to the right channel allowing you to send a copy of the audio out on the right channel.

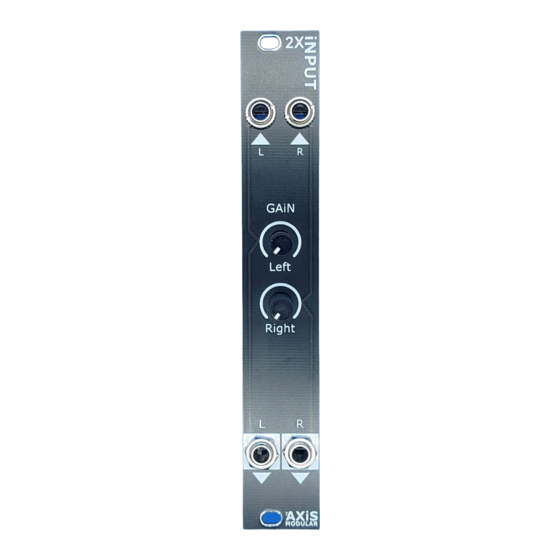

- Page 2 About the ideas behind the module The 2XiNPUT module can be used as either a 2 x mono or 1 x stereo line level or guitar/mic amplifier for your eurorack system. Operation is quite simple, take any line/guitar level instrument and the input gets amplified up to eurorack volume levels.
