Summary of Contents for Icop IM242S Series

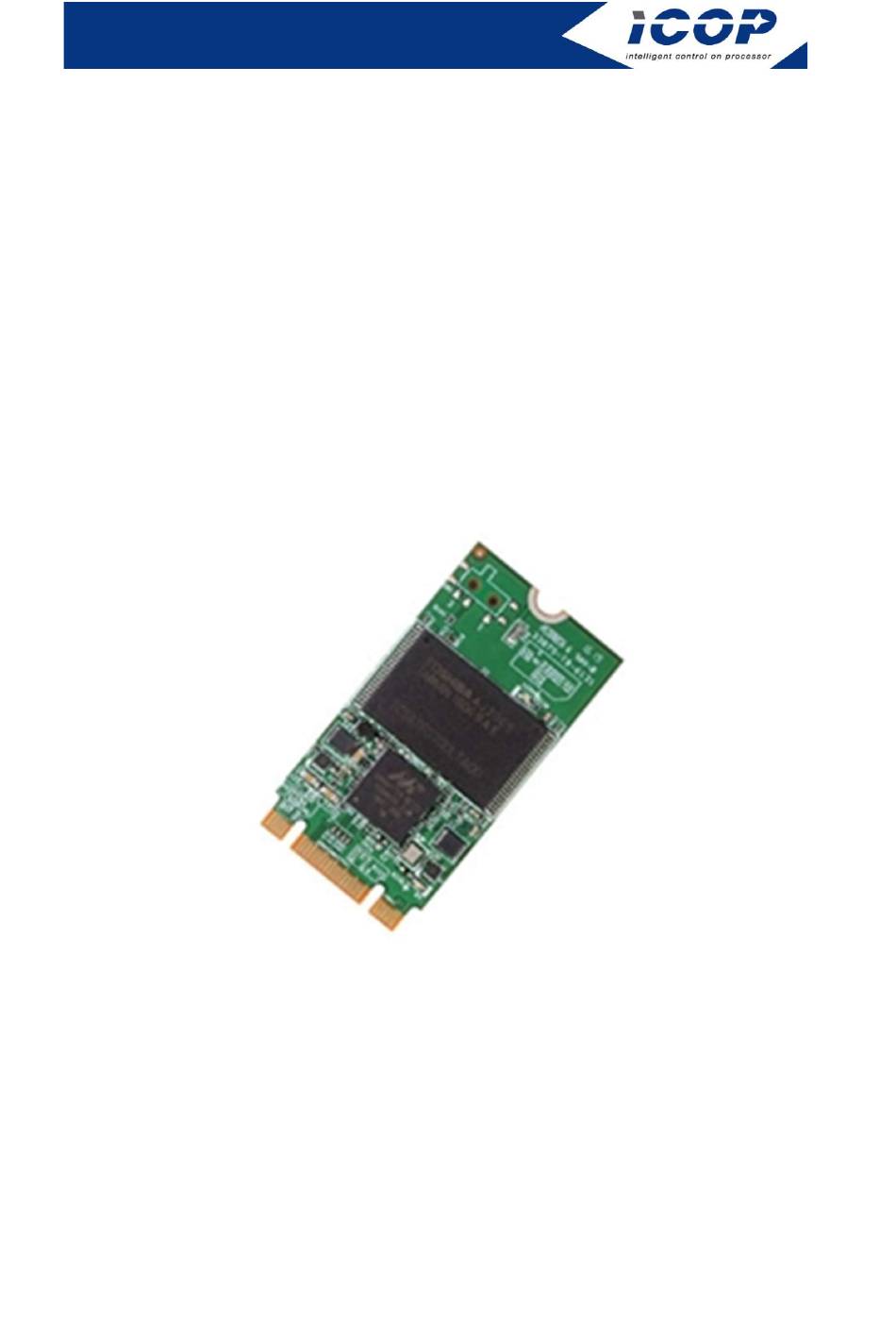

- Page 1 User Manual M.2(2242) SSD IM242S Series Version 1.0...
-
Page 2: Table Of Contents
User Manual IM242S Table of contents 1. PRODUCT OVERVIEW ............................4 1.1 I ICOP IM242S ..................... 4 NTRODUCTION OF 1.2 P ....................... 4 RODUCT IEW AND ODELS 1.3 SATA I ........................... 4 NTERFACE 2. PRODUCT SPECIFICATIONS ........................... 5 2.1 C .................... - Page 3 User Manual IM242S EVISION ISTORY Revision Description Date Rev 1.0 Version 1.0 Released Jan., 2019...
-
Page 4: Product Overview
ICOP IM242S supports SATA III interface, and compliant with SATA I and SATA II. SATA III interface can work with Serial Attached SCSI (SAS) host system, which is used in server computer. ICOP IM242S is compliant with Serial ATA Gen 1, Gen 2 and Gen 3 specification (Gen 3 supports 1.5Gbps /3.0Gbps/6.0Gbps data rate). -
Page 5: Product Specifications
Note: * Sequential performance is based on CrystalDiskMark 5.1.2 with file size 1000MB ** Random performance is based on IO meter with Queue Depth 32 2.3 Electrical Specifications 2.3.1 Power Requirement Table 3: ICOP IM242S Power Requirement Item Symbol Rating... -
Page 6: Power Consumption
The mean number of life units during which all parts of the item perform within their specified limits, during a particular measurement interval under stated conditions. Table 7: IM242S MTBF Product Condition MTBF (Hours) ICOP IM242S Telcordia SR-332 GB, 25°C >3,000,000... -
Page 7: Ce And Fcc Compatibility
User Manual IM242S 2.5 CE and FCC Compatibility IM242S conforms to CE and FCC requirements. 2.6 RoHS Compliance IM242S is fully compliant with RoHS directive. 2.7 Reliability Table 8: IM242S TBW Parameter Value Read Cycles Unlimited Read Cycles Flash endurance 3,000 P/E cycles Wear-Leveling Algorithm Support... -
Page 8: Pin Assignment
User Manual IM242S 2.9 Pin Assignment ICOP IM242S uses a standard SATA pin-out. See Table 9 for IM242S pin assignment. Table 9: ICOP IM242S Pin Assignment Signal Name Pin # Pin # Signal Name 3.3V 3.3V 3.3V Notch Notch Notch... - Page 9 User Manual IM242S 3.3V 3.3V 2.10 Mechanical Dimensions Figure 2: ICOP IM242S diagram (TSOP)
-
Page 10: Seek Time
A ICOP IM242S within flash ICs, 64GB’s weight is 8 grams approximately. 2.12 Seek Time ICOP IM242S is not a magnetic rotating design. There is no seek or rotational latency required. 2.13 Hot Plug The SSD support hot plug function and can be removed or plugged-in during operation. User has to avoid hot plugging the SSD which is configured as boot device and installed operation system. -
Page 11: Theory Of Operation
IM242S 3. Theory of Operation 3.1 Overview Figure 2 shows the operation of ICOP IM242S from the system level, including the major hardware blocks. Figure 4: ICOP IM242S Block Diagram ICOP IM242S integrates a SATA III controller and NAND flash memories. Communication with the host occurs through the host interface, using the standard ATA protocol. -
Page 12: Wear-Leveling
ICOP IM242S uses a static wear-leveling algorithm to ensure that consecutive writes of a specific sector are not written physically to the same page/block in the flash. This spreads flash media usage evenly across all pages, thereby extending flash lifetime. -
Page 13: Installation Requirements
For connection via cable, the cable should be no longer than 1meter. The SATA interface has a separate connector for the power supply. Please refer to the pin description for further details. 4.3 Device Drive No additional device drives are required. The ICOP IM242S can be configured as a boot device.
