Summary of Contents for avsi citronic CM Series
- Page 1 CM-series Stage Wedge Monitors Item ref: CM10A 178.690UK CM12A 178.692UK CM15A 178.695UK CM10 178.691UK CM12 178.693UK CM15 178.696UK User Manual Version 1.1 Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...

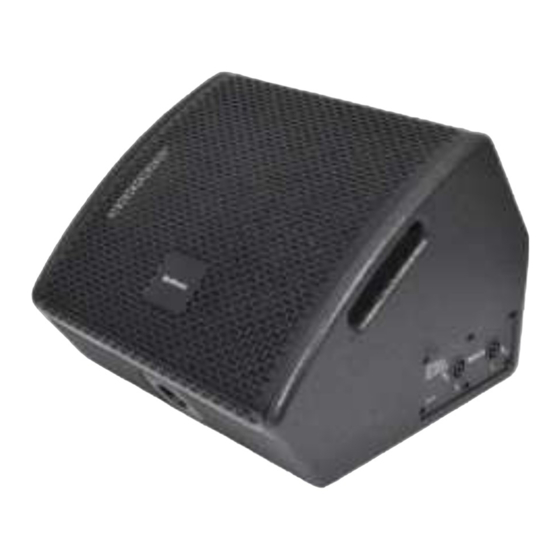

- Page 2 Introduction Thank you for choosing a Citronic CM-series stage wedge monitor. These units are available in passive and active versions and can be positioned free-standing or pole-mounted via the 35mm socket. Please read this manual to achieve optimum performance from your speaker cabinet and avoid damage through misuse. Package Contents •...
- Page 3 Passive panel layout Both SPK input sockets are wired to 1+/1- in parallel Active panel layout DSP setting indicator LEDs LINE A input combo Jack/XLR Bluetooth on/off & pairing button DSP rotary selector Bluetooth & Amplifier status LEDs MASTER volume control HEADPHONE output volume control Power on/off switch LINE A input RCA (L+R)
- Page 4 Operation When all signal connections are made, turn down the MASTER volume and connect to mains using the supplied IEC lead to the mains inlet (16). Switch on the power and a green POWER LED (5) will light. Turn up the MASTER control gradually, checking input signal(s) and gradually adjusting the VOLUME A and VOLUME B controls until the required volume is reached.
