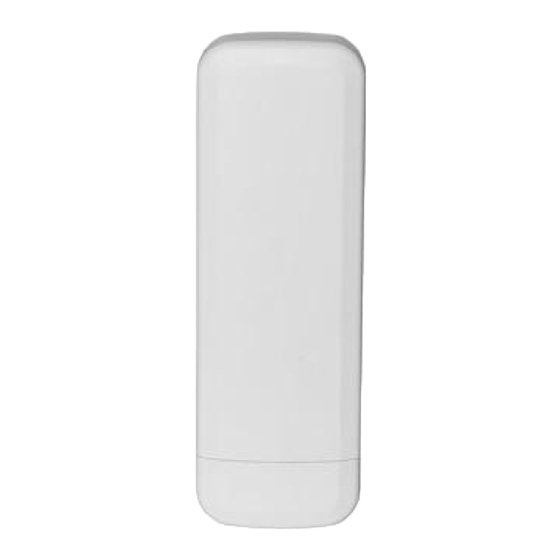

11ac 900Mbps 5G High Power Outdoor CPE
Model: CPE850D
Description:
CPE850D is an high power industrial 5G outdoor CPE with the next generation 802.11ac Wi-Fi standard,
combined 900Mbps high speed in 5G, equipped Gigabit WAN port, 2 times Ethernet data rate faster than
CPE880, it make more than 50 end users can access into it to enjoy seamless HD movies, streaming,
online gaming, wireless security and other bandwidth-intensive tasks.
900Mbps Data Rate & Gigabit WAN
CPE850D features 802.11ac Wi-Fi and 2*2 MIMO technology, 900Mbps wireless speed. Equipped with
Gigabit Ethernet port ensures high speed internet access and more end users access.
Tested the data throughput is 200Mbps in 1000 meters, can work with more than 5PCS IP camera to
save the CPE cost.
Advertisement
Summary of Contents for Yunlink CPE850D
- Page 1 Model: CPE850D Description: CPE850D is an high power industrial 5G outdoor CPE with the next generation 802.11ac Wi-Fi standard, combined 900Mbps high speed in 5G, equipped Gigabit WAN port, 2 times Ethernet data rate faster than CPE880, it make more than 50 end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.
-
Page 2: Main Features
GUI, avoid the complex setup program, simple to install it in different environment. Power over Ethernet CPE850D has integrated passive Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure. -
Page 3: Product Spec
Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security Product Spec.: Hardware: Chipset RTL8197FH +RTL8211F+RTL8812BRH Standard 802.11ac/a/n, MIMO technology Memory 128MB DDR2 RAM Flash Interface 1 * 10/100 /1000Mbps RJ45 WAN Port 1 * 10/100Mbps RJ45 LAN Port 1 * LED display 1 * F(Function) switch button 1 * S(Select) button, press it to setup WDS PTP/PTMP connection 1 * DC Jack... - Page 4 Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption SSID Multiple SSID up to 4 Firewall DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding Protocols IPv4 Others: Package Contents 900Mbps Dual Band wireless access point Ethernet Cable Quick Installation Guide Setting Accessory...
- Page 5 Frequency range（MHz） 5180～5825 Polarization Vertical and Horizontal Gain（dBi） 2×15 Vertical H: 70 V: 15 Half-power beam width（°） Horizontal H: 50 V: 15 Front-to-back ratio（dB） ≥25 Input Impedance（Ω） VSWR ≤1.5 Isolation between ports（dB） ≥28 Cross-polar ratio（dB） ≥15@0º ≥10@+/-60º Application: Operation 1: Operation 2:...
- Page 6 Operation 3: Operation 4:...
- Page 7 Operation 5:...
