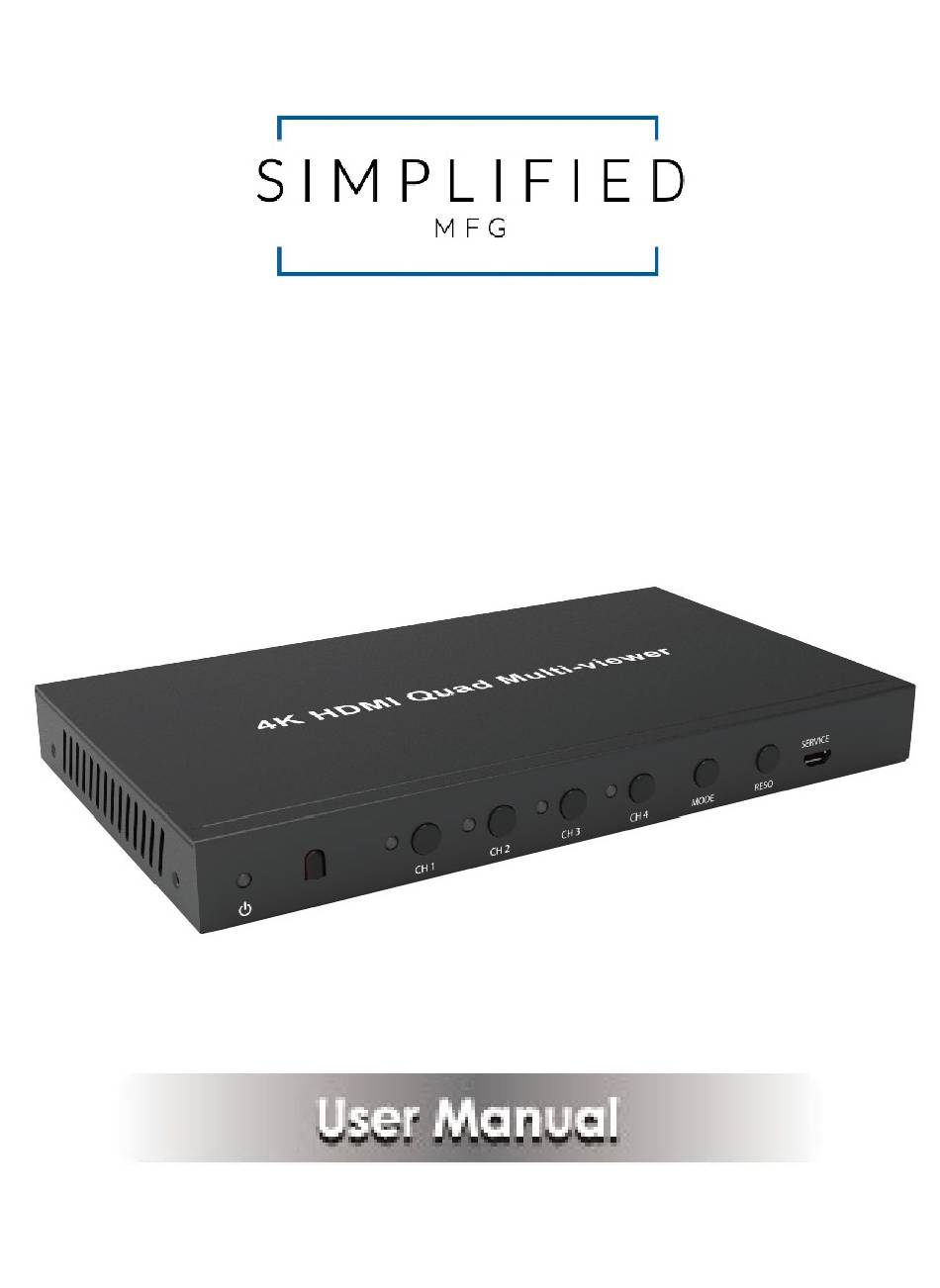

Page 1 VER 1.0...
Page 2 Thank you for purchasing this device The Simplified Manufacturing MV2 is designed to provide years of reliable service. At Simplified MFG, we want the experience with this device to be the best possible and are committed to helping achieve that experience.
Page 3: Table Of Contents
Table of Contents 1. Introduction ....Error! Bookmark not defined. 2. Features ..............3 3. Package Contents ..Error! Bookmark not defined. 4. Specifications ............4 5.Operation Controls and Functions ......6 5.1 Front Panel ............ 6 5.2 Rear Panel ............. 7 6.
Page 4: Introduction
1. Introduction The MV2 is a “frameless” four inputs to two parallel outputs (1 HDMI & 1 VGA) switch that features the ability to process the inputs into four different multi-view formats. Four 1080p inputs can be shown simultaneously on a 4K display (up to 4K @30Hz.).
Page 5: Package Contents
Audio breakout is 3.5mm minijack (stereo) Control functions are via supplied remote and IR signals • and front panel switching Package Contents 1 x MV2 Switch with multi-view • 1 x 12V/1A DC Power Supply • • 1 x IR Remote Control 2 x Mounting brackets •...
Page 6 Video Resolutions 3840x2160@30Hz,1920x1080@50/60 Hz,1280x720@50/60Hz,1920x1200@6 0Hz,1024x768@60Hz Color Depth 8-bit Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Analog Audio LPCM2.0 44.1KHz 48KHz Formats ESD Protection Human-body Model： ±8kV (Air-gap discharge) , ±4kV (Contact discharge) Connections Inputs ports 4x HDMI Type A [19-pin female] 1x SERVICE [Micro USB, Update port] Outputs ports 1x HDMI Type A [19-pin female]...
Page 7: Operation Controls And Functions
Weight 595g Power Supply Input: AC100~240V 50/60Hz, Output: DC12V/1A (US/EU standards, CE/FCC/UL certified) Power Consumption 7.68W (max) Operating 0°C ~ 40°C / 32°F ~ 104°F Temperature Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) 5.Operation Controls and Functions 5.1 Front Panel...
Page 8: Rear Panel
Number Name Function description The LED will illuminate green when the POWER unit is working, red when the unit is in standby mode. IR receiver window. It accepts the remote control signal of this device only. CH1/CH2/ Selects input channel button (Please see CH3/CH4 “6.
Page 9 Number Name Function description HDMI HDMI input ports for the four sources INPUT that this device will switch/mulit-view HDMI Connection for display up to 4K @ 30Hz. OUTPUT VGA output port that is in parallel with OUTPUT HDMI output (does not support 4K) AUDIO Analog audio output port.
Page 10: Display Modes
The LED indicators will indicate which source is selected. MODE 2: The MV2 divides four HD inputs into a “quad” view on the screen. The LED indicator “4” is on. In the CH1 window, you can press the CH1 button on-panel or use the remote control to cyclical input position in the quad view.
Page 11: Remote Control
MODE 4: The MV2 divides two HDMI inputs with same size and display on a screen. The LED indicators CH1/CH2 light are on. In the CH1 window, you can press the CH1 button on-panel or using IR remote control the Source 1 button to cyclical selection four inputs source.
Page 12 Mode: : Press these buttons to select output display mode. Source: 1/2/3/4: Press these buttons to select the input source. :Press this button to cycle the input source (This button can be used only at the MODE 1). Audio: :Press this button to cycle input source audio(This button can be used at the MODE 1 only).
Page 13: Application Example
8. Application Example 9.Warranty Should you feel that this product does not function adequately due to defects in materials or workmanship, we (referred to as “the warrantor”) will, for the length of the period indicated below (starting from the original date of the purchase) either a) repair the product with new or...
Page 14: Contact
refurbished parts. Or b) Replace the product with new or refurbished product. All Simplified MFG products are covered by a 3-year PARTS and LABOR warranty. During this period there will be no charge for unit repair, replacement of unit components or replacement of the product if deemed necessary.
Page 15 The MV2 has HDMI, VGA, and Audio HDMI Source HDMI Source HDMI Source HDMI Source outputs • The MV2 is an instant switch making it great HDMI for live performance, command and control, HDMI Source HDMI Source Legend Legend HDMI Source...
Page 16 In: 480i/p, 576i/p, 720p, 1080i/p, 800x600, 1024x768, Video 1280x720, 1920x1080 Resolutions Out: 1080p and 4K 30Hz. The MV2 is a compact 4 input to one Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 output “frameless” switch. The MV2 Color Depth 8 Bit...
