AeroAudio MOS Quatro Manual

MOS - QUATRO
MANUAL
The MOS Quatro is a four-way 19 inch microphone onair switch for switching microphone lighting
on for example the Yellowtec Mika microphone arms.
The four microphone ports switch separately from each other.

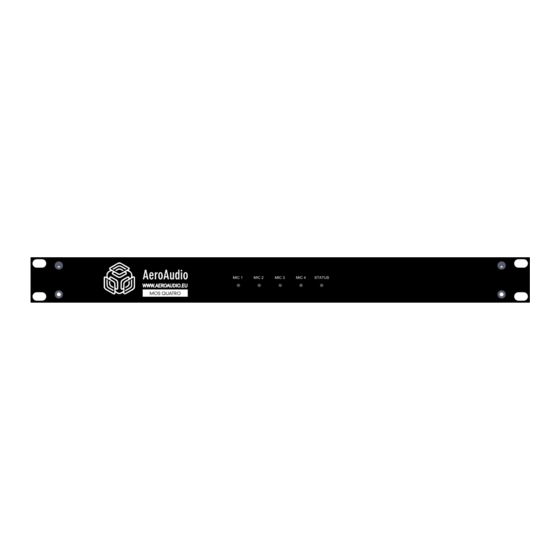

The indication LED's on the front panel of the MOS Quatro show the status of each microphone.
The status LED indicates whether the microphone arms are on standby, fixed white light, or fading in
and out.
Up to 4 microphone arms can be connected to the rear panel of the MOS-Quatro. The MOS-Quatro
will control the lights of the connected arms in red for on-air and white for off-air.
The audio signal is routed directly from the connected microphone arm to a standard 3-pin XLR
connector.
