Summary of Contents for Soojee ZJ-BG7001

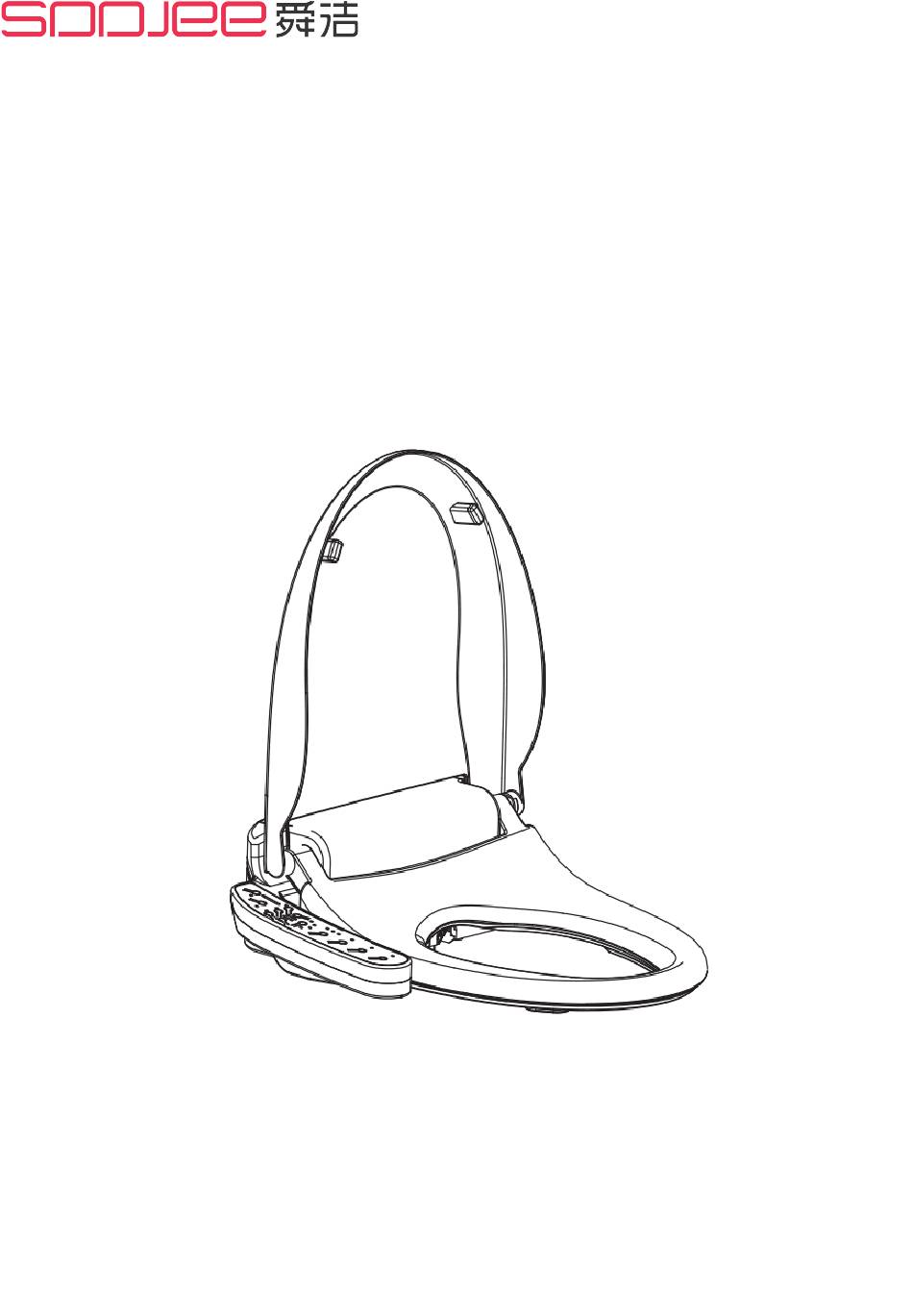

- Page 1 SMART TOILET SEAT PRODUCT INSTRUCTION...
-
Page 2: Brief Introduction
1.Please connect the water-inlet hose in advance. Then under the situation of completely open the water-inlet horn valve, connect the supply power, otherwise the toilet seat will damage. 2.The sensor is installed inside the toilet seat .If no one use it, the system will quit the washing and drying mode. ZJ-BG7001 ZJ-BG8381 ZJ-BS8381 ZJ-BG8386... - Page 3 DEMENSION ZJ-BG7001 130-210 ZJ-BG8381/ZJ-BS8381 125-185 ZJ-BG8386/ZJ-BS8386 125-185...
- Page 4 DEMENSION ZJ-BG8361/ZJ-BS8361 125-185 ZJ-BG831/ZJ-BS831 125-185 ZJ-BG7022 125-185...
- Page 5 DEMENSION ZJ-BG8022/ZJ-BS8022 125-185 ZJ-BG827/ZJ-BS827 125-185 ZJ-BG827D/ZJ-BS827D 125-185...
- Page 6 DEMENSION ZJ-S901A 30-158...
-
Page 7: Technical Parameters
TECHNICAL PARAMETERS Model ZJ-BG7001 Voltage/Frequency AC220V 50Hz 920W Rated Input Power Length of Supply cable 1.5m Safety Device Leakage Protector(Operating Current=10mA) Applicable Water pressure 0.1~0.75MPa Dimension 505*373*145mm Input water temperature >1℃<40℃ Water flow capacity 0.6~1.1L/min Water heating power 600w Cleaning device Water temperature adjustment Four levels (Normal temperature about 40℃) - Page 8 TECHNICAL PARAMETERS ZJ-BS8361/BG8361 Model ZJ-BS831/BG831 Voltage/Frequency AC220V 50Hz /110V 60Hz 1320W(BG)/1050W(BS) Rated Input Power Length of Supply cable 1.5m Safety Device Leakage Protector(Operating Current=10mA) Applicable Water pressure 0.1~0.75MPa Dimension 507*389*160mm Input water temperature >1℃<40℃ Water flow capacity 0.6~1.1L/min Water heating power 600w Cleaning device Water temperature adjustment...
- Page 9 TECHNICAL PARAMETERS Model ZJ-BG8022/ZJ-BS8022 Voltage/Frequency AC220V 50Hz/AC110V 60Hz Rated Input Power 1320W (BG) 1050W (BS) Length of Supply cable 1.5m Safety Device Leakage Protector(Operating Current=10mA) Applicable Water pressure 0.1~0.75MPa Dimension 505*378*136mm Input water temperature >3℃<40℃ Water flow capacity 0.6~1.1L/min Water heating power 0-1600w Cleaning device Water temperature adjustment...
- Page 10 TECHNICAL PARAMETERS Model ZJ-BG827D/ZJ-BS827D Voltage/Frequency AC220V 50Hz/AC110V 60Hz Rated Input Power 1320W (BG) 1050W (BS) Length of Supply cable 1.5m Safety Device Leakage Protector(Operating Current=10mA) Applicable Water pressure 0.1~0.75MPa Dimension 475*382*136mm Input water temperature >3℃<40℃ Water flow capacity 0.6~1.1L/min Water heating power 0-1600w Cleaning device Water temperature adjustment...
-
Page 11: Installation Method
INSTALLATION METHOD 1 Take off the original toilet seat 1) Unscrew the nut. 2) Take off the original toilet seat and wipe the top surface of the bowl. 2 Fixation board installation 1) Before installation, please put the intelligent toilet seat on the bowl to adjust the degree of adaptability, after that, please put the fixation board on the bowl . - Page 12 Membrane filter installation : Please don’ t put wrong or upside way which will cause no water phenomenon. Note : 1.Conversion connector can be selected to use ,it depends on your own valve’ s direction . 2.Change a new membrane filter and make sure it connects with the valve tightly ,then open the valve and check to see if it is leaking .
-
Page 13: Using Method
USING METHOD Before using Please check the following details before using 1.Make sure your installation is correct 2.Make sure the valve has been opened 3.Make sure the plug has been connected 4.Make sure you have opened the leakage protection 5.Make sure you have put the battery in the remote controller and model 6.Make sure your skin touch with the seat sensor How to using 1.Please Setting the following functions before using... -
Page 14: Other Functions
OTHER FUNCTIONS Damping buffer :Both toilet cover and seat with damping device ,so it can be closed very quietly . Automatic deodorization :When you sit ,the automatic deodorization will start working until you leave ,this procedure will cost around 40 seconds . Remote controller :All the functions like cleaning ,warm air ,automatic flushing would be working when your skin touch with the seat sensor .Please avoid the remote to touch water .Please change new battery when the old one exhausted.
