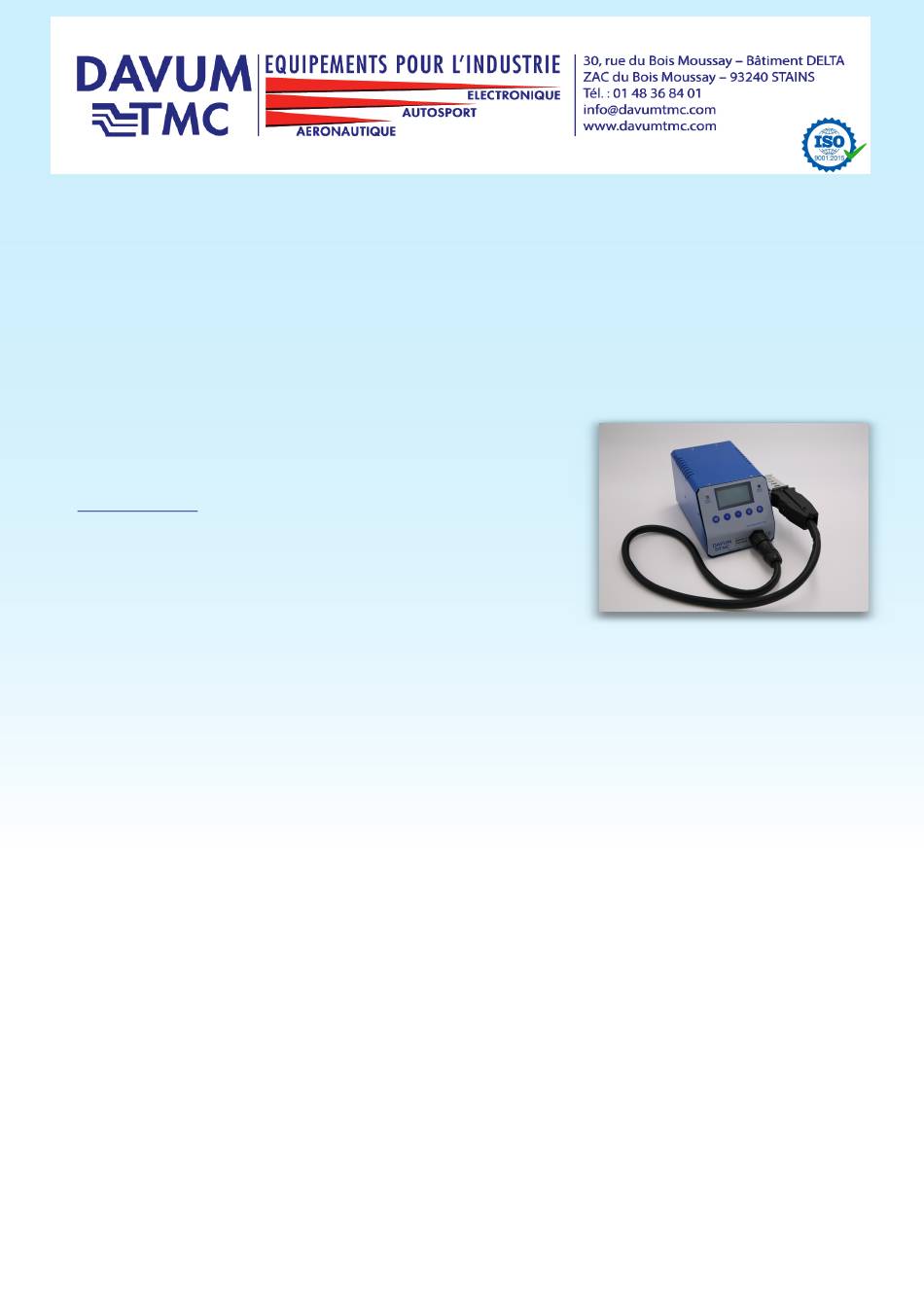

DAVUM TMC PB150M-V9 Instruction Manual

INSTRUCTION MANUAL SIMPLIFIED OF THE STRIPPER
The new version PB150M, DC voltage, with a new software and
highest temperature, has 5 easy touch that you can see below
with the meanings:

1 - Display settings

1.1 Programming

• "M": touch menu
• "+": More
• "- ": Less
• "V": key validation
• "R": return key
Start of the PB on the main menu of the active program (the one that will apply to the closing of the clip,
see picture above). The bar at the bottom of the main screen is a picture of the temperature of the clamp
(1 bar = 10% of the set point, 2 bars = 20% of the set point...). Therefore, you will notice the presence of the
following information: number of active program, its temperature in °C setting and the value of tempo (in
seconds, which corresponds to the maximum heating time) with 0 seconds = no tempo.
From this screen you can then:
• Start the heater...
• Start the button "M". IND: V9_2018_AD_V1 the PB150M has 3 managed menus in a circular manner
through the "M" button:
• 1 press "M" takes you on the selection of the active program button menu + and - to navigate through
available programs and V to validate the selection. The 'R' button to exit the Menu mode to return to
the main screen.
• 1 additional support on the "M" button takes you to the menu to change the active program. To change
a program must then press 'V' then choose a temperature setting via the buttons + and-, press 'V' then
choose a value of tempo via the buttons + and -, press 'V' to save your changes and press again knew r
'V' to return to the main screen with the new schedule. At each step, press 'R' to go back.
• 1 additional support on the "M" button takes you to the language selection menu. Button + and - to
navigate through the available languages and V to validate the selection. The 'R' button to exit the Menu
mode to return to the main screen. From these commands you can so change the x programs you need
(attention to the fact that change a program to him have selected beforehand) and then select as
needed.
