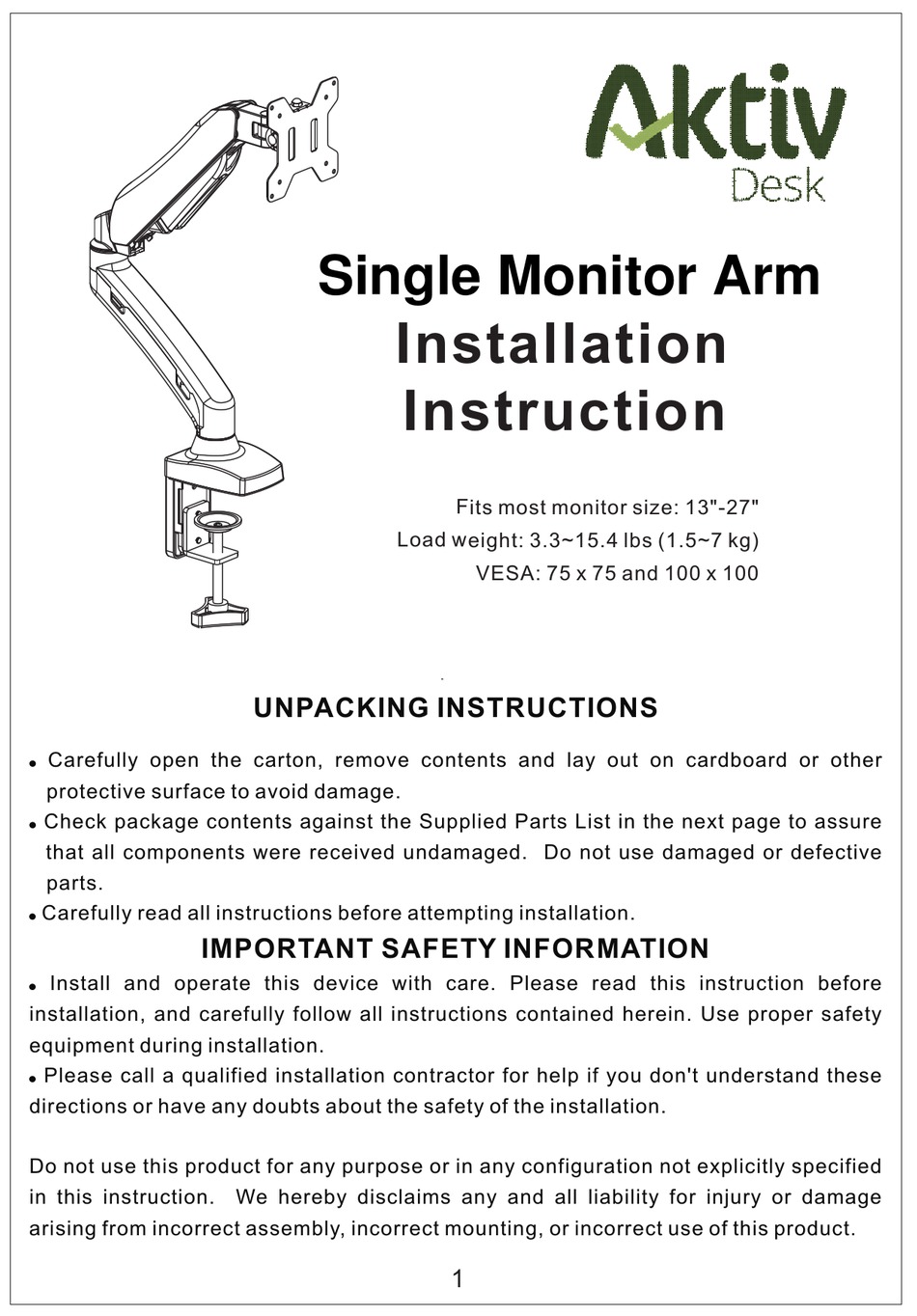

Aktiv Desk GS-001-DESK Installation Instruction

Single monitor arm

Advertisement

Quick Links

Carefully open the carton, remove contents and lay out on cardboard or other
!
protective surface to avoid damage.
Check package contents against the Supplied Parts List in the next page to assure
!
that all components were received undamaged. Do not use damaged or defective
parts.
Carefully read all instructions before attempting installation.
!

IMPORTANT SAFETY INFORMATION

Install and operate this device with care. Please read this instruction before
!
installation, and carefully follow all instructions contained herein. Use proper safety
equipment during installation.
Please call a qualified installation contractor for help if you don't understand these
!
directions or have any doubts about the safety of the installation.
Do not use this product for any purpose or in any configuration not explicitly specified
in this instruction. We hereby disclaims any and all liability for injury or damage
arising from incorrect assembly, incorrect mounting, or incorrect use of this product.
Single Monitor Arm
Installation
Instruction
Load weight: 3.3~15.4 lbs (1.5~7 kg)

UNPACKING INSTRUCTIONS

F its most monitor size: 13"-27"
VESA: 75 x 75 and 100 x 100
1
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS-001-DESK and is the answer not in the manual?

Questions and answers

Summary of Contents for Aktiv Desk GS-001-DESK

  • Page 1 English Single Monitor Arm Installation Instruction F its most monitor size: 13"-27" Load weight: 3.3~15.4 lbs (1.5~7 kg) VESA: 75 x 75 and 100 x 100 UNPACKING INSTRUCTIONS Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage.
  • Page 2 Supplied Par ts List (1) Single Arm Set-a (1) C-clamp-b (1) C-clamp Brace-c (1)Cable Guide-d (1)Metal Plate-e (1)M8x100 Bolt-f (1)Support Plate-g (1)Butterfly Nut-h (5)M6x10 Bolt-i (4)M4x12 (1)Soft Pad-j (4)M4x30 Bolt-l Thumb Bolt-k (4)M4 Spacer-m (1)Allen Key-n...
  • Page 3 C-clamp Installation/Install Mount at Table Edge Step 1A 0-82mm Warning: Ensure screws are Position 1: 0-52mm secured firmly. Position 2: 0-82mm Warning: Ensure screws are secured firmly.
  • Page 4 Existing/Self Drilled Grommet Hole Installation Step 1B Warning: Ensure screws are secured firmly. Min 8mm Warning: Ensure screws are secured firmly.
  • Page 5 Step 2 Attaching the VESA Plate to the Monitor For Monitor with Flat Back For Monitor with Curved or Recessed Back Step 3 Sliding the Monitor onto the Head of Single Arm Set Security Nut Slide the monitor onto the head of Install the Security Nut.
  • Page 6 Setting the Tilt Angle Position Step 4 Adjusting the Torque of Gas Spring Step 5 Adjust the torque of gas spring according to the weight of your monitor. If your monitor can not stay in the lower position, turn the grub screw clockwise(-). If your monitor can not stay in the higher position, turn the grub screw counterclockwise(+).
  • Page 7 Managing the AV Cables Step 6 Store allen keys for future use Technical Drawings(C-clamp and Grommet) Finish...
