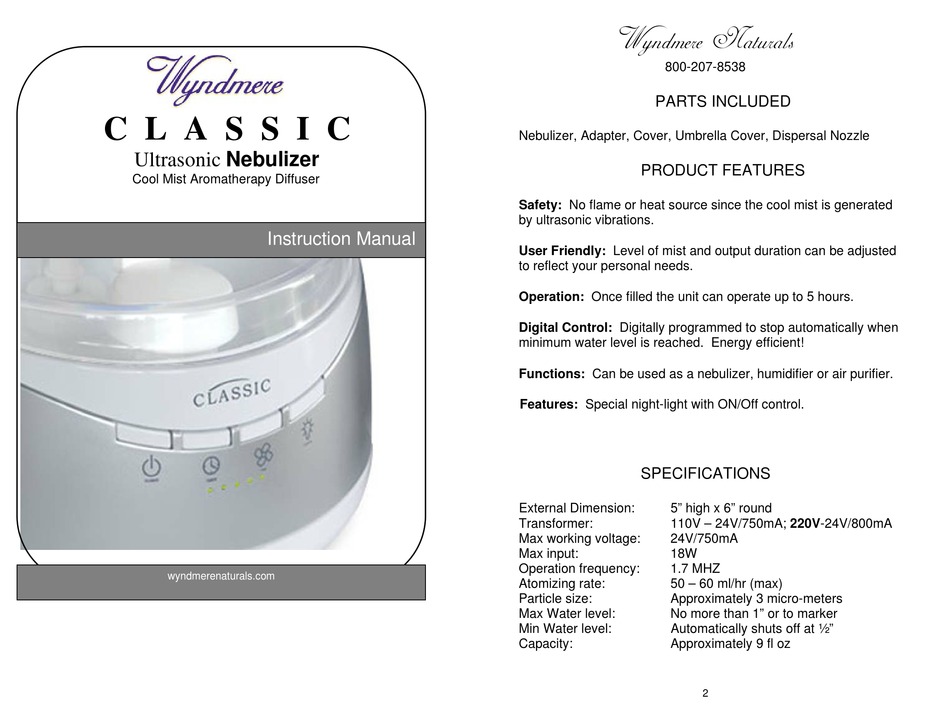

C L A S S I C
Ultrasonic Nebulizer
Cool Mist Aromatherapy Diffuser
Instruction Manual
wyndmerenaturals.com
Wyndmere Naturals
800-207-8538
PARTS INCLUDED
Nebulizer, Adapter, Cover, Umbrella Cover, Dispersal Nozzle
PRODUCT FEATURES
Safety: No flame or heat source since the cool mist is generated
by ultrasonic vibrations.
User Friendly: Level of mist and output duration can be adjusted
to reflect your personal needs.
Operation: Once filled the unit can operate up to 5 hours.
Digital Control: Digitally programmed to stop automatically when
minimum water level is reached. Energy efficient!
Functions: Can be used as a nebulizer, humidifier or air purifier.
Features: Special night-light with ON/Off control.
SPECIFICATIONS
External Dimension:
5" high x 6" round
Transformer:
110V – 24V/750mA; 220V-24V/800mA
Max working voltage:
24V/750mA
Max input:
18W
Operation frequency:
1.7 MHZ
Atomizing rate:
50 – 60 ml/hr (max)
Particle size:
Approximately 3 micro-meters
Max Water level:
No more than 1" or to marker
Min Water level:
Automatically shuts off at ½"
Capacity:
Approximately 9 fl oz
2
Advertisement
Table of Contents
Summary of Contents for Wyndmere Classic
- Page 1 Wyndmere Naturals 800-207-8538 PARTS INCLUDED C L A S S I C Nebulizer, Adapter, Cover, Umbrella Cover, Dispersal Nozzle Ultrasonic Nebulizer PRODUCT FEATURES Cool Mist Aromatherapy Diffuser Safety: No flame or heat source since the cool mist is generated by ultrasonic vibrations.
- Page 2 COMPONENT DESCRIPTION OPERATING INSTRUCTIONS Remove the Cover and Dispersal Nozzle. Swivel Dispersal Nozzle Position the nebulizer in the desired location before filling with water. This will help prevent water from overflowing into the interior where the electrical Water Level Sensor grid resides.
- Page 3 SAFETY INSTRUCTIONS TROUBLESHOOTING/ Solving Problems 1. Please follow the instructions to operate the product. PROBLEM SOLUTION 2. Use only the adapter supplied to operate the unit. • The unit does Check that the power supply is securely 3. Do not fill above the water level marker. Over-filling may not power on or plugged into the socket at the rear of the unit.
