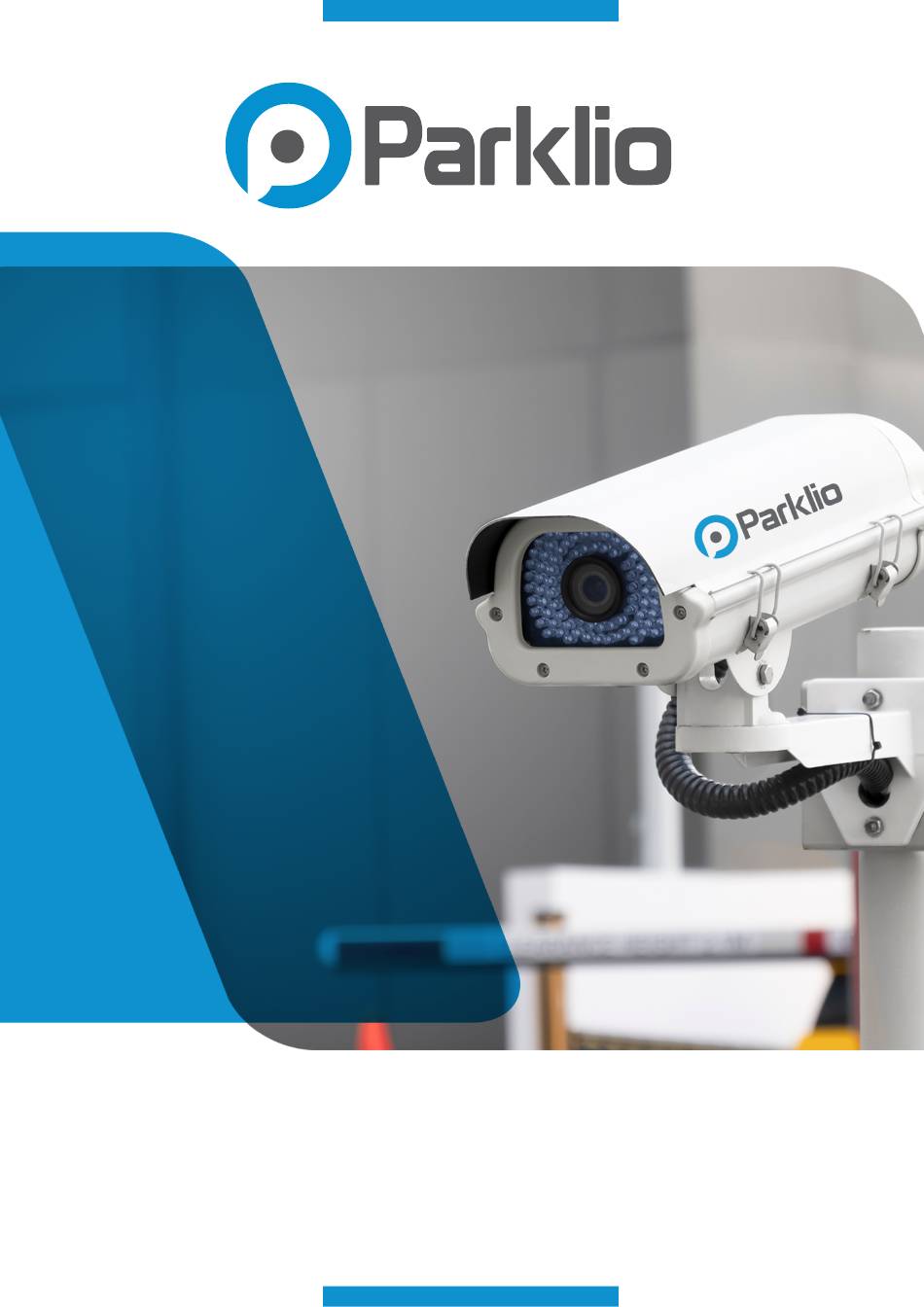

PARKLIO™ ANPR
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PARKLIO ANPR and is the answer not in the manual?

Questions and answers

Summary of Contents for Amplifico PARKLIO ANPR

  • Page 1 PARKLIO™ ANPR USER MANUAL...
  • Page 2 The User Manual will help you use your product quickly and safely. Information contained in this manual is subject to change without notice. Trademarks Parklio™ is a trademark of Amplifico d.o.o. Other brand and product names are registered trademarks or trademarks of their respective holders.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. Safety warnings.....................3 2. Camera Installation....................5 2.1. Before You Start........................5 2.2. Lens Selection........................5 2.3. Installation Angle........................6 2.4. Installation height and distance................6 2.5. Installation of the camera....................7 2.6. Controlling a device......................13 2.7. Generic device........................13 2.8. Parklio Devices........................14 3. Camera Setup.......................15 3.1.

  • Page 4: Safety Warnings

    1. Safety warnings This section contains safety instructions that will help to protect you from risk of injury or property damage. Failure to follow these instructions will invalidate all warranties. • Do not use the ANPR camera, if you have not read and understood the operat- ing instructions before.
  • Page 5 PARKLIO (AMPLIFICO D.O.O.) HAS THE RIGHT TO MODIFY THE DEVICE WITHOUT PREVIOUS NOTICE. PARKLIO (AMPLIFICO D.O.O.) DECLINES ANY RESPONSIBILITY FOR DAMAGE OR INJURY TO PEOPLE OR THINGS CAUSED BY IMPROPER USE OR WRONG INSTALLATION. THE APPLIANCE HAS BEEN ESTABLISHED ACCORDING TO ALL VAL- UENT SAFETY CRITERIA AND STANDARDS.

  • Page 6: Camera Installation

    2. Camera Installation NOTE: If you are unsure how to properly install the ANPR camera, you can al- ways schedule a video call with us email. Our team will explain in detail how to install ANPR camera for the optimal license plate reading. 2.1.

  • Page 7: Installation Angle

    Select a proper lens according to the table below. The identification distance is based on the camera’s focal length. Min. Max. Identification Identification Camera Lens (mm) Scene Distance (m) Distance (m) 11,2 2.8 - 12 Entrance Camera Road 8 - 32 Traffic 2.3.

  • Page 8: Installation Of The Camera

    2.5. Installation of the camera: Before installing the camera read the quick installation guide included in the camera box. The camera package should contain the following items: 1x ANPR Camera 1x QR Code 8x Waterproof tape 4x Mounting screws with dowels 1x Cable gland 1x Allen wrench 1x Screw terminals...
  • Page 9 Wall Mount Option To install the camera on a wall follow the instructions illustrated below:...
  • Page 10 Pole Mount Option For mounting the camera to a pole a pole mounting kit is needed. The pole mount- ing kit is not included with the camera. To mount the camera to a pole follow the instructions included with the pole mounting kit.
  • Page 12 Positioning the camera The camera can be rotated by unlocking the mount by using the provided security screw wrench.

  • Page 14: Controlling A Device

    2.6. Controlling a device To enable the opening of a parking access control device (gate, chain, bollard, ...) or other devices, connect the camera ALARM1 output (marked as 4&5 in the image below ) relay to the device’s OPEN command input. 2.7.

  • Page 15: Parklio Devices

    2.8. Parklio Devices Parklio Gate: Connect the camera ALARM terminals (terminals 1A and 1B) to START1 (1) and COM (6) terminals on the Gate control electronics. Note: When using the camera, it is recommended to enable automatic closing of the gate Parklio Bollard: Connect the camera ALARM terminals (terminals 1A and 1B) to LS (15) and COM (18)

  • Page 16: Camera Setup

    3. Camera Setup 3.1. Prerequisites If the network has a firewall enabled you may need to enable the camera to access the remote hosts it is necessary. The list of services is provided below: Please keep in mind that the hosts can resolve to multiple IP addresses, which can change at any time. 3.2.
  • Page 17 In the SADP tool search the network for available devices: Once the SADP tool is open any cameras that have not been setup will appear as Inactive. • To activate the camera, select the inactive camera and the Activate the Device window will appear on the right.
  • Page 18 Once the password recovery method has been selected, the necessary fields must be filled out, and the changes must be saved by clicking Confirm. It is necessary to exit this window after clicking the confirm button because it does not close automatically after confirmation. After that, enable DHCP and enter the password created in the Administrator Pass- word tab before clicking Modify.

  • Page 19: Camera Web Interface

    NOTE: If a static IP address is required, the SADP tool can be used to configure a static IP address and network parameters by disabling DHCP and entering network parameters. Click the refresh button to refresh the SADP tool. NOTE: If the Ipv4 address is set to 0.0.0.0, refresh the SADP tool by clicking on refresh or disconnect and reconnect the camera’s Ethernet cable to refresh the SADP tool.
  • Page 20 camera’s default user name is always admin. From the camera’s web interface, you can add new users and change the default name. Go to VCA ▶ Road traffic ▶ Arming Schedule and Linkage Method. Select All and disable the Trigger Alarm Output by clicking on the checkmark next to the Trigger Alarm Output.

  • Page 22: Detection Area Setup

    3.4. Detection area setup The next step is to position the camera so that it faces the road where the license plates will be detected. The camera should have a clear view of the entire lane where the detection will take place. This is done by going to Live View which will open this window.
  • Page 23 The blue line is used to trigger the camera capture, whereas yellow lines mark the road. NOTE: To move the yellow and blue lines, click and hold the dots at the end of the lines. Once this is done, change the Detection mode to License Plate or Vehicle detec- tion and set the Time interval to 1 minute.

  • Page 24: Assigning Camera To Parklio™ Pms

    Assigning camera to Parklio™ PMS 4.1. Installing Parklio™ Connect To add the ANPR camera to your Parklio account, please download and install the Parklio™ Connect application. Skip this step if you already have the application installed. The application can be downloaded by scanning the following QR codes: Android Or on the following links: Android -...

  • Page 25: Login

    4.2. Login To use Parklio™ Connect for the Parklio™ ANPR camera configuration, you must be logged in. NOTE: Use your Parklio™ PMS account credentials to login to your Connect ac- count. 3. Navigate to the lots tab and select a parking lot to which the camera will be add- 4.
  • Page 26 4. Click the plus icon in the upper right corner of the screen. 5. Scan the device QR code that was received with the camera. 6. Select the type of parking device to which the camera is connected to.
  • Page 27 7. Determine the location of the camera (entrance or exit of the parking lot). 8. The device ID, URL, port, and password for the camera can be found in the Setup credentials. Before closing the window it will be necessary to enter this information into the HIK webpage.
  • Page 28 NOTE: To view the password, click the eye icon in the password field. To remove the camera, go to My Parklios and click on the camera name in the zone where the camera was added.
  • Page 29 This will open the Device Settings. The camera can be removed by clicking the de- lete icon in the upper right corner. 9. After that, log in to the camera interface. 11. Log in and navigate to Configuration/Network/Advanced Settings/Platform Access. 12.

  • Page 30: Faq

    After entering the information click the Save button to apply changes. To test if the settings were entered correctly click on the Test button. If no error was found a Test successful message will be displayed and the camera Register status should change to Online.
  • Page 31 • Connect the camera power supply cable (or the PoE cable) while holding the re- set button. • Keep holding the reset button for 20 seconds. • Release the reset button. 2. My camera cannot get a clear image. What should I do? There are several problems that might cause a blurry image.
