Summary of Contents for SKETCHNBUILD SNB-B24

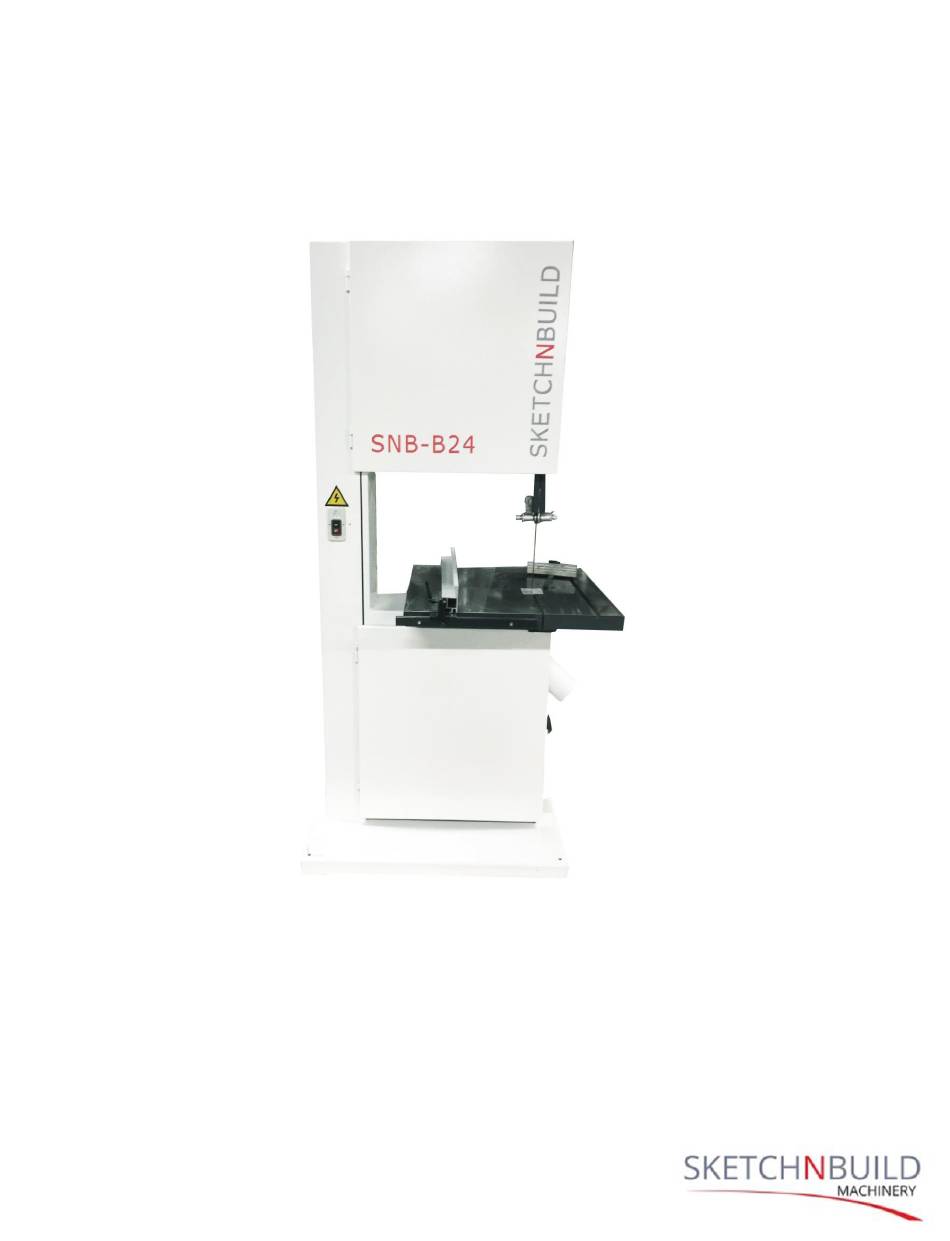

- Page 1 SNB-B24 24” BAND SAW MANUAL...
-
Page 2: Table Of Contents
SNB-B24 BANDSAW MANUAL CONTENTS 1. CONFIGURATION……………………………………………………………………………….….3 2. USE AND APPLICATION……………………………………………………………………….…4 3. SPECIFICATIONS………………………………………………………………………………….….4 4. OPERATION……………………………………………………………………………………….…...4 5. SAFETY………………………………………………………………………………………….………..5 6. TRANSMISSION……………………………………………………………………………………...7 7. TRANSPORTATION & INSTALLATION………………………………………………………7 8. MAINTENANCE………………………………………………………………………………….……7 9. TROUBLESHOOTING………………………………………………………………..…………….7 10. APPENDIX & BEAR LIST…………………………………………………………….…………….8 11. ELECTRICAL CONFIGURATION……………………………………….……………………….9 CAUTION: Read these instructions carefully before turning on the machine. -
Page 3: Configuration
SNB-B24 BANDSAW MANUAL 1. CONFIGURATION 1. Machine Body 2. Top Saw Wheel 3. Saw Blade Guide 4. Working Table 5. Bottom Saw Wheel 6. Safety Cover 7. Brake System 8. Electrical 9. Saw Blade 10. V-Blade 6/2016... -
Page 4: Use And Application
(d) Saw Wheel Diameter---------------------------------------24” inches (600mm) (e) Table Tilt Angle-----------------------------------------------0-20° 4. OPERATION 1. Before operating the SNB-B24, please ensure that all run parment are well prepared. 2. First, pull the blade over the top pulley, turn the knob slightly to stretch blade. Check that the teeth of the blade are facing the cutting direction and that the blade passes between each guide. -
Page 5: Safety
SNB-B24 BANDSAW MANUAL 3. Adjusting Saw Guides: Turn pulleys round by hand until saw blade passes through the two guides, then adjust the height of the guide. Make the roller higher than the work piece. The distance between the rear roller and the back of the blade must be about 0.5-1mm (Diag. - Page 6 SNB-B24 BANDSAW MANUAL 4. DO NOT USE IN HAZARDOUS OR DANGEROUS ENVIRONMENTS. Do no operate machine in damp, wet locations or where any flammable or noxious fumes may exist. Keep work area well lit. 5. KEEP CHILDREN, VISITORS and PETS AWAY. All children, visitors and pets should be kept away and at a safe distance from work area.
-
Page 7: Transmission
SNB-B24 BANDSAW MANUAL 19. NEVER ALLOW UNSUPERVISED OR UNTRAINED PERSONNEL TO OPERATE THE MACHINE. Make sure any instructions given in regards to the operation of the machine is safe and clearly understood. 6. SAFETY The saw blade runs by the pulleys turning. The motor is fitted on the rear of the machine and power is transmitted with the aid of the V-Belt. -
Page 8: 10. Appendix & Bear List
SNB-B24 BANDSAW MANUAL Feeding speed is too fast Adjust to suitable feed speed. Sawing not straight 1) Adjust Fence 2) Check the teeth 10. APPENDIX & BEAR LIST Appendix Model Standard Quantity Position Saw Blade 25x0.9x4400 Main Machine V-Belt B-1250... -
Page 9: 11. Electrical Configuration
SNB-B24 BANDSAW MANUAL 11. ELECTRICAL 6/2016...
