Summary of Contents for DaytonAudio AS-1

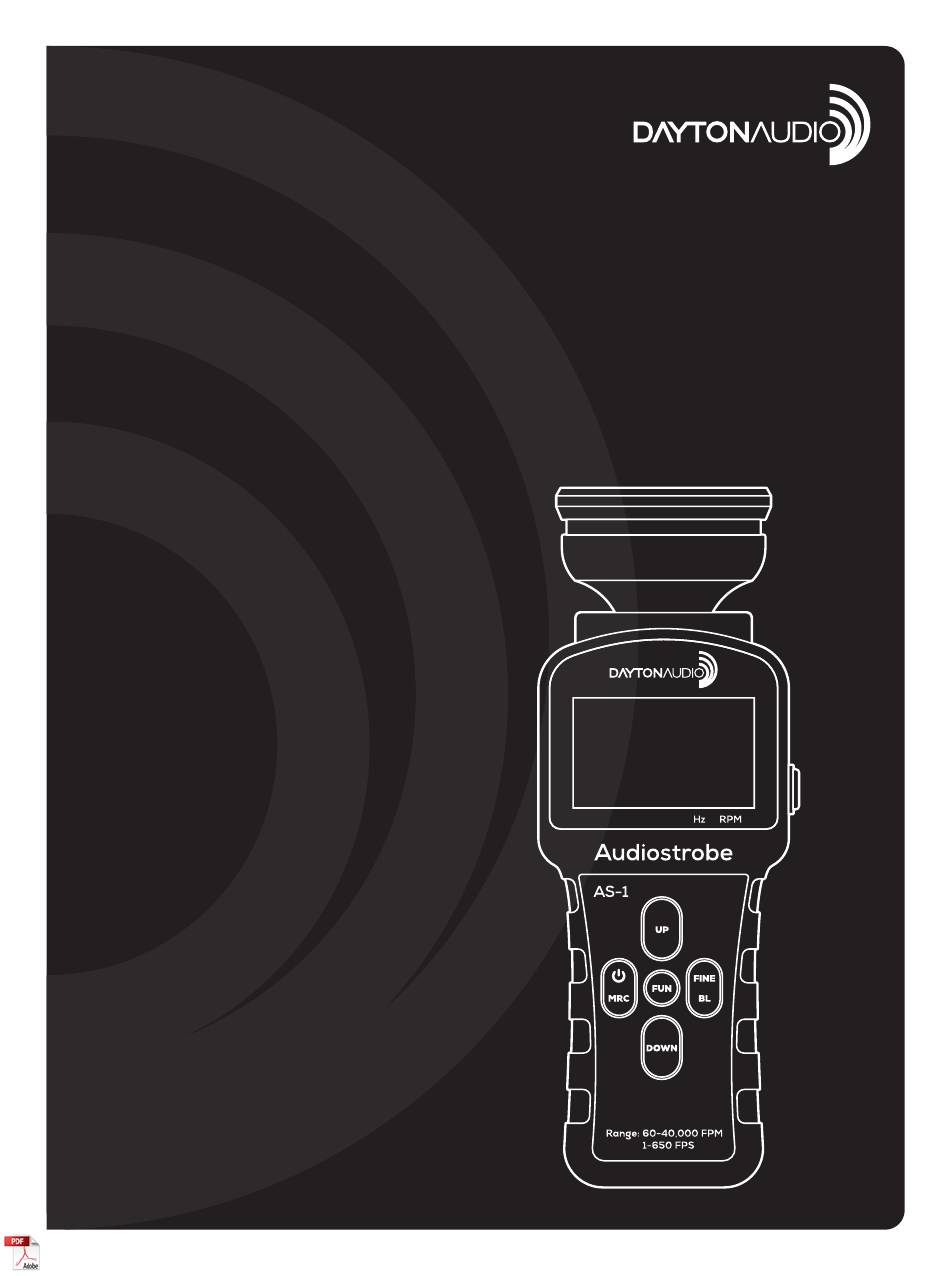

- Page 1 AUDIOSTROBE HANDHELD DIGITAL STROBOSCOPE Model: AS-1 User Manual...
- Page 2 36 super bright LEDs with total output of 1000 lumens. The Dayton Audio AS-1 can often help identify the cause of response defects and other useful information of individual drivers as well as complete loudspeaker systems. These include but are certainly not limited to the following: • non-linearity e.g., rocking motions of the cone...
- Page 3 * Dual-scale tuning: single-step adjustment in coarse or fine tuning (Flashes Per Minute mode only) and continuous adjustment (course/fine tuning). * Automatic power management conserves batteries by turning off the AS-1 after sitting idle for approximately 7 minutes * Low voltage indicator: the device will automatically indicate when the power supply voltage is lower than required.
- Page 4 3. Measuring symbol, appears when measurement is in use. 4. Frequency value in FPS or FPM. 5. When indicated the AS-1 is in Flashes Per Minute mode. 6. When indicated the AS-1 is in Flashes Per Second mode. 7. Stored measurement data.
- Page 5 V. Device Description A. Flash Light source B. LCD C. Strobe light button D. Value increase button E. MEM button; FPM/FPS convert F. LCD backlight button G. Power switch, data retrieval button Coarse / fine-tuning switch button H. Value decrease button...
- Page 6 VI. Operation 1. Power on/off: Open the battery compartment cover on the back of the shell, install batteries. Long press the power button to turn the unit on or off. After 3 seconds, the device will start and the initial value of 4000 FPM will be displayed. If measurement data has been stored after previous use, the latest measurement data stored will be displayed.
- Page 7 8. Data retrieval: To retrieve the data stored in the device, press the “READ” button, until your desired preset is recalled. Up to 10 pieces of frequently used data can be stored in the device. Every time you start the device, the latest value stored in the device will be displayed. 9.
- Page 8 5-Year Limited Warranty See daytonaudio.com for details 705 Pleasant Valley Dr. daytonaudio.com tel + 937.743.8248 Springboro, OH 45066 info@daytonaudio.com Dayton Audio ® Last Revised: 8/3/2022...
