INSTRUCTION MANUAL
18V CORDLESS STRING TRIMMER
Model:ELG03

Advertisement

loading
Need help?

Need help?

Do you have a question about the ECOMAX ELG03 and is the answer not in the manual?

Questions and answers

Summary of Contents for Alton ECOMAX ELG03

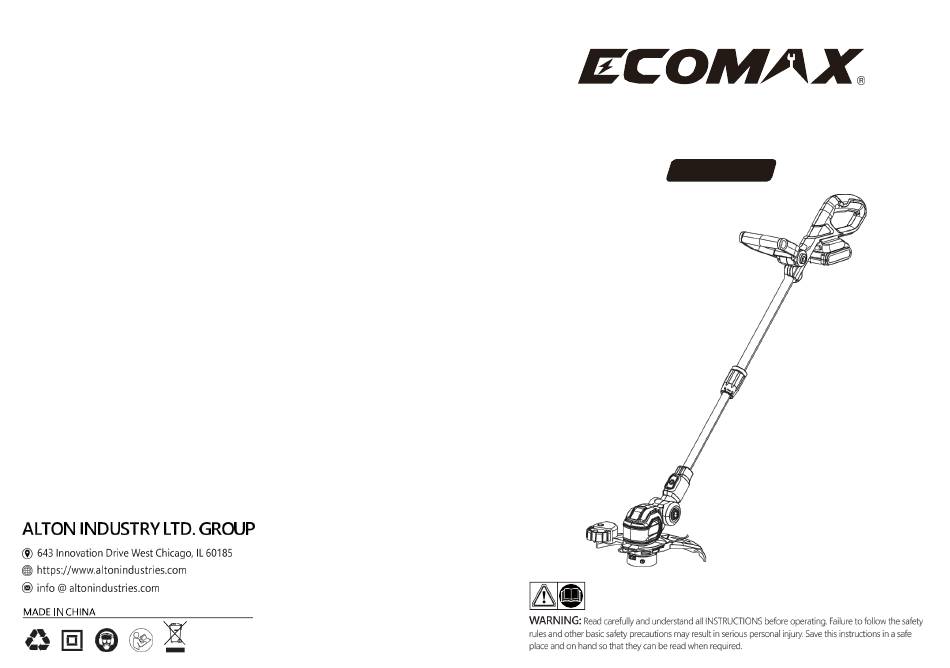

  • Page 1 INSTRUCTION MANUAL 18V CORDLESS STRING TRIMMER Model:ELG03...

  • Page 2: Table Of Contents

    CONTENTS PURPOSE DESCRIPTION OF SYMBOLS SYMBOLS ACCESSORY INFORMATION TECHNICAL DATA COMPONENTS OPERATION CHARGER & BATTERY...

  • Page 3: Purpose

    PURPOSE Do not use saw blades. This machine is used to cut grass, light weeds, and other similar vegetation at or around ground level. The cutting plane must be approximately parallel to the ground surface. You cannot use the machine to cut or chop hedges, shrubs, bushes,flowers and compost.

  • Page 4: Symbols

    SYMBOLS TECHNICAL DATA Voltage 18V DC The label on your tool may include the following symbols. The symbols and their definitions are as follows. No load speed 7500±10%min Voltage Cutting line diameter 0.06inch( Ф1.6mm ) Ampere( Current) Cutting path diameter 12inch( Ф300mm ) Watt(Power) 3.68lbs( 1.67Kg )

  • Page 5: Components

    COMPONENTS OPERATION WARNING! Before any replacements, switch the tool off, wait for it to Aluminum tube lock turn knob Switch button come to a standstill, and take the battery out of the tool. Aluminum tube( bottom) Safety lock button Guard WARNING! It is not necessary to assemble the machine.
  • Page 6 3. INSTALL THE BATTERY PACK 5. CONTROLS 1） . Align the lift ribs on the battery pack with the grooves in the battery 1） . As shown in Figure the left hand operates the auxiliary handle"4" and the compartment. right hand controls the rear handle "3". 2）...
  • Page 7 7. STOP THE MACHINE 10. CUTTING TIPS Tilt the machine toward the area to be cut. Use the tip of the cutting line to Release the switch button 2 in Figure 6. cut grass, as shown in figure 9 Move the machine from right to left to prevent thrown debris toward the 8.
  • Page 8 13. AUXILIARY HANDLE ANGLE ADJUSTMENT Handle Rotation Button Press the auxiliary handle rotation button in Figure 13 below. Turn the auxiliary handle to the Angle you want. Work Head Rotation Button ( Figure 10 ) ( Figure 11 ) 12. REPLACING THE SPOOL Auxiliary handle rotation button WARNING! Risk of injury! When using the cutting head upright, particular care should be taken.

  • Page 9: Charger & Battery

    15. MAINTENANCE CHARGER & BATTERY CAUTION! Do not let brake fluids, gasoline, petroleum-based materials CHARGING THE BATTERY touch the plastic parts. Chemicals can cause damage to the plastic, and 1. REMOVING THE BATTERY make the plastic unserviceable. If the Battery does not slide into the charger easily, do not force it. Instead, CAUTION! Do not use strong solvents or detergents on the plastic slide the Battery out of the charger again, check the top of Battery and the tool housing or components.
  • Page 10 NOTE: ABOUT BATTERY CHARGING: ADDITIONAL SAFETY NSTRUCTIONS FOR YOUR BATTERY CHARGER The battery should be charged at ambient temperatures between 10 and 0 1 ） 40°C. (ideally around 20°C). 01. Before charging, read the instructions. After discharging the battery, please wait 10 minutes for the battery 0 2 ）...
  • Page 11 INSTRUCTIONS Use only as described in this manual. Use only manufacturer�s recommended attachments. Replace the damaged parts. If appliance is not working as it should, has been dropped, damaged, left Tighten the bolts. outdoors, or dropped into water, return it to a service center. Speak to a person of an approved service center.
  • Page 12 BATTERYOPERATED POWER TOOLS CHILD SAFETY Tragic accidents can occur if the operator is not aware of the presence of Do not use battery-operated appliance in rain. children. Turn off all controls before removing the battery. Keep children out of the working area and under the watchful care of a Recharge only with the charger specified by the manufacturer.
  • Page 13 Separate collection of used machine and packaging let you recycle 1. Remove the trimmer materials and use them again. Use of the recycled materials helps head from the grass 2. The motor will recover prevent environmental pollution and decreases the requirements for to work as soon as the load raw materials.
  • Page 14 WARRANTY Cut with the tip of the line, avoid stones walls and The line keeps The machine is used other hard objects. breaking. incorrectly. Advance the cutting line regularly to keep full cutting width. 1. Cut tall grass from the The grass winds top down.
