Summary of Contents for FIAMA SERVO3M

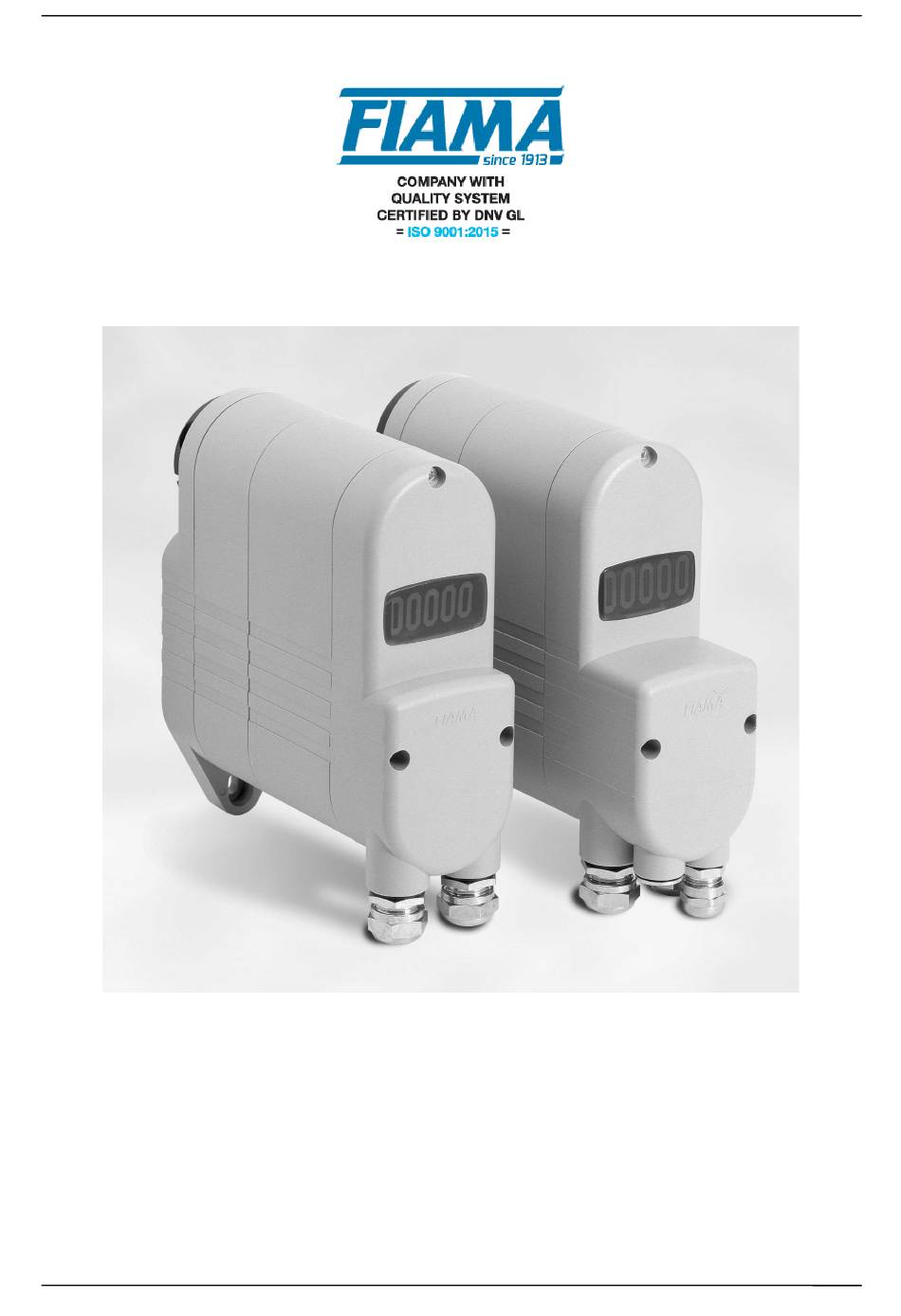

- Page 1 Positioning unit SERVO3M USER AND MAINTENANCE MANUAL Date: 08/02/21 File: Servo3M_M12_ing.doc page 1/8...
- Page 2 Do not use hydrocarbon solvents (petrol, thinners, etc.): the using of these products could affect the proper functioning of the instrument. Repairs should be done only and exclusively at the FIAMA technical assistance centre. Assistance request procedure For any kind of technical assistance request, contact the sales department of the Manufacturer directly indicating the information given on the identification plate, the number of hours used and the type of defect.

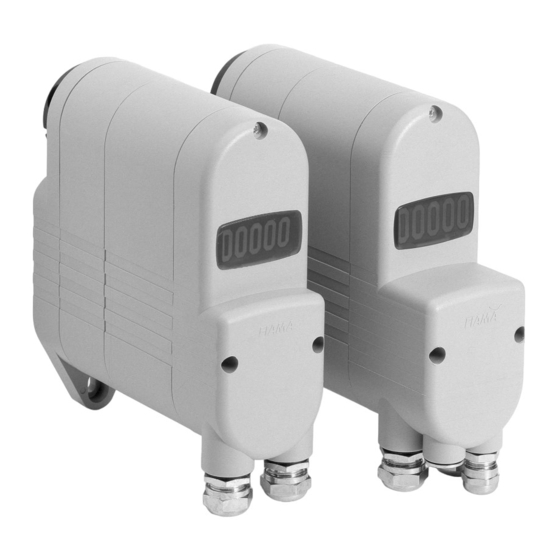

- Page 3 Positioning unit Description The SERVO.M positioning unit comprises a DC geared motor with microprocessor control of the drive gear and an incremental position transducer (encoder) or absolute position transducer (precision potentiometer) connected to the output shaft with interface for field bus and display with 5 digits. It creates, in a single compact device, a complete system for axis control axis where the position to reach is communicated by bus and a PID type controller is present.
- Page 4 Positioning unit Power supply a) Before connecting the unit, check that the power supply tension is within the permitted limits and that it corresponds to the one indicated on the tag. b) Carry out the electrical connections with the instrument disconnected. c) For the power line to instruments and sensors, a power supply line separate from that of the power is required : it is necessary to use an isolating transformer.
- Page 5 Positioning unit PROFIBUS VERSION MALE FEMALE M12x1 PROFIBUS 1 = not connected 2 = PROFIBUS A B1÷B2 = PROFIBUS B line 3 = not connected A1÷A2 = PROFIBUS A line 4 = PROFIBUS B MODBUS VERSION MALE FEMALE M12x1 PROFIBUS 1 = not connected 2 = –...
- Page 6 Positioning unit POWER SUPPLY +24VDC Power supply terminal board TERMINAL CONNECTION BOARD 24V power supply GND power supply Power connector M12-T male as viewed externally with exit shaft directed downwards M12T PIN WIRE CONNECTION CONNECTOR COLOR BROWN +24V POWER SUPPLY WHITE NOT CONNECTED BLUE...
- Page 7 Positioning unit Setting of device address and serial communication speed – MODBUS protocol The setting of baud rate is made by the dip-switch S1 (set in factory at 19200) and that of the address with dip-switch S2 (se in factory at 1). Valid addresses are from 1 to 247. By changing of address or baud rate is necessary to switch off and turn on the Servo.
- Page 8 Tel. +39 0521.672.341 - Fax. +39 0521.672.537 – e-mail: info@fiama.it - www.fiama.it FIAMA srl is not responsible for any damage to persons or things caused by tampering and improper use and in any case that is not compatible with the features of the instrument.
