ADC PG-FlexPlus FSU-571 Quick Installation Manual

PG-Flex
® Plus
The ADC PG-Flex System Controller Card manages DS0
cross-connections between T1 interface cards in the Universal
Access Platform (UAP) system.
R E
EQUIRED QUIPMENT
• anti-static wrist strap
• flat-head screwdriver
I S
NSTALLING THE YSTEM
C
ARD
The System Controller Cards can only be installed in slots 11 and
12 of the Universal Access Platform (UAP) system.
If not installing a redundant sytem controller card, the sin-
gle system controller card must be installed in slot 11.
1. Put on an anti-static wrist strap and plug it into an ESD
grounding jack on the UAP chassis. See Operating Company
practices for ESD grounding locations.
2. Remove the System Controller Card's slot cover(s) from the
slot in which you want to install the card.
a. Loosen the thumbscrews at the top and bottom of the slot
covers.
b. Remove the slot covers.
FSU-571 System Controller Card – Quick Installation Guide
Plus™
3. Open the retaining latch on the front of the card.
4. Align the card with the card guide and carefully slide it into
the slot.
5. Simultaneously close the top and bottom ejector levers to
install the card in the slot.
6. Secure the card in the chassis by tightening the thumbscrews
with a flat-head screwdriver.

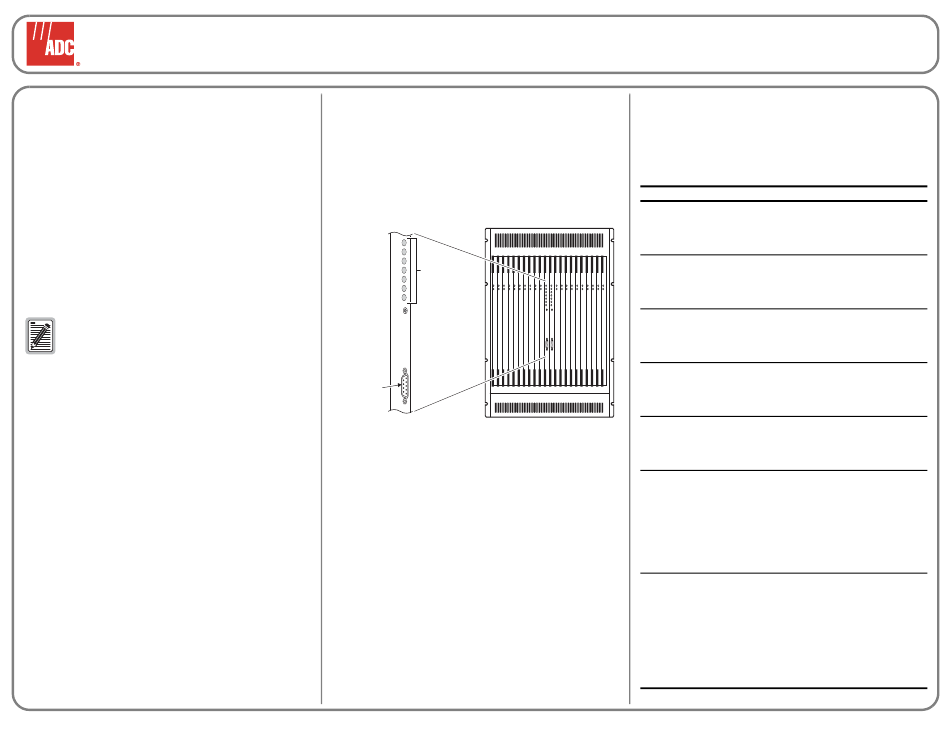

C
ONTROLLER
Craft port
(DB-9 connector)
Fail
Active
Critical
Status
Major
LEDs
Minor
Misc
ACO
ACO
Button
Page 1 of 2
S C C
YSTEM ONTROLLER ARD
The System Controller Card LEDs on the front of the active sys-
tem controller card indicate the overall status of the UAP. The
following table describes the system controller card LEDs. See
the figure left for location of the system controller card LEDs.
LED Color State Description
No failures exist on the system
Off
controller card.
FAIL Red
At least one card failure exists on
On
the system controller card.
The system controller card is not
Off
active.
ACT Green
The system controller card is
On
active.
No outstanding critical alarms exist
Off
in the UAP.
CRIT Red
At least one outstanding critical
On
alarm exists in the UAP.
No outstanding major alarms exist
Off
in the UAP.
MAJ Red
At least one outstanding major
On
alarm exists in the UAP.
No outstanding minor alarms exist
Off
in the UAP.
MIN Yellow
At least one outstanding minor
On
alarm exists in the UAP.
No outstanding miscellaneous
alarms exist in the UAP.
Off Miscellaneous alarms pertain to
power and fan problems and user-
MISC Yellow
configured external alarms.
At least one outstanding
On miscellaneous alarm exists in the
UAP.
No alarm condition exists or the
Alarm Cut-OFF (ACO) button has
Off
not been pressed during a current
alarm condition.
ACO Green
The ACO cutoff button has been
pressed during an alarm condition;
On LED remains green until there is a
status change in the critical, major,
or minor alarm.
LED
S
