DANGER

If you smell gas:

1.Shut off gas to the appliance.

2.Extinguish any open flame.

3.If odor continues, keep away from the appliance and

immediately call your gas supplier or fire department.

WARNING

Do not store or use gasoline or other flammable vapors

and liquids in the vicinity of this or any other appliance.

An LP-cylinder not connected for use shall not be

stored in the vicinity of this or any other appliance.

WARNING

Improper installation, adjustment, alteration, service

or maintenance can cause property damage, injury or

death.

Read and follow all the warnings, installation,

operating and maintenance instructions thoroughly

before assembling and using this equipment.

Failure to follow these instructions could result in fire

or explosion, which could cause property damage,

personal injury or death.

WARNING

For outdoor use ONLY!

CARBON MONOXIDE HAZARD

This appliance can produce

DANGER

carbon monoxide which has no

odor.

Using it in an enclosed space can

kill you.

Never use this appliance in an

enclosed space such as a

camper, tent, car or home.

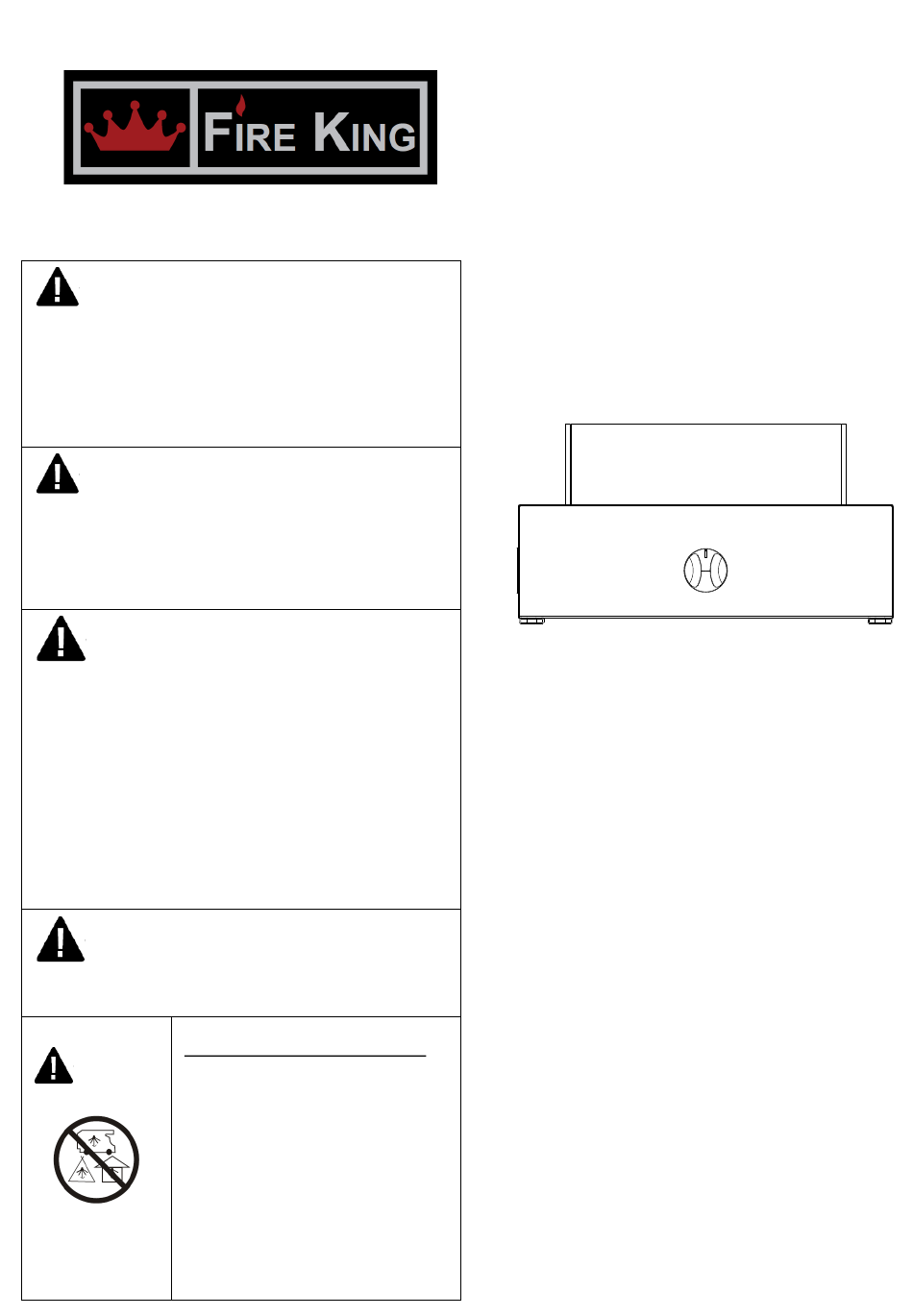

GAS TABLETOP FIRE

MODEL NO.: PG209T-A

Call Customer Service Hotline

1-855-242-6887

DO NOT RETURN TO THE STORE

Question, Problems, Missing parts?

Before running to your retailer, call our customer

service department at 1-855-CHANT-US

(1-855-242-6887) from 8:00am to 5:00pm Eastern

time, Monday through Friday.

Table of Contents

Need help?

Do you have a question about the PG209T-A and is the answer not in the manual?

Questions and answers

Summary of Contents for Fire King PG209T-A

Page 1 GAS TABLETOP FIRE DANGER MODEL NO.: PG209T-A If you smell gas: 1.Shut off gas to the appliance. 2.Extinguish any open flame. 3.If odor continues, keep away from the appliance and immediately call your gas supplier or fire department. WARNING Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
Page 2: Table Of Contents
TABLE OF CONTENTS Product Specifications........................Safety Information..........................3 Package Contents..........................6 Assembly Instructions........................7 Safety Check............................9 Lighting Instructions........................10 Care and Maintenance........................11 Troubleshooting..........................Warranty............................14 Replacement Parts list........................15 PRODUCT SPECIFICATIONS Product Specifications Overall Dimension 20.28x18.7x7.87inches Rated Heat Input 11000BTU/HR Fuel Propane-LP Gas Supply 20-Lb LP-Gas cylinder Manifold Pressure 11 inches W.C Injector Size (diameter)
Page 3: Safety Information
Fuel Gas Code, ANSI Z223.1 /NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2.  Minimum clearances from combustible material: Side-48 inches, Rear-48 inches, Ceiling-72 inches.  THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY! This product shall be used outdoors, in a ventilated space and shall not be used in any enclosed area.
Page 4 (a) With walls on all sides, but at least one permanent opening at ground level and no overhead cover. (b) Within a partial enclosure that includes overhead cover and no more than two walls. These walls may be parallel, or at right angles to each other. (c) Within a partial enclosure that includes overhead cover and no more than two walls.
Page 5  Do not use this unit if any part has been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control that has been under water. ...
Page 6: Package Contents
PACKAGE CONTENTS PARTS LIST PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Bracket Burner Pilot Box Glass beads 2KGS Knob Glass...
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Before beginning assembly of product, make sure all parts are present and compare parts with package contents list. If any part is missing or damaged, do not attempt to assemble the product. Place the glass on the inside step of the fire pit, press the glass with the bracket and lock the screw(AA) M4 X 10 Pan Head Bolt Check that the control knob (F) is turned to the OFF position before starting any assembly.
Page 8 ASSEMBLY INSTRUCTIONS Connect the tank Connect Hose & Regulator Assembly to 20lb.LP-gas cylinder (sold separately). Line up threads on fitting with those on regulator and rotate clockwise until tighten by HAND ONLY. DO NOT USE ANY HAND TOOLS TO MAKE THIS CONNECTION.
Page 9: Safety Check
ASSEMBLY INSTRUCTIONS Place glass beads CAUTION: DO NOT dump glass beads out of Packaging. Carefully place beads by hands so dust does not clog burner. CAUTION: DO NOT cover the pilot box with Glass beads. Always keep the pilot box visible.
Page 10 1. Check the control knob is in the OFF position. 2. Turn on the LP tank valve slowly. 3. Push the knob in and turn slowly to produce a spark.Once burner is lit, continue to hold the control knob for 30 seconds. Then the burner should stay lit.
Page 11: Care And Maintenance
CARE AND MAINTENANCE Cleaning Abrasive cleaners will damage this product.  Never use oven cleaner to clean any part of fire table.  Do not clean any fire table part in a self-cleaning oven. The extreme heat will damage the finish. ...
Page 12 CARE AND MAINTENANCE Inspecting This outdoor ﬁre table must be inspected regularly to insure that the product is safe to use and to extend product life. WARNING: DO NOT inspect this gas fire table until the fire is completely out. Check the burner to make sure it is securely in place.
Page 13: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Corrective Action Turn tank valve “OFF” and replace the Gas pressure is low. tank. Burner won’t light The orifice is blocked. Clear blockage. Control knob is not in “High” position. Turn control knob to “ON” Gas pressure is low. Turn tank valve “OFF”...
Page 14: Warranty
WARRANTY PROOF OF PURCHASE is required to access this warranty program, which is in effect from the date of purchase. Customers will be subject to parts, shipping, and handling fees if unable to provide proof of the purchase or after the warranty has expired. If you have any questions or problems, you can call our customer service department at 1-855-CHANT-US (1-855-242-6887) from 8:00am to 5:00pm Eastern time, Monday through Friday for assistance.
Page 15: Replacement Parts List
REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-855-CHANT-US (1-855-242-6887), 8 a.m. - 8 p.m., EST, Monday - Friday.
Page 16 REPLACEMENT PARTS LIST PART DESCRIPTION PART# Glass 209TA01 Bracket 209TA02 Ignition Pin 209TA03 Thermocouple 209TA04 Burner 209TA05 Pilot Box 209TA06 Thermal Baffle 209TA07 Fire bowl 209TA08 Table 209TA09 Foot Pad 209TA10 Knob 209TA11 Regulator & Hose 209TA12 Assembly...
