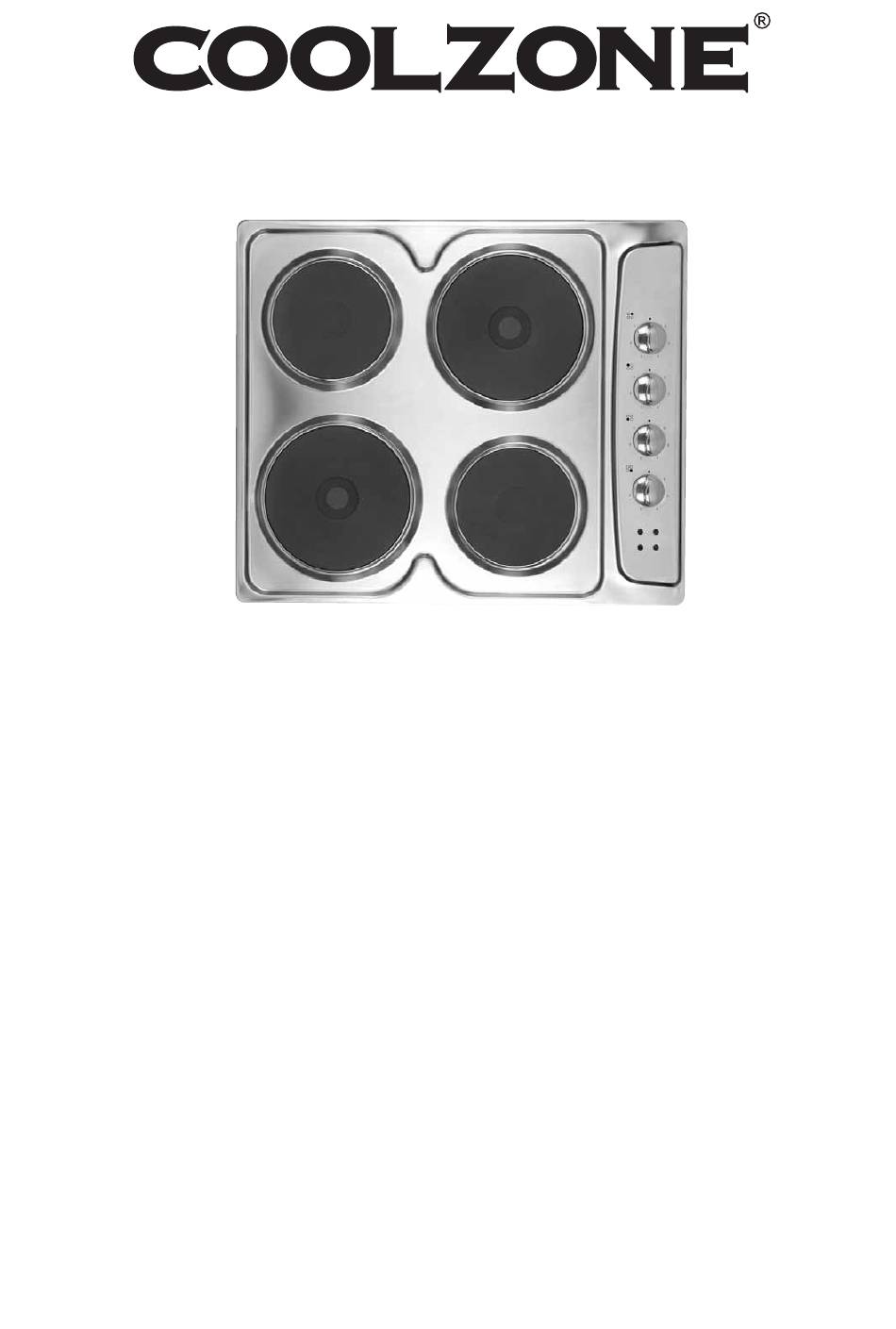

- Page 1 Built-in Electric Hob CZ55555 INSTALLATION AND OPERATING INSTRUCTIONS The product may differ from the one illustrated but the installation and operation procedure remains the same...
-
Page 2: Table Of Contents
Contents Introduction Unpacking Before Installation Location Electricity Supply Cut-out Electrical Connection Fitting the hob Preparation Safety notes Using the hob Pan types Care of hotplates Cleaning the hob Troubleshooting guide Safe hob disposal Back page Customer Helpline Back page Specification Back page... -
Page 3: Unpacking
Introduction This quality appliance has been designed to provide trouble-free service provided it is installed and maintained correctly. This hob is for domestic use only. Please read these instructions carefully before installing or using your appliance. It is advisable to keep your purchase and installation receipts with these instructions in a safe place for future reference. -
Page 4: Location
Location Position of the hob The hob must be installed into a work surface, fitted with an opening cut into the surface so that the top plate sits flush with the surface. It is best positioned directly above a 600mm wide fitted kitchen cabinet. Avoid installing the appliance next to a fridge, freezer or boiler. -
Page 5: Electricity Supply
Electricity supply Once a satisfactory location has been established, the electrical supply to the appliance must be arranged beneath the work surface. The mains voltage must correspond to that which is specified on the data plate. The supply should be from a 45 amp fused spur, with an isolator switch installed above the work surface and to one side of the unit in case of an emergency. -
Page 6: Electrical Connection
Electrical Connection The hob must be properly connected to the mains supply by a qualified electrician according to current safety regulations. This appliance must be earthed. 1. Release the cover by removing the cover screws (Figure 4). 2. Loosen the cable clamp (Figure 4). 3. -
Page 7: Fitting The Hob
Fitting the hob Once the hob has been connected to its electricity supply, it can be fitted into position as follows: 1. Place the hob upside down on an adjoining surface. 2. Fit the clips onto the hob by sliding the notched end into the slot and loosely screwing the screw into the screw-hole (Figure 6). - Page 8 Please read safety notes before using the hob • Never leave children unsupervised where the hob • Make sure you understand what the controls do before using the hob. is installed as the appliance will get hot during and after use. •...
-
Page 9: Using The Hob
Using the hob Before using your hob for the first time: Read the operating and safety instructions thoroughly If you have not already done so, follow the steps in the “Preparation” section on page 7 to burn off the protective film covering the plates. Before switching on a hotplate, make sure that the selector knob you are using corresponds to the hotplate you wish to switch on (Figure 9). -
Page 10: Pan Types
Pan types For best results and good use of energy: • Use good quality cooking pans with thick flat • Never use recessed or ridged base pans. This bases. This gives the most efficient energy wastes energy and gives a longer cooking time transfer from the hotplate •... -
Page 11: Troubleshooting Guide
Troubleshooting guide If you are experiencing problems with your hob, check the following problems and solutions below before contacting the Helpline. Solution Problem Check that: Nothing works. The main hob wall switch is switched to ON. Other appliances are working, to determine if there is general power failure. -
Page 12: Safe Hob Disposal
Safe hob disposal To help the environment, Local authority instructions should be followed for the disposal of your product This appliance/fitting is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help pre- vent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
